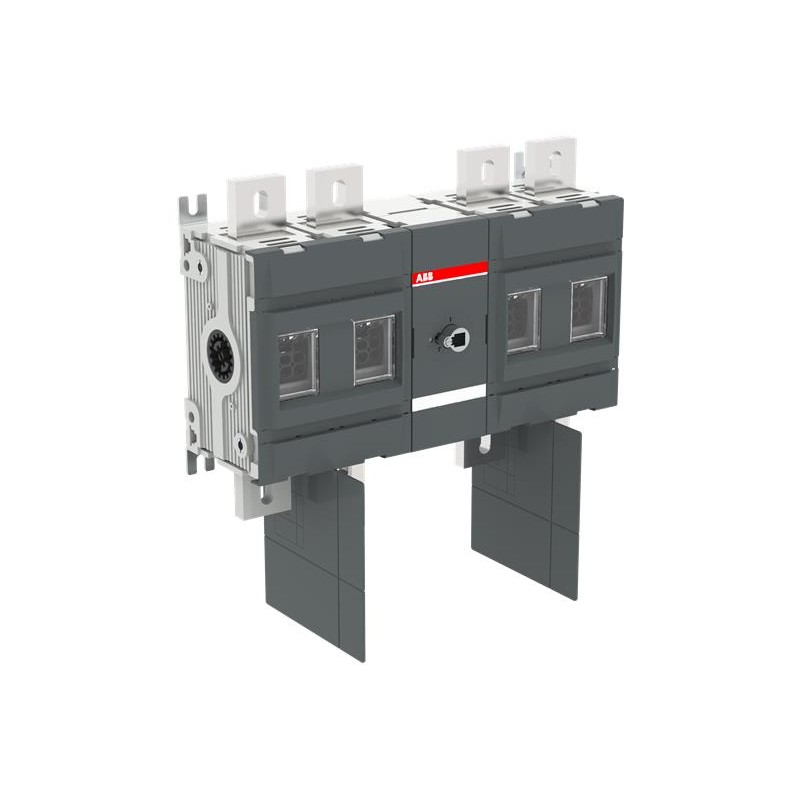

ABB OTDC1000E22 1SCA142337R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

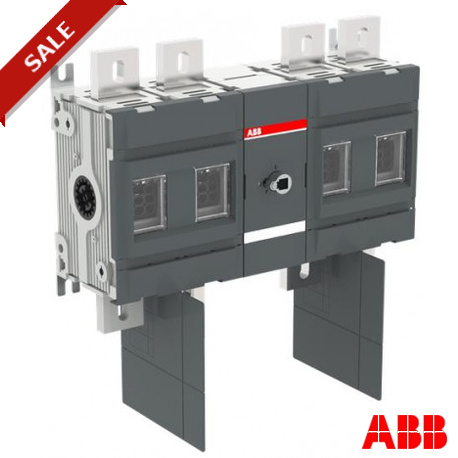

OTDC1000E22 1SCA142337R1001 ABB OTDC1000E22 DC Switch-disconnector

Reference: OTDC1000E22

Code: 1SCA142337R1001

Manufacturer: ABB

Description:

OTDC1000E22 DC Switch-disconnector
DC disconnector switch OTDC1000E22

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

OTDC1000E22 DC Switch-disconnector, Terminal bolt kit included, Handle and shaft need to be ordered separately, Base mounting, IEC 1000 VDC 1000 A

Ordering

  • Minimum Order Quantity:
    1 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC301021C0201

Dimensions

  • Product Net Width:
    414.5mm
  • Product Net Height:
    372mm
  • Product Net Depth:
    146mm
  • Product Net Weight:
    19,5kg

Technical

  • Rated Operational Current DC-21B (Ie):
    (1000 V) 1000 A
  • Conventional Free-air Thermal Current (Ith):
    q = 40 °C 1000 A
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 1000 A
  • Rated Impulse Withstand Voltage (Uimp):
    12 kV
  • Rated Insulation Voltage (Ui):
    1000 V
  • Rated Operational Voltage:
    1000 V
  • Rated Short-time Withstand Current (Icw):
    for 1 s 10 kiloampere rms
  • Power Loss:
    22 W
  • Pollution Degree:
    3
  • Handle Type:
    Handle and shaft not included
  • Switches Operating Mechanism:
    Mechanism Between the Poles
    22 (Between the Poles)
  • Operating Mode:
    Front Operated
  • Standards:
    IEC
  • Special Functions:
    No
  • Mounting Type:
    Base mounting
  • Number of Circuits:
    2
  • Number of Poles:
    4
  • Terminal Type:
    Lug terminals

Container Information

  • Package Level 1 Gross Weight:
    21 kg
  • Package Level 1 EAN:
    6417019698809

Classifications

  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector
