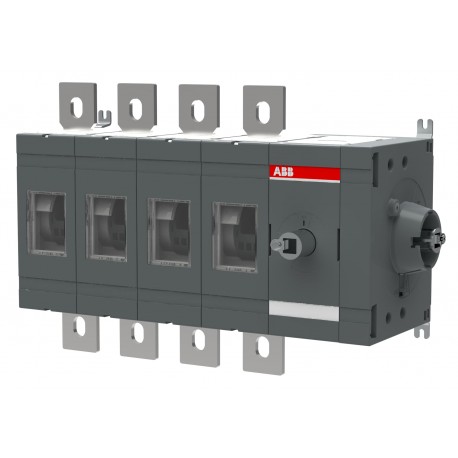

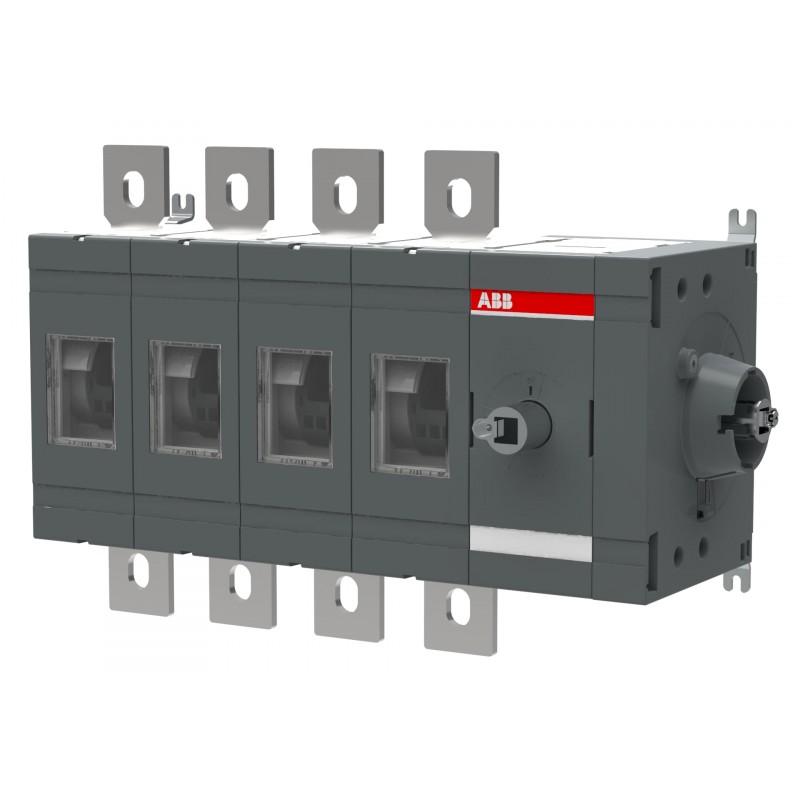

1SCA022870R5480 ABB Int. Section. control side OT630ES40

Reference: 1SCA022870R5480

Manufacturer: ABB

Description:

Int. Section. control side OT630ES40

Int. Section. Side control OT630ES40

OT630ES40 SWITCH-DISCONNECTOR

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 748,95 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC301119M0201
Environmental Information	1SCC301232D0201
Environmental Product Declaration - EPD	1SCC301284D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA	1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information	1SCC301020C0201
Instructions and Manuals	1SCC301071M0205
Mechanical Drawings	1SCC301682F0001
	1SCC301681F0001
	OT800ES40.igs
Environmental Product Declaration - EPD	1SCC301284D0201
Environmental
Degree of Protection	Front IP00
Environmental Information	1SCC301232D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	381 mm
Product Net Height	250 mm
Product Net Depth / Length	130 mm
Product Net Weight	8.5 kg
Container Information
Package Level 1 Units	box 1 piece
Package Level 1 Width	270 mm
Package Level 1 Depth / Length	420 mm
Package Level 1 Height	220 mm
Package Level 1 Gross Weight	9.2 kg
Package Level 1 EAN	6417019337432
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 630 A
Conventional Thermal Current (I_the)	Fully Enclosed 630 A
Degree of Protection	Front IP00
Distance Between Phases	Standard
Fourth Pole Position	Right Side
Fourth Pole Type	Switched - Simultaneous Function
Handle Type	Handle and shaft not included
Mechanical Durability	10000
Mounting Type	Base mounting
Number of Poles	4P
Operating Mode	Side
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out
	Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 25 W
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 630 A
	(500 V) 630 A
	(690 V) 630 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 630 A
	(500 V) 630 A
	(690 V) 630 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 630 A
	(500 V) 630 A
	(690 V) 630 A
Rated Operational Power AC-23A (P_e)	(220 ... 240 V) 200 kW
	(400 ... 415 V) 355 kW
	(500 V) 400 kW
	(690 V) 630 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-Circuit Making Capacity (I_cm)	(690 V) 80 kA
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 20 kA
Special Functions	No
Standards	IEC 60947-3
Switches Operating Mechanism	Mechanism at the End of the Switch
	40 (Right Side)
Terminal Type	Lug terminals
Tightening Torque	acc. IEC 60947-1 50 … 75 N·m
Technical UL/CSA
Tightening Torque	acc. IEC 60947-1 50 … 75 N·m
Certificates and Declarations
A2L Certificate – IEC	1SCC301337D0201
Declaration of Conformity - CE	1SCC301140D2704
DNV GL Certificate	1SCC301184D0203
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122233
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)

ETIM for 1SCA022870R5480 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value1000 V

Feature nameRated operating voltage (EF001435)

Feature value1000 V

Feature nameRated permanent current Iu (EF001389)

Feature value630 A

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value630 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value630 A

Feature nameRated short-time withstand current lcw (EF007050)

Feature value20 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value355 kW

Feature nameSwitching power at 400 V (EF009166)

Feature value355 kW

Feature nameNumber of poles (EF001391)

Feature value4

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueComplete device in housing

Feature nameSuitable for floor mounting (EF025108)

Feature valueNo

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueNo

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameInterlockable (EF006281)

Feature valueNo

Feature nameHousing colour (EF000136)

Feature valueGrey

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueBolt connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP00

Feature nameDegree of protection (NEMA) (EF011959)

Feature valueOther

Feature nameWidth (EF000008)

Feature value381 mm

Feature nameHeight (EF000040)

Feature value250 mm

Feature nameDepth (EF000049)

Feature value130 mm

DATASHEET - PDF
