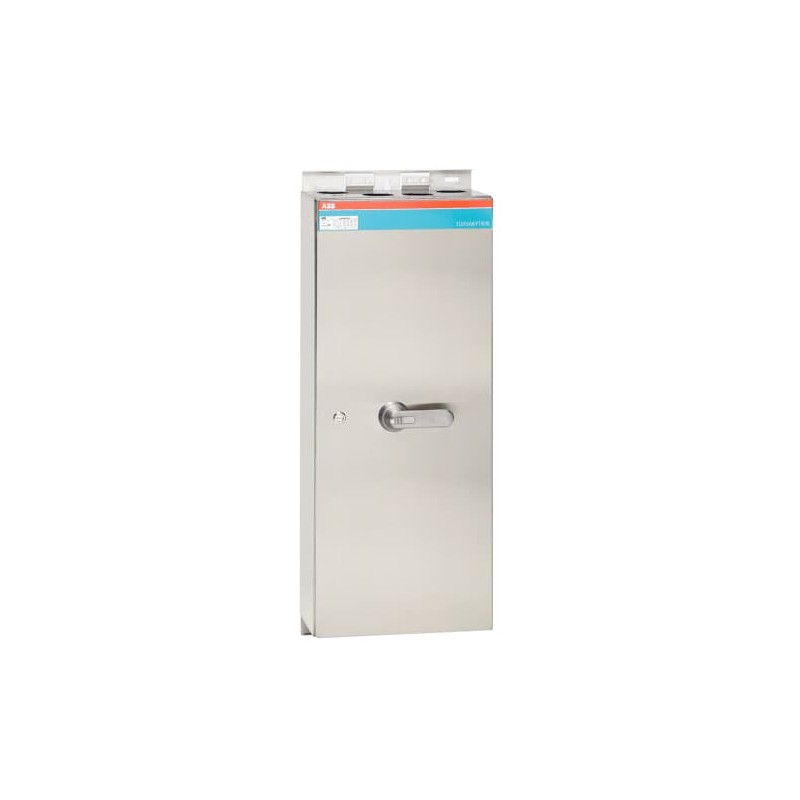

1SCA102321R1001 ABB OT630ERRR3TZ Safety switch
1SCA102321R1001
ABB
OT630ERRR3TZ Safety switch
Int. Box Disconnector OT630ERRR3TZ
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c690d492-4486-440b-95ce-09cc7407c5dc Finland |
| Simplified SCIP | 86a79cdf-5ed1-475c-8fb5-1fe68bb1b285 France |
| a05b4837-7269-463f-a2c7-abe1ee1a313e Germany | |
| 29a87417-67c1-4ab6-a7e8-30233a54b895 Poland | |
| 4de9eff6-4317-4bd6-a69d-4b2b4192250c Norway | |
| ff42d656-b8e4-4666-abc1-2b41d6e1bde8 Croatia | |
| 346ca3d8-1965-4b70-8615-10b740d39849 Hungary | |
| 8a0692f4-0d19-4b10-bfe2-bc73778930bf Estonia | |
| 89020594-9e94-4cfb-921b-d3beeced7188 Greece | |
| 54a03c95-202e-498d-8601-ab6b9b1c1866 Portugal | |
| 82d32b75-7f6e-4bc5-860b-f1ccf4816e7c Sweden | |
| 6991d82f-b014-409a-9ca4-5294ae02730c Germany | |
| 5a86458e-7e6c-49c0-9e10-c857717c4182 Germany | |
| 4b638994-91a2-4454-b6c3-7a744cc47113 France | |
| 180d9c63-6572-4a3b-930d-9742474e26e3 Hungary | |
| 82b18742-938f-444b-a9a7-e2637cb854cd Spain | |
| 79d51d2f-d32a-45ee-90e6-1f66316740d3 Belgium | |
| cbf3a4a8-5da0-4b53-9df0-fcf07d38aefa Belgium | |
| de44c173-5151-43ac-9ef7-cc997f793a13 Italy | |
| 8a6f1b37-9765-4e7a-872a-2d72a35eebe0 Germany | |
| d871e969-afad-4a7e-91f2-e99962c797a2 Denmark | |
| 550f1086-852f-4b26-a46a-67a70b0d284f Germany | |
| b7429803-7b98-4426-9b96-62f195cc8f32 Czech Republic | |
| d7758f5b-0872-4270-acbb-6876b7a2e4d7 Poland | |
| fd82b975-d1ac-4ccd-94dd-ad20fc113647 Netherlands | |
| 7b8874c0-b14d-4d5f-a6bd-31c1a84b740e Bulgaria | |
| 5165c27d-68da-43fa-8a76-5a3fabd5de7f Sweden | |
| 9a43b78c-7699-4d66-ab20-4a51b58fe5e9 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK104023P4R25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 1000 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 34.45 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 1110 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 36.9 kg |
| Package Level 1 EAN | 6417019371108 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 12 mm |
| Screw Clamp / PE Terminal 4pc,25 ... 120 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 570 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 25 W |
| Rated Conditional Short-Circuit Current (Inc) | 90 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 570 A |
| (500 V) 570 A | |
| (690 V) 570 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 315 kW |
| (500 V) 400 kW | |
| (690 V) 560 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 80 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 20 kA |
| Recommended Screw Driver | Main Circuit M12 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 75 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M12 |
| Tightening Torque | Main Circuit 75 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340029D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642111 |
| E-Number (Sweden) | 3135044 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 570 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 570 A |
| Rated short-time withstand current lcw (EF007050) | 20 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 315 kW |
| Switching power at 400 V (EF009166) | 315 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
