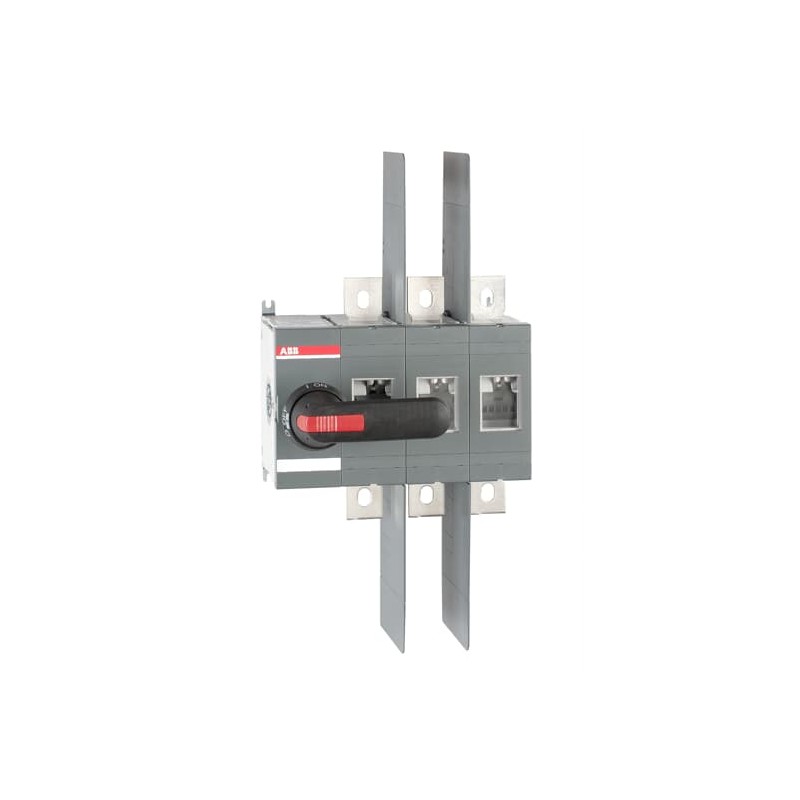

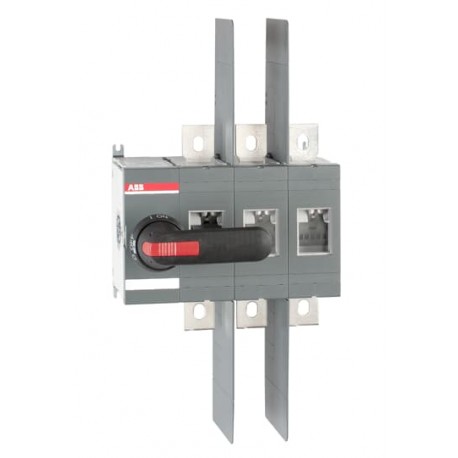

1SCA022718R9830 ABB Switch disconnector OT600U03P

Reference: 1SCA022718R9830

Manufacturer: ABB

Description:

Switch disconnector OT600U03P
OT600U03P disconnect switch
OT600U03P SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 375,97 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301119M0201
Environmental Information1SCC301232D0201
Environmental Product Declaration - EPD1SCC301284D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301042M0211
Mechanical Drawings1SCC301310F0001
1SCC301309F0001
OT600_800E03.igs
Environmental Product Declaration - EPD1SCC301284D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301232D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width266 mm
Product Net Height250 mm
Product Net Depth / Length140 mm
Product Net Weight5.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width260 mm
Package Level 1 Depth / Length335 mm
Package Level 1 Height152 mm
Package Level 1 Gross Weight6.6 kg
Package Level 1 EAN6417019230757
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 600 A
Conventional Thermal Current (Ithe)Fully Enclosed 600 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability10000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 40 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(500 V) 800 A
(690 V) 800 A
(380 ... 415 V) 800 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 800 A
(500 V) 800 A
(690 V) 800 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 450 kW
(500 V) 560 kW
(690 V) 800 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 80 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 20 kA
Special FunctionsNo
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Terminal Width39 mm
Tightening Torqueacc. IEC 60947-1 56.5 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating600 A
Horsepower Rating UL/CSA(acc. to UL 200 V) 150 Hp
(acc. to UL 208 V) 150 Hp
(acc. to UL 240 V) 200 Hp
(acc. to UL 480 V) 450 Hp
(acc. to UL 600 V) 500 Hp
Tightening Torqueacc. IEC 60947-1 56.5 N·m
Certificates and Declarations
BV Certificate1SCC301103D0201
Declaration of Conformity - CE1SCC301140D2704
UL CertificatecULus certificate OT600
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3660858
E-Number (Norway)4372198

ETIM for 1SCA022718R9830 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value600 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value800 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value800 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value20 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value450 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value450 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP00
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value266 mm
Feature nameHeight (EF000040)
Feature value250 mm
Feature nameDepth (EF000049)
Feature value140 mm
