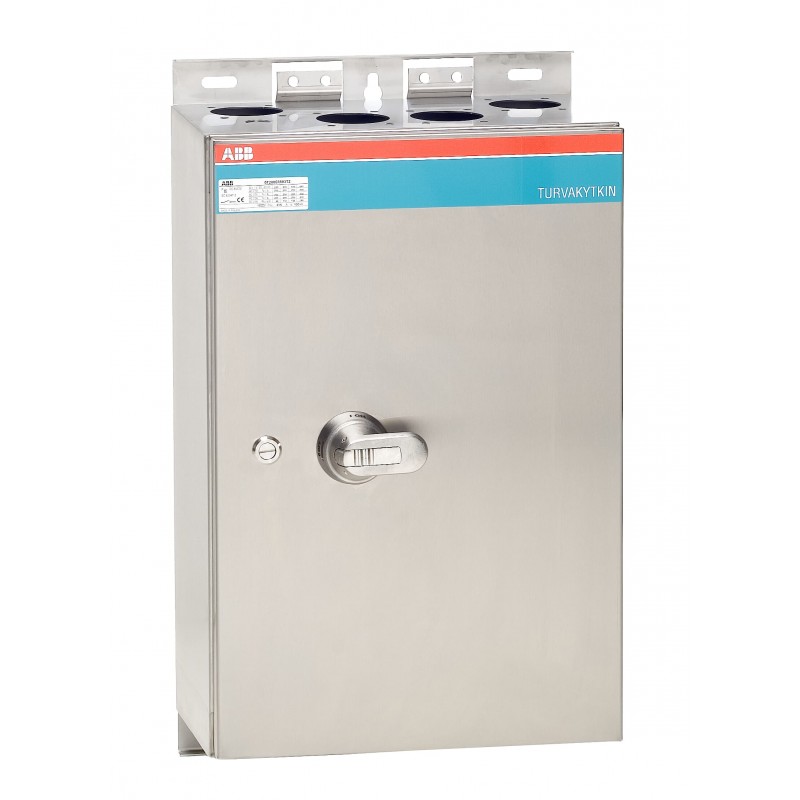

1SCA102332R1001 ABB OT315ERRR3TZ Safety switch
1SCA102332R1001
ABB
OT315ERRR3TZ Safety switch
Int. Box disconnector OT315ERRR3TZ
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | b5b0a00e-efe6-4f72-a5ed-08dd2c2a1871 Finland |
| Simplified SCIP | 4c9b9ee9-49cd-45a4-b2c7-f490ea7a80fe Germany |
| 7ae434dd-e20b-4b9c-ab47-c52c109bf085 Poland | |
| b334507b-21a4-4e50-99b7-dbf4bfb48fa5 Belgium | |
| ecd5f8fb-da8b-46d2-9089-569c2d50b05e Portugal | |
| 2cb46321-cc6d-455d-b39d-7ffdb8fb3fc4 Spain | |
| 8598cbba-9601-4b19-8251-2ee36484d295 Poland | |
| 5fa28758-7441-4001-bec3-6019e7526a2b Sweden | |
| 1182921d-b8dc-47b6-810d-f9c840588ba6 Czech Republic | |
| 0a653a2a-63e9-486b-988d-bee0701cd928 Bulgaria | |
| 1182921d-b8dc-47b6-810d-f9c840588ba6 Czech Republic | |
| 91f0c86f-4b08-48c8-8c92-d45dd039726d Croatia | |
| ed68cbeb-058b-4ff8-8d33-049d5847ae59 Sweden | |
| 396754f2-02d0-4079-98c0-46f40c626af4 Germany | |
| 92c7733c-5ac3-488e-8a00-bfbad2140002 Netherlands | |
| 92c7733c-5ac3-488e-8a00-bfbad2140002 Netherlands | |
| 204f22cf-3f1d-4f5a-9c41-29159d35fbe5 Germany | |
| 4b3c7bfa-7e4d-4c12-b530-5db9a3367eea Denmark | |
| 3a9304bd-311b-450b-b684-649b2cadc15d Germany | |
| 91f0c86f-4b08-48c8-8c92-d45dd039726d Croatia | |
| 4b3c7bfa-7e4d-4c12-b530-5db9a3367eea Denmark | |
| a4974887-5714-48d6-b38f-cd502e4801f7 Italy | |
| ccb2a82d-d82b-4e8b-ac30-acc96b4a4ef3 Germany | |
| a8d31541-eee1-4779-9880-7789a164cda6 Poland | |
| b334507b-21a4-4e50-99b7-dbf4bfb48fa5 Belgium | |
| 3a9304bd-311b-450b-b684-649b2cadc15d Germany | |
| 204f22cf-3f1d-4f5a-9c41-29159d35fbe5 Germany | |
| c7e6e8cf-5abb-453d-b402-0114b8620416 Norway | |
| 396754f2-02d0-4079-98c0-46f40c626af4 Germany | |
| 529570e2-6156-499d-8d62-bd4dd51d06b4 Hungary | |
| 8e735382-f8b5-4aa7-8adb-3907430e7ed8 France | |
| 37359f62-a50f-4304-ac5d-242381cadaf8 France | |
| 8598cbba-9601-4b19-8251-2ee36484d295 Poland | |
| 37359f62-a50f-4304-ac5d-242381cadaf8 France | |
| 8e735382-f8b5-4aa7-8adb-3907430e7ed8 France | |
| b40f19ba-fe99-48f4-80e3-cf0a0a20fa87 Greece | |
| 396417d2-1498-43d0-a9d4-643fd7c44802 Hungary | |
| fafcafcd-5c48-4a2d-8db4-166862d24b68 Estonia | |
| 7ae434dd-e20b-4b9c-ab47-c52c109bf085 Poland | |
| ecd5f8fb-da8b-46d2-9089-569c2d50b05e Portugal | |
| 2cb46321-cc6d-455d-b39d-7ffdb8fb3fc4 Spain | |
| f611e781-c645-4b4e-b058-e0d0591d7732 Belgium | |
| ed68cbeb-058b-4ff8-8d33-049d5847ae59 Sweden | |
| fafcafcd-5c48-4a2d-8db4-166862d24b68 Estonia | |
| b40f19ba-fe99-48f4-80e3-cf0a0a20fa87 Greece | |
| c7e6e8cf-5abb-453d-b402-0114b8620416 Norway | |
| f611e781-c645-4b4e-b058-e0d0591d7732 Belgium | |
| ccb2a82d-d82b-4e8b-ac30-acc96b4a4ef3 Germany | |
| 396417d2-1498-43d0-a9d4-643fd7c44802 Hungary | |
| a4974887-5714-48d6-b38f-cd502e4801f7 Italy | |
| 529570e2-6156-499d-8d62-bd4dd51d06b4 Hungary | |
| a8d31541-eee1-4779-9880-7789a164cda6 Poland | |
| 0a653a2a-63e9-486b-988d-bee0701cd928 Bulgaria | |
| 5fa28758-7441-4001-bec3-6019e7526a2b Sweden | |
| 565a6031-058d-491c-9157-203a65bcba6b Poland | |
| 03cf967d-77e1-4320-a3f2-d0866bb1266a Norway | |
| c8242c72-8692-4d66-a91a-88816807a65d Belgium | |
| 26302d1e-b726-4ec6-a57f-ff06ca1559e6 Denmark | |
| 52daaed6-6075-4648-9dd6-6839ee4a5500 Sweden | |
| b16da887-b293-42d6-b788-50b8b2c1be5c Germany | |
| 5ab3bc3d-2ef8-446b-9240-aaccf9ab5183 Germany | |
| c8043d15-a2c5-4612-979e-06f2cc058901 Croatia | |
| d843032a-7946-4997-b17f-ce097b027a68 Czech Republic | |
| 92a6f1dd-70c8-4b82-8b26-1c28a23fe6b1 Poland | |
| 5f4096b3-00b6-4477-b5d2-f71b53df241b Netherlands | |
| ca826d82-40d1-4c19-b52e-1dc923527c62 Bulgaria | |
| c2641e5d-6437-486e-9e84-de3812ab3f5a Sweden | |
| 0efbb7b3-6fce-475d-b220-1e6090675eab France | |
| 70cee08e-f4fc-4f57-9de4-68e3bac170a4 Hungary | |
| 167e9aa7-d5ec-4c11-9966-1e8936acd197 Spain | |
| f2468e79-06f3-4b4b-9276-a28a74bbf16f Belgium | |
| 7c567455-9752-4444-a249-f035f9977462 Germany | |
| ecbf429f-a027-48f0-a6a8-e863e16a80b4 Germany | |
| fbd061ef-a871-4831-afb2-bb685d135c4a Estonia | |
| 5abe34de-d8e8-4060-ae6a-d592d57d02b2 Greece | |
| 04009326-1823-40a1-b34e-e2460686f4a3 Portugal | |
| cac78fca-3a84-4170-98d2-4f055a1fe931 Poland | |
| 76c7c8cc-1a65-423a-b577-e675a5831d58 France | |
| b129f4c0-df1f-4619-bbfa-28c2e593431d Hungary | |
| a3c4305d-abd1-448c-b20d-3e7705e4c12b Italy | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK604023P4R25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 23.31 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 25 kg |
| Package Level 1 EAN | 6417019371214 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 10 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 315 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 61.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 315 A |
| (500 V) 315 A | |
| (690 V) 315 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 160 kW |
| (500 V) 200 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 65 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 15 kA |
| Recommended Screw Driver | Main Circuit M10 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 44 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M10 |
| Tightening Torque | Main Circuit 44 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642109 |
| E-Number (Sweden) | 3135034 |
