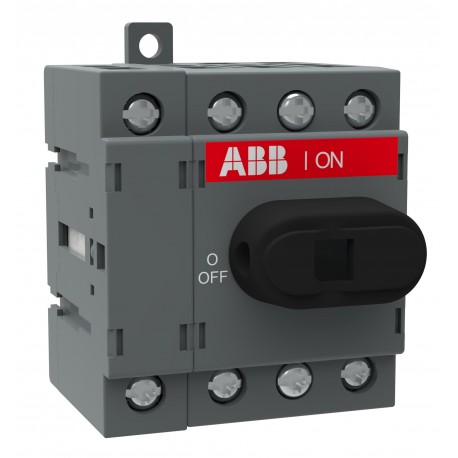

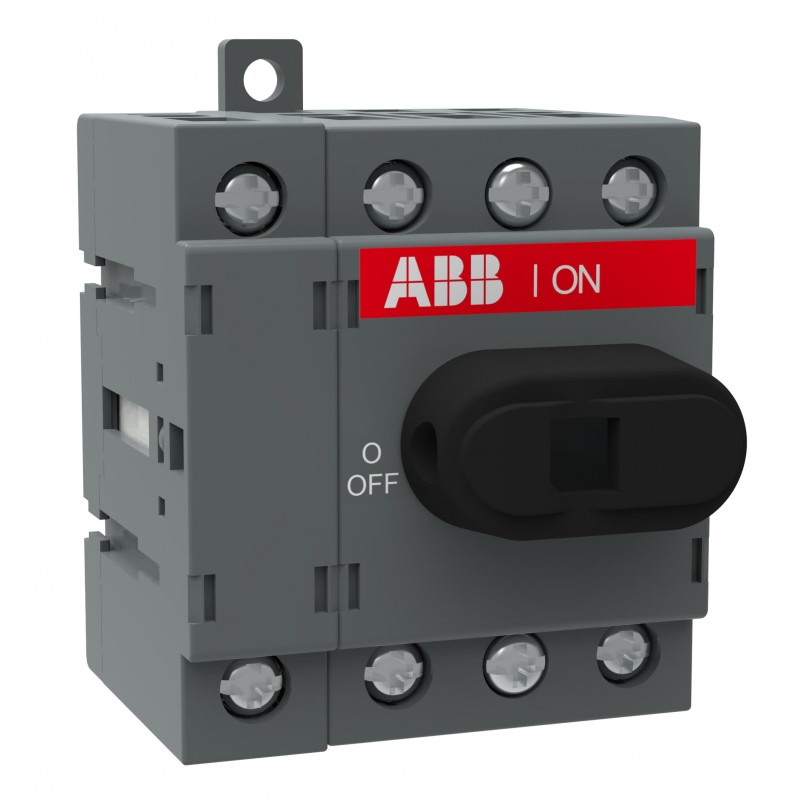

1SCA104878R1001 ABB Switch disconnector OT25F4N1
1SCA104878R1001
ABB
Switch disconnector OT25F4N1
OT25F4N1 disconnect switch
OT25F4N1 SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Environmental Information | 1SCC301262D0201 |
| Environmental Product Declaration - EPD | 1SCC301278D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301052M0006 |
| Mechanical Drawings | 1SCC301709F0001 |
| 1SCC301708F0001 | |
| OT16-40F4N1.igs | |
| Environmental Product Declaration - EPD | 1SCC301278D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301262D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 48 mm |
| Product Net Height | 48 mm |
| Product Net Depth / Length | 56 mm |
| Product Net Weight | 0.125 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 67 mm |
| Package Level 1 Depth / Length | 79 mm |
| Package Level 1 Height | 61 mm |
| Package Level 1 Gross Weight | 0.14 kg |
| Package Level 1 EAN | 6417019390215 |
| Technical | |
| Cable Cross-Section | Cu 0.75 ... 10 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Left Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Type | Knob |
| Handle and shaft not included | |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 0.6 W |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 25 A |
| (500 V) 25 A | |
| (690 V) 25 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 25 A |
| (500 V) 25 A | |
| (690 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 20 A |
| (500 V) 20 A | |
| (690 V) 11 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 4 kW |
| (400 ... 415 V) 9 kW | |
| (500 V) 9 kW | |
| (690 V) 9 kW | |
| Rated Operational Voltage | Main Circuit 750 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 0.71 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 0.5 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 508 / CSA C22.2 No. 14 |
| Switches Operating Mechanism | Mechanism on Top of the Switch |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 30 A |
| Horsepower Rating UL/CSA | (110 ... 120 V AC) Single Phase 1.5 Hp |
| (240 V AC) Single Phase 3 Hp | |
| (440 ... 480 V AC) Single Phase 7.5 Hp | |
| (550 ... 600 V AC) Single Phase 10 Hp | |
| (220 ... 240 V AC) Three Phase 7,5 Hp | |
| (440 ... 480 V AC) Three Phase 15 Hp | |
| (550 ... 600 V AC) Three Phase 20 Hp | |
| Tightening Torque | acc. IEC 60947-1 0.8 N·m |
| Tightening Torque UL/CSA | 7 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301335D0201 |
| Declaration of Conformity - CE | 1SCC301166D2703 |
| UL Certificate | cULus certificate OT16-80 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
