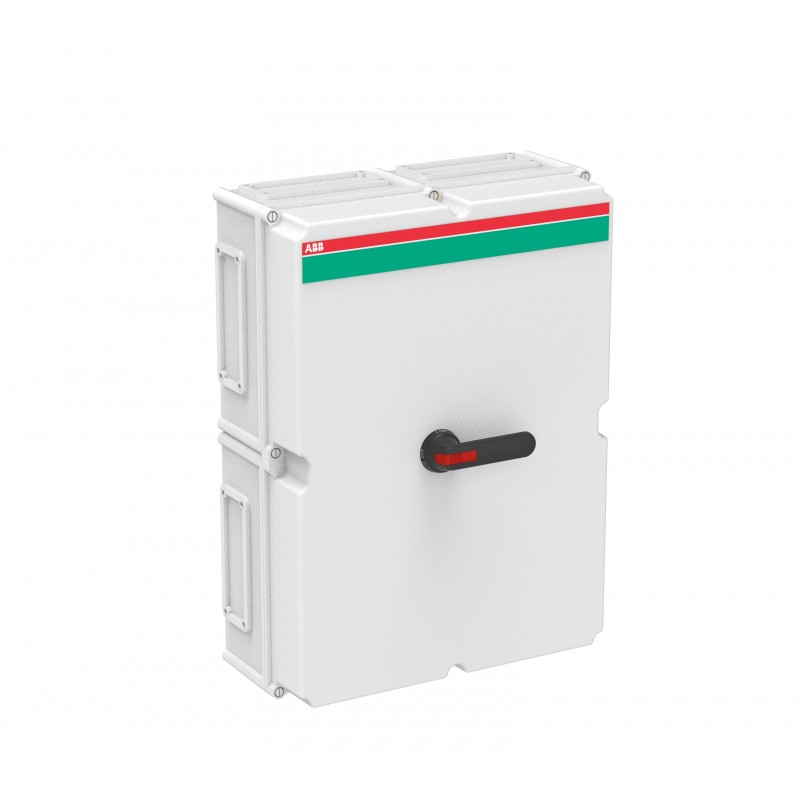

1SCA022276R9480 ABB OT250KFCC6T Safety switch
1SCA022276R9480
ABB
OT250KFCC6T Safety switch
Int. Box Disconnector OT250KFCC6T
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | a069d43e-ac27-4561-b651-14e6673d72b2 Finland |
| Simplified SCIP | 0fa0838a-a12c-429c-9745-b9a7d134a5c9 Germany |
| 3d754f1d-5cdb-46f4-8c78-ce2bb12674b3 France | |
| 98086d62-dafd-46ca-b1da-62cf37d2a6d1 Hungary | |
| 99c80be3-c91c-4f88-826d-4b5ec3f332f6 Denmark | |
| 50516732-0255-4b76-acf3-72829480d07b Poland | |
| 3aedc327-2522-48b3-8cb9-b3867c3bf6ab Hungary | |
| 2f9f2288-e356-403b-a661-ba6c09147080 Estonia | |
| bd0e9212-5a0b-4106-a07c-0aa171b959bb Greece | |
| d23d1c3f-bb42-442f-b6b4-1c4d77abc84b Portugal | |
| 05729be0-00e2-4499-8a0c-9c092c2182c0 Czech Republic | |
| 8b1956ca-9468-44fc-adf1-b675c669524b Poland | |
| a5b07bee-aedb-4334-9f3a-377cdd051e86 Netherlands | |
| 7fce5ce8-c680-47c3-8d38-d88327184160 Belgium | |
| a65e8cb4-6269-4827-b8af-83a62ff135f3 Germany | |
| 249edc44-8bf3-4851-8d3a-08a6ecb4d11b Croatia | |
| 0f8a0f7b-3783-401f-9059-395d3ba5c49e Germany | |
| a47aab44-caa5-450b-bde5-319f83fa73b8 France | |
| 80dbd9d0-06f4-4be8-afad-fb001587e57b Poland | |
| b1abfe9e-b857-44df-b34f-932150f91594 Germany | |
| e880e70f-ae4c-431c-9a7c-90794a1642ca Spain | |
| 9cfa0047-5310-46b1-a564-3b6eff396f4b Italy | |
| 44f33d89-3dd9-442f-8fae-78d2d8de7a7c Germany | |
| e1f5f6d7-7ae7-4054-8b78-8ca480b8ceb4 Sweden | |
| c5539b26-939c-44a4-81bc-a6e071d4b147 Norway | |
| 8a7f6ae5-1110-4a58-b676-94a9ca734cce Sweden | |
| 1b275123-c1ed-4d3d-ac54-c4d53bc1222e Bulgaria | |
| 71666bc1-2bae-4ec7-af70-b626f3d2151b Belgium | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK765625P2II.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 560 mm |
| Product Net Height | 760 mm |
| Product Net Depth / Length | 250 mm |
| Product Net Weight | 19.43 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 575 mm |
| Package Level 1 Depth / Length | 780 mm |
| Package Level 1 Height | 340 mm |
| Package Level 1 Gross Weight | 21.6 kg |
| Package Level 1 EAN | 6417019063287 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xII-flange / 2xII-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 4 NO, 2 NC |
| Mounted Auxiliary Contacts | 4 NO, 2 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 2 |
| Number of Auxiliary Contacts NO | 4 |
| Number of Poles | 6P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Position of PE Terminals | Top In - Bottom Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642407 |
| E-Number (Norway) | 1429368 |
| E-Number (Sweden) | 3140260 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 6 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 2 |
| Number of auxiliary contacts as normally open contact (EF001376) | 4 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
