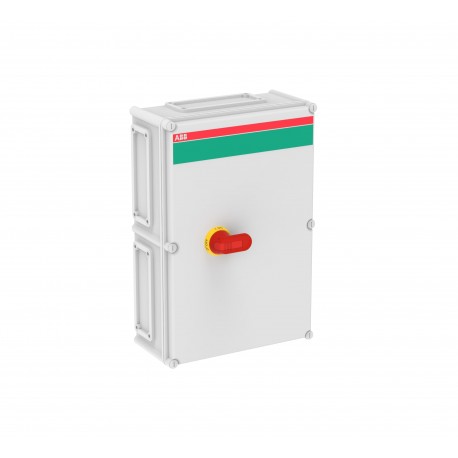

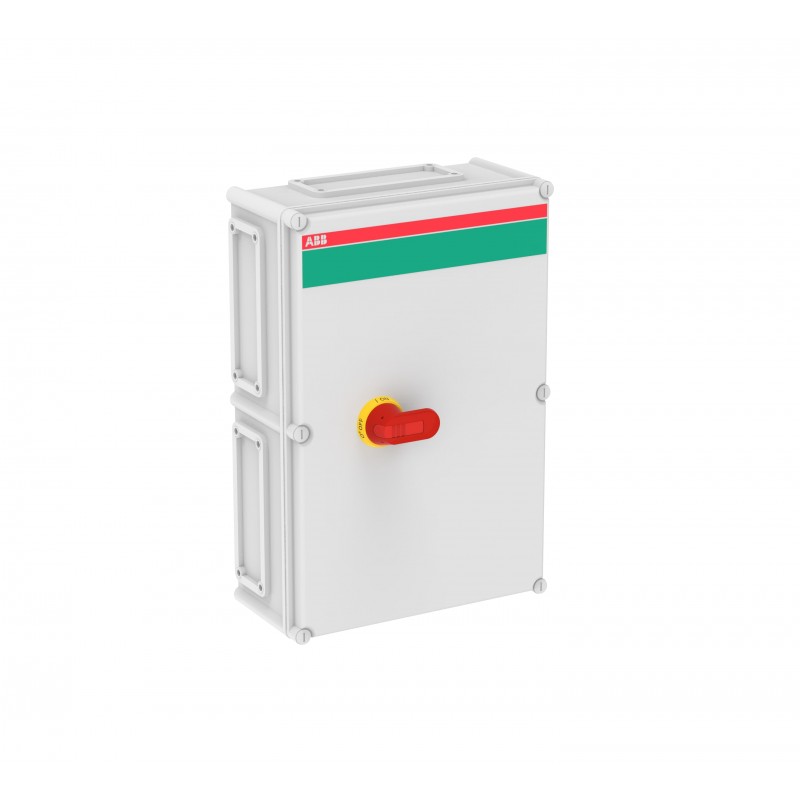

1SCA022834R0020 ABB Int. Disconnector in box OT250KFCC3BA
1SCA022834R0020
ABB
Int. Disconnector in box OT250KFCC3BA
Int. Box disconnector OT250KFCC3BA
OT250KFCC3BA Encl. Switch Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | af83807d-234d-4ac3-aade-cb6df8799237 Finland |
| Simplified SCIP | 2d416aee-79a9-488a-af9b-70c93855aae0 Germany |
| a377ad3c-a5f1-458f-8774-ca11ac0d7227 Denmark | |
| 9feeadcd-1a08-48fa-862a-ce46b25de27a Germany | |
| 70858623-8747-4d10-843d-ba643ea6d81c Poland | |
| 7c634259-567f-4b45-8f69-1a53ad928309 Sweden | |
| d3a80a83-2700-42d1-8272-34ef6c08f5f4 Bulgaria | |
| a36f1e90-c365-4082-bc47-aeb11b805869 France | |
| 5d093229-ccf5-47e3-b480-5e439ae3acb9 Germany | |
| a9277e77-c7ad-470b-8577-4b96eaf1bbe4 France | |
| 02435de3-2291-4cd0-931d-d8a867843559 Germany | |
| 94e1ccca-9fd0-43aa-9f77-324e5d2e0f44 Sweden | |
| 70c41f1d-2822-46db-9854-94cefe92c797 Norway | |
| 92938f75-46d4-4a23-8765-440d1c5b75b0 Belgium | |
| cc2320aa-6bea-4ad7-b8bc-485b8d8e3144 Italy | |
| fd5e6fa1-6406-4996-8f69-f9af7a0ccf64 Portugal | |
| 6ebf868e-8b8c-4ddc-a08b-0a0873b2cf0e Greece | |
| e61c4541-090b-4757-b5b7-e93d86a18f60 Spain | |
| 4b9b9377-74f6-4e95-849b-2480f901048b Hungary | |
| ca2be52c-4c1e-40eb-9984-12489f86db07 Poland | |
| 345a36e5-b443-4a93-9c83-9fee9fb308c3 Estonia | |
| b780ec35-64df-46c8-8323-b66426dfd9c2 Belgium | |
| 495a283e-a8ff-4614-b9a3-c7a1802315f0 Netherlands | |
| d34bc011-d25d-4f70-a22b-c3bebf099470 Hungary | |
| 35f1cb79-5872-4803-acb5-444bc67ddbe2 Poland | |
| 789ce21c-6339-4fe6-8c9d-1dd50c62e751 Croatia | |
| 3878f97f-ccd6-4989-a450-32253ca23f21 Czech Republic | |
| a0aee558-427a-47ba-8b6a-31033df1b86f Germany | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK563818PII.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.766 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9.7 kg |
| Package Level 1 EAN | 6417019289373 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
