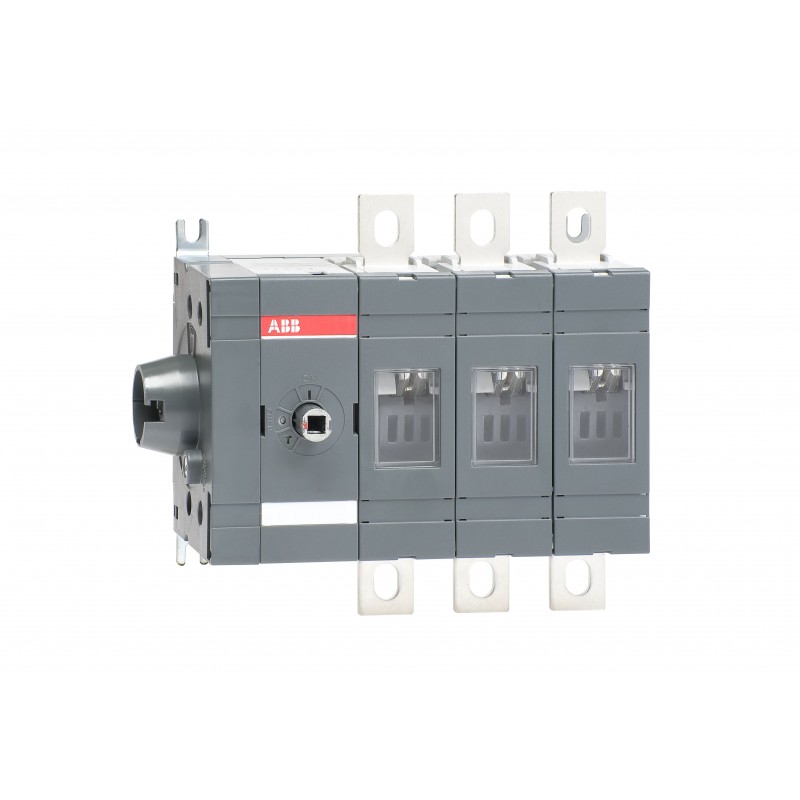

1SCA022860R0890 ABB Int. Section. control side OT250ES03
1SCA022860R0890
ABB
Int. Section. control side OT250ES03
Int. Section. Side control OT250ES03
OT250ES03 SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301068M0204 |
| Mechanical Drawings | 1SCC301648F0001 |
| 1SCC301647F0001 | |
| OT200ES03.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 181.5 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 82 mm |
| Product Net Weight | 1.5 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 250 mm |
| 9.8 in | |
| Package Level 1 Height | 155 mm |
| 6.1 in | |
| Package Level 1 Gross Weight | 1.7 kg |
| 3.7 lb | |
| Package Level 1 EAN | 6417019308791 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Side |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (315 A fuse, 500 V) 100 kA |
| (355 A fuse, 690 V) 80 kA | |
| (250 A fuse, 690 V) 100 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 ... 415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Lug terminals |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 … 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301337D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| DNV GL Certificate | 1SCC301174D0204 |
| UL Certificate | No certification needed |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3661705 |
