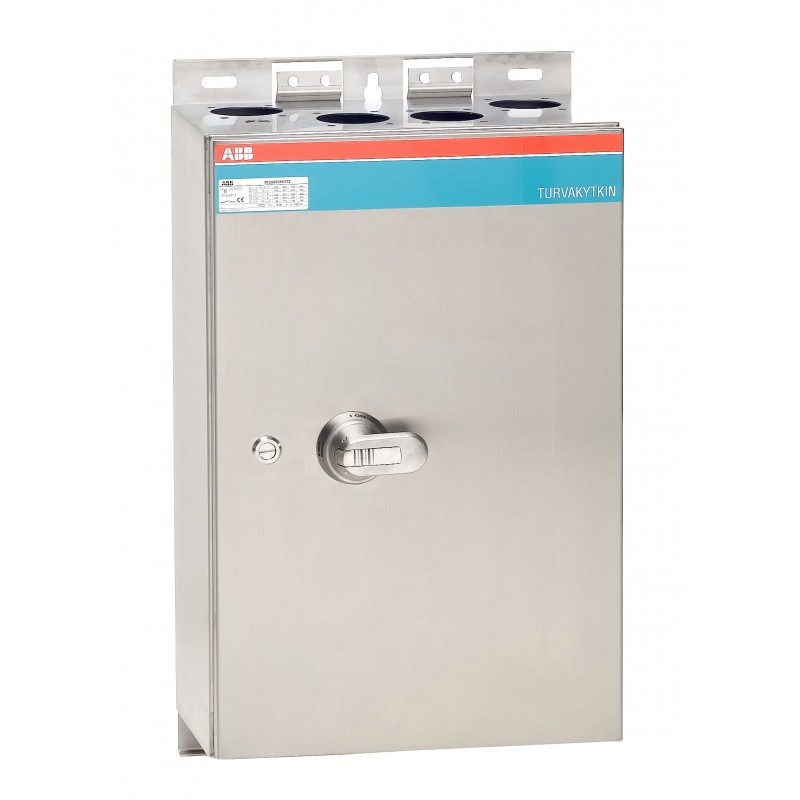

1SCA102364R1001 ABB OT250ERRR3TZ Safety switch
1SCA102364R1001
ABB
OT250ERRR3TZ Safety switch
Int. Box disconnector OT250ERRR3TZ
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 5068483a-7b48-435b-9272-52aec57e2bcf Finland |
| Simplified SCIP | 76ed4de8-2b2d-4651-9ea5-040dd8ee0b28 Germany |
| 2e0365f8-c2ea-4aac-9e40-4621647698b0 Norway | |
| a8c19abf-f107-4bb4-b871-07dacf06a9a0 Denmark | |
| e8e1264a-a4e5-4e69-b51c-96f9be1ba3ae Germany | |
| fc90649a-9aaf-4a1f-b10e-15faa760fee3 France | |
| 4778e6d6-189c-4e60-a672-dadc1ecada40 France | |
| 46a93838-32bc-4086-b823-d79465683f34 Poland | |
| 3312d390-df58-4ac2-91d6-9987f302cbea Netherlands | |
| fc08064a-24bc-40aa-9eb3-cff2977a96c9 Hungary | |
| 02ffb9d7-e3f6-4db0-8667-bd1fa1cda505 Sweden | |
| ce7a9db5-ab92-4b17-9f96-fe01c35cadf3 Bulgaria | |
| 67087d34-25d0-4eb9-9bd6-297aaa44de07 Poland | |
| 85c93d29-1971-4483-86cd-5df8a2c24b7a Portugal | |
| 31380955-244e-45d3-9807-5f278e826164 Estonia | |
| 7d34cf2c-a3fe-490f-9d84-01a4a4cbd896 Sweden | |
| 6c0338dc-05fe-4780-b7f2-dc05fcfb9054 Greece | |
| 79194cea-9b13-4e89-aaeb-4440ea608484 Germany | |
| 77c259f2-cccc-40fb-b13c-ecef8c5f33e4 Belgium | |
| 4834aeff-5300-4941-bba3-c68703be1e88 Italy | |
| dbee7f3a-0303-4bfb-9ce0-8991a6ad88a9 Hungary | |
| 45cbca02-d612-4406-a3b8-af73a3338559 Poland | |
| 9183b689-305e-43c2-a6b2-b20e236a5e61 Germany | |
| c1a444f0-0058-49f7-849d-20aae1b979db Germany | |
| 09eca7cf-6117-4c51-ae07-304b74d5c5d8 Czech Republic | |
| 90af418a-c636-4827-a58e-33986b577989 Belgium | |
| af61fdaf-4287-4bd5-ae2f-0877e7dadc16 Croatia | |
| 91396812-1067-4de0-83d8-b999532b3b82 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340008M0004 |
| Mechanical Drawings | OTRK604023P4R25.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 24.01 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 25.7 kg |
| Package Level 1 EAN | 6417019371405 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm |
| Color | Stainless |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 4pc,10 ... 70+4pc M8 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Stainless steel |
| Handle Color | Stainless Steel |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 132 kW |
| (500 V) 160 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Special Functions | EMC |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3642108 |
| E-Number (Sweden) | 3135028 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | Yes |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 132 kW |
| Switching power at 400 V (EF009166) | 132 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 1 |
| Number of auxiliary contacts as normally open contact (EF001376) | 2 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
Datasheet - PDF
