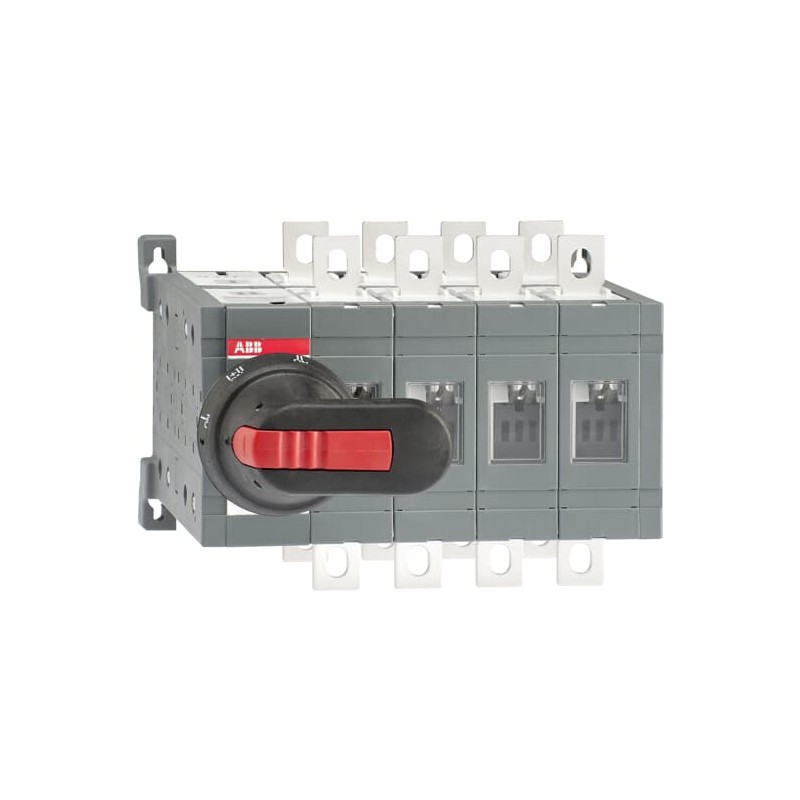

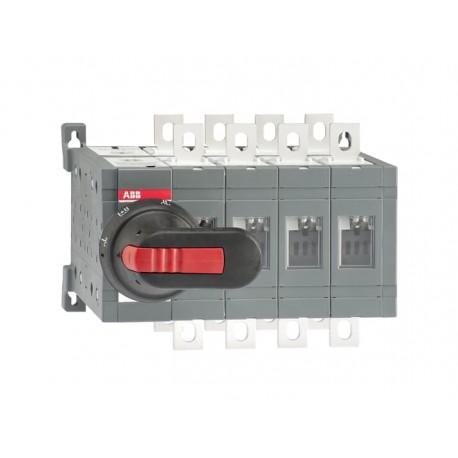

1SCA108605R1001 ABB Switch switch I-II OT250E04CLP
1SCA108605R1001
ABB
Switch switch I-II OT250E04CLP
I-II OT250E04CLP Switch
OT250E04CLP CHANGE-OVER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | f6dafe6a-ad13-4288-8e68-6b04f6bd97e8 Finland |
| Simplified SCIP | cad23b8d-d9a0-4f63-a5fc-6f12ff6f1b2a Germany |
| 6366c278-5fac-49e5-8999-ea49a9826eef Belgium | |
| c4a9220a-b58b-4221-87bb-cbcd4e87a47c Italy | |
| 909f4cd2-1f71-4063-947e-f128980e1e51 Netherlands | |
| f2c0cda0-3667-4669-8eda-4fe070fd8536 Norway | |
| 21bc6da8-bc33-4a8d-87f6-8f571f0a08d3 Spain | |
| 6731745c-09ee-4361-9881-0e600d184322 Denmark | |
| 3c488568-22e4-4392-baf6-4314c49bd884 Poland | |
| 25fc13f9-19c3-44a7-9eb9-ea3a4cc8ffa4 Poland | |
| 971b4e03-7465-4722-ab04-423e34268eec Belgium | |
| ef438e47-f39e-4560-9f33-715cd792e5bd Portugal | |
| 44d15823-04b6-480b-ba9b-8a35719fa571 Greece | |
| 98b0982e-d9d7-4ffb-9a14-dfe788a98d8a France | |
| 972aa906-8d02-41cb-80d1-05eba2d46548 Poland | |
| 99597c5b-bda2-4cb3-a33f-58a80b1fceba Germany | |
| e2c93d2a-57f8-4c9b-9d20-bc46c392b7af Sweden | |
| 8786b8ac-8ba3-4513-bc68-6474f518b0c7 Germany | |
| fa2385e1-bf94-471f-88d8-4b8644adc57c Germany | |
| 887c55f7-e072-4d1e-bd3e-56359a652844 Germany | |
| 94960399-cf82-4bfc-bc4e-32b181ac1d38 Sweden | |
| 50b8abd2-4658-4036-8bb3-66daf3909a0b Estonia | |
| 6578addd-237a-4193-a287-5b26f3888fd1 Hungary | |
| 71167b7c-3935-4bfd-ab2a-408f8f285671 France | |
| 2e0c05f6-b4db-4e39-838a-eac8172b3c82 Czech Republic | |
| 379551bb-08f8-4a1d-930c-a55458886973 Hungary | |
| e19e492f-2f6a-458a-ae8c-ca4d7cdda0b8 Croatia | |
| 86b8b13b-f9be-4783-8df8-974bc0512f37 Bulgaria | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 205 mm |
| 8.07 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.8 kg |
| 8.38 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 186 mm |
| 7.32 in | |
| Package Level 1 Depth / Length | 300 mm |
| 11.81 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 4.1 kg |
| 9.04 lb | |
| Package Level 1 EAN | 6417019399478 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 140 kW |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303045D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641615 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 140 kW |
| Switching power at 400 V (EF009166) | 140 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
