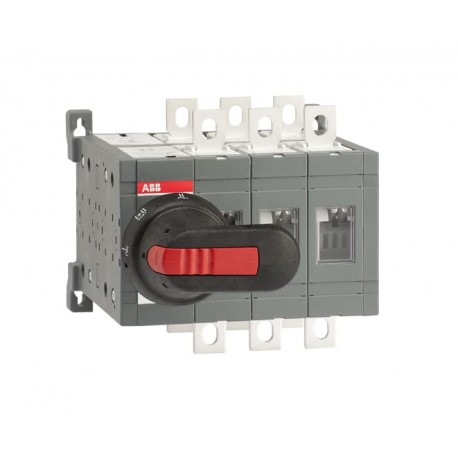

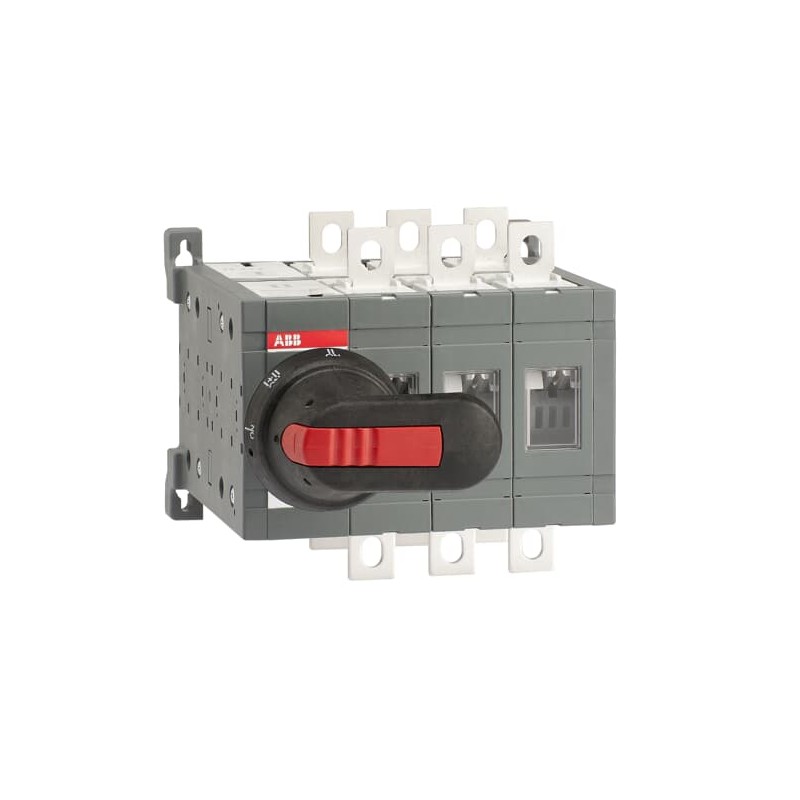

1SCA108593R1001 ABB Switch switch I-II OT250E03CLP
1SCA108593R1001
ABB
Switch switch I-II OT250E03CLP
I-II OT250E03CLP Switch
OT250E03CLP CHANGE-OVER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 79b878d4-504d-475e-91c2-016f2f3998ed Finland |
| Simplified SCIP | 2c33ea20-90b7-4b85-8219-510dd8fca46b Germany |
| b48b20e8-cf85-4a7e-bf95-7bddfe3464af Estonia | |
| 1c072847-49fa-4b31-a714-ed0e5ad30b65 Hungary | |
| b3b313df-93ef-40d6-ae0e-41f85bcbd378 Norway | |
| aa497b80-9933-46f4-9e45-e1df49e9d991 Italy | |
| d5d4ab9f-8535-495e-834e-57a05ae548ea Bulgaria | |
| 032bd052-8d6c-43dc-9d2b-5362d681df90 Czech Republic | |
| 913db524-1cdd-4f46-96d3-e18ebc89e104 Croatia | |
| 203200c2-9f0b-47b7-9243-8efefda19c7e Poland | |
| 0e029799-7711-4b7d-ab59-697e0cc1695b Sweden | |
| 0a77f31d-b298-433e-8160-d1c6c3a1cd76 France | |
| e0d0f4d3-ea77-426d-b43b-7450189611b3 Poland | |
| 7a48932f-5d82-45cd-8375-2cfd0c5bc678 Greece | |
| 32a59bb9-5020-43eb-b656-1b871ca52db8 Portugal | |
| 1a5a5e61-9dde-4ce5-ba56-70bd698081fb Hungary | |
| 6b94bf32-c6d8-4af0-b2b6-e017d695b8c4 France | |
| 12c74f53-d2da-44be-93a4-4d8411979579 Denmark | |
| 0f6369bf-7e53-4407-bde0-e653b19ebf21 Germany | |
| 99dfc603-37f0-4fe2-b79c-ad61a254ca26 Germany | |
| eaaea414-f205-47d5-80ae-e14fe04f4b92 Germany | |
| 83e28c32-64fa-4f1b-a148-7e2a0b68084c Poland | |
| 13cd8a15-9f55-4bec-8e93-bea540f64388 Belgium | |
| 7daa0011-acee-4014-926b-9a1b3209f2cc Netherlands | |
| 4afc53c7-15db-4add-bb9e-868c68834150 Belgium | |
| f189c0a9-f4b3-4b8c-bc4a-bf5ef0e39b5c Spain | |
| 7c98d324-ad56-4d43-b5b2-597724d26582 Germany | |
| ef6c8e64-bfc2-4c48-bf7e-bed3c6573f46 Sweden | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 170 mm |
| 6.69 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.12 kg |
| 6.88 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 186 mm |
| 7.32 in | |
| Package Level 1 Depth / Length | 300 mm |
| 11.81 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 3.39 kg |
| 7.47 lb | |
| Package Level 1 EAN | 6417019399522 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 250 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 140 kW |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303045D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641612 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 250 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 140 kW |
| Switching power at 400 V (EF009166) | 140 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
