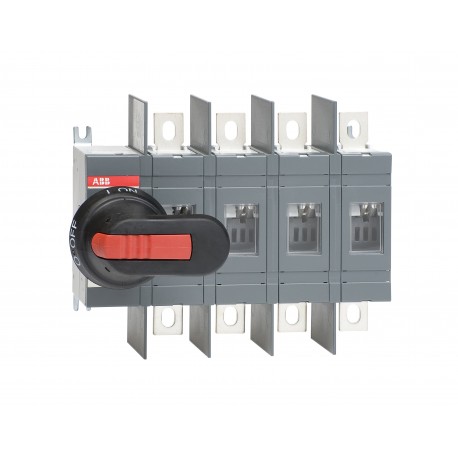

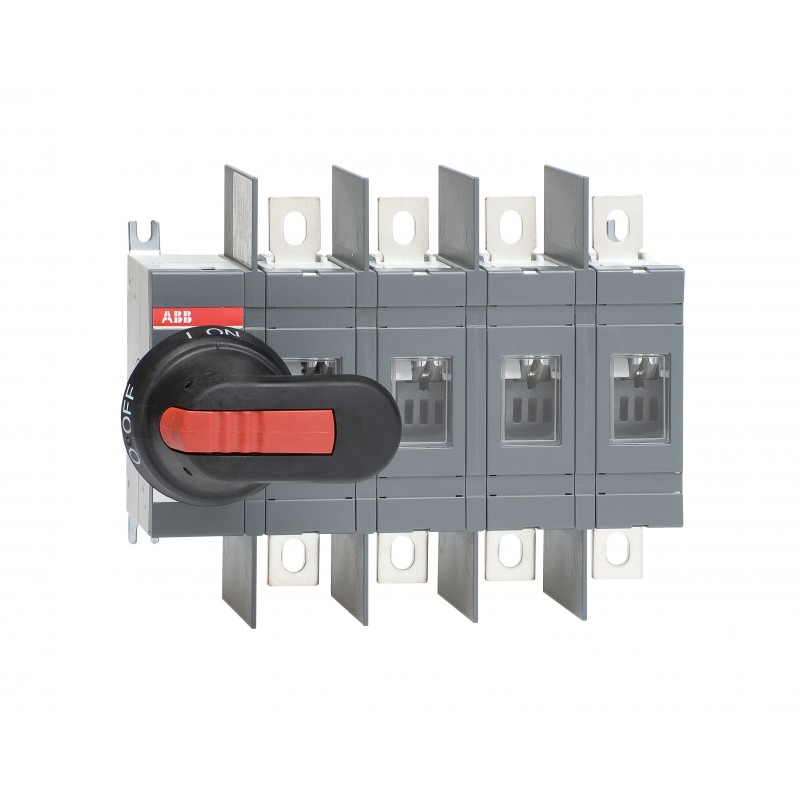

1SCA022710R0610 ABB Switch disconnector OT200U04P
1SCA022710R0610
ABB
Switch disconnector OT200U04P
OT200U04P disconnect switch
OT200U04P SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301117M0201 |
| Environmental Information | 1SCC301265D0201 |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d149f552-7e4c-4a8a-b7d4-aede68031df3 Finland |
| Simplified SCIP | 34fae3f5-4909-48ae-8ded-93ffcc1042c7 Germany |
| 862663cd-2985-4469-ad2f-ed53db0ccbeb Germany | |
| 834f1799-ff5f-40e9-b10c-2c0d91c4c34e Sweden | |
| 1474f2e6-5dd7-48e6-990e-22b61338ee85 France | |
| ed15c0cf-642d-484a-8757-d205c9640f57 Sweden | |
| 6442ad62-74a8-4e0a-b36e-dbde890e5812 Poland | |
| a4d56dbb-1f36-4283-b493-38e4c8038c9d Germany | |
| 01dd16d5-7ef9-4bf0-84ee-2acfc7f4aab4 Portugal | |
| 118e8282-4d4a-4214-88ba-759811336f92 Estonia | |
| f36b882f-1ccf-46ec-a583-f036b488537c Bulgaria | |
| d9207b8b-3f3c-4828-a4c9-2fbf9e646512 Greece | |
| b66ebac5-f11e-4114-9574-b603ee77034d Norway | |
| 25bdbfb3-b89f-4825-b87d-f10b6eb85ebe Belgium | |
| 60c9924d-cf63-49a2-9e1b-d4e0ce7aa5db Poland | |
| 03e05347-2228-4c81-a013-e236b7ef6019 Spain | |
| 726f6c35-4c1d-4a0e-92b4-78241eea2d04 Belgium | |
| 8895352f-9b53-43c5-8dd1-fdf0a51e8c02 France | |
| ac5267a4-8f3c-4701-a505-58bbaffdb6eb Hungary | |
| ab615ba1-a839-4394-a464-1f94d4efce4c Czech Republic | |
| 06eff502-d653-4296-98de-a0b70ddc45e2 Croatia | |
| dbedb1a3-b178-4713-8d24-846655503219 Denmark | |
| d84efa4a-002c-4266-a5b8-a3889c7c7708 Poland | |
| ec038ffd-00ed-4a0f-800d-b50a4c66c3c2 Italy | |
| e2a7e3d6-41e9-4a1a-aa16-613a48975f25 Netherlands | |
| 90dd216e-df80-4e6e-860c-c20616f287ed Hungary | |
| a36e9a36-4d0f-4ce7-aa94-82921b7ee5c7 Germany | |
| 7a478751-8ed6-4faf-ae5f-05fdf31abcd5 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301031M0220 |
| Mechanical Drawings | 1SCC301388F0001 |
| 1SCC301205F0001 | |
| OT200U04.igs | |
| Environmental Product Declaration - EPD | 1SCC301282D0201 |
| Environmental | |
| Degree of Protection | Front IP00 |
| Environmental Information | 1SCC301265D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 212.5 mm |
| Product Net Height | 170 mm |
| Product Net Depth / Length | 82.5 mm |
| Product Net Weight | 2.1 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 190 mm |
| 7.5 in | |
| Package Level 1 Depth / Length | 290 mm |
| 11.4 in | |
| Package Level 1 Height | 110 mm |
| 4.3 in | |
| Package Level 1 Gross Weight | 2.2 kg |
| 4.9 lb | |
| Package Level 1 EAN | 6417019225999 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP00 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| (380 ... 415 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | acc. IEC 60947-1 22.6 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 200 V) 60 Hp |
| (acc. to UL 208 V) 60 Hp | |
| (acc. to UL 240 V) 75 Hp | |
| (acc. to UL 480 V) 150 Hp | |
| (acc. to UL 600 V) 200 Hp | |
| Tightening Torque | acc. IEC 60947-1 22.6 N·m |
| Certificates and Declarations | |
| BV Certificate | 1SCC301103D0201 |
| Declaration of Conformity - CE | 1SCC301131D2705 |
| GL Certificate | 1SCC301139D0201 |
| LR Certificate | 1SCC301144D0201 |
| UL Certificate | cULus certificate OT200-400 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122221 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3660851 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 250 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Degree of protection (IP), front side (EF003118) | IP00 |
| Degree of protection (NEMA) (EF011959) | Other |
