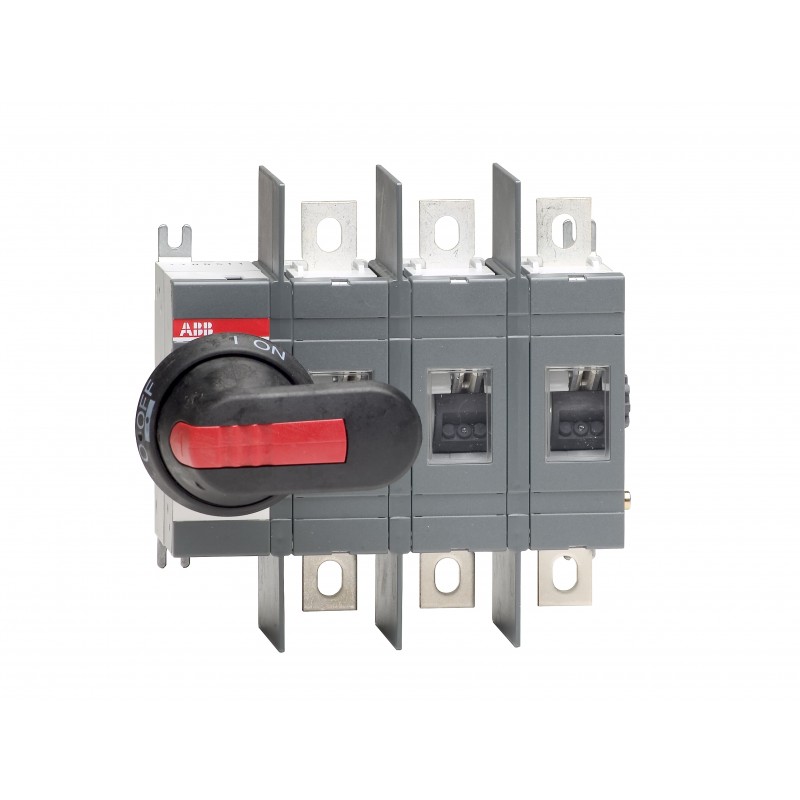

ABB 1SCA022709R9920 1SCA022709R9920 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

1SCA022709R9920 ABB Switch disconnector OT200U03P

Reference: 1SCA022709R9920

Manufacturer: ABB

Description:

Switch disconnector OT200U03P
Disconnect switch OT200U03P
OT200U03P SWITCH-DISCONNECTOR

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 138,80 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 7-8 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions1SCC301117M0201
Environmental Information1SCC301265D0201
Environmental Product Declaration - EPD1SCC301282D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC011021D0201
RoHS Declaration1SCC011020D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIPc48b7e8f-ee4a-4af1-a5f4-471646a1efd5 Finland
Simplified SCIP46fe5751-1023-493a-82ce-965b99a47208 Germany
5425f531-05a1-4679-b0d9-41e38c629813 Poland
4617fdda-87e8-4366-a0c1-797c614495d4 Belgium
c5be3584-0e5d-4885-a056-8b9ac5018108 Belgium
e3cee81a-fce3-42e3-a132-06e0ad0ee69d Portugal
922476d1-7312-4dd8-9607-9c9ac6e56a88 Greece
67ee7a69-a51d-4611-8a42-c093e07d7dad Netherlands
d27bd255-7129-4e16-b42a-1a27488cbe14 Spain
ff199b5c-2223-4ce5-9f30-d8f9c2b1c885 Poland
c8926243-37d8-4fef-8c02-5ffe86a000c6 France
6218f309-96ca-4a83-b134-23112eeb8e59 Denmark
758be8d4-972f-404f-a50f-7a7e170a1fb8 Germany
8edbd078-0f7e-4393-a28f-5c920f36802f France
86eed0d4-35d6-46ae-b5b4-8767cc19df19 Hungary
a13f0d8e-92a7-4c9a-ae81-f2e1f9ecaf5d Sweden
4d6e83da-1e7b-45a2-8bf1-861c2dae9c7a Germany
5d8581ce-164c-4fae-9a70-b3619e0c0af1 Sweden
67015a32-3dc8-40b2-98cc-1a8d33ad1348 Germany
df6a5de5-8337-4aeb-9445-3d151308501d Italy
fd81bed9-13b5-4a47-b811-18e8d07ed264 Czech Republic
6bf685db-1e3a-4107-b400-f1a7e3639098 Hungary
a2a561f8-6c84-4758-8629-c2ee7e3e3ee0 Estonia
07582f2e-4c16-4fd2-9c28-c9d9cec194cb Croatia
8b146e65-9779-4493-9d08-5e87fdbf4857 Norway
c099bd63-6bd9-46a8-bd1b-d8c07366627f Germany
e7c85542-c51e-4868-bef7-0a7f622b2fee Bulgaria
affc8bae-7ebc-4825-99bb-77a80cc58c16 Poland
Toxic Substances Control Act - TSCA1SCC011025D0201
Popular Downloads
Data Sheet, Technical Information1SCC301020C0201
Instructions and Manuals1SCC301031M0220
Mechanical Drawings1SCC301387F0001
1SCC301204F0001
OT200U03.igs
Environmental Product Declaration - EPD1SCC301282D0201
Environmental
Degree of ProtectionFront IP00
Environmental Information1SCC301265D0201
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85365080
Country or Territory of OriginFinland
Dimensions
Product Net Width169.5 mm
Product Net Height170 mm
Product Net Depth / Length82.5 mm
Product Net Weight1.6 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width190 mm
7.5 in
Package Level 1 Depth / Length290 mm
11.4 in
Package Level 1 Height110 mm
4.3 in
Package Level 1 Gross Weight1.8 kg
3.9 lb
Package Level 1 EAN6417019225920
Technical
Conventional Free-air Thermal Current (Ith)Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of ProtectionFront IP00
Distance Between PhasesStandard
Handle ColorBlack
Handle TypeHandle and shaft included
Mechanical Durability20000
Mounting TypeBase mounting
Number of Poles3P
Operating ModeFront
Pollution Degree3
Position of Line TerminalsTop In - Bottom Out
Bottom In - Top Out
Power Lossat Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)12 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)(690 V) 200 A
(500 V) 200 A
(380 ... 415 V) 200 A
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 250 A
(500 V) 250 A
(690 V) 250 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 200 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Special FunctionsNo
StandardsIEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating MechanismMechanism at the End of the Switch
03 (Left Side)
Terminal TypeLug terminals
Terminal Width20 mm
Tightening Torqueacc. IEC 60947-1 22.6 N·m
Technical UL/CSA
Maximum Operating Voltage UL/CSA600 V
Ampere Rating200 A
Horsepower Rating UL/CSA(acc. to UL 200 V) 60 Hp
(acc. to UL 208 V) 60 Hp
(acc. to UL 240 V) 75 Hp
(acc. to UL 480 V) 150 Hp
(acc. to UL 600 V) 200 Hp
Tightening Torqueacc. IEC 60947-1 22.6 N·m
Certificates and Declarations
BV Certificate1SCC301103D0201
Declaration of Conformity - CE1SCC301131D2705
GL Certificate1SCC301139D0201
LR Certificate1SCC301144D0201
UL CertificatecULus certificate OT200-400
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122233
IDEA Granular Category Code (IGCC)5290 >> Disconnect switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3660850

ETIM for 1SCA022709R9920 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueNo
Feature nameVersion as emergency stop installation (EF006959)
Feature valueNo
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value1000 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value250 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueYes
Feature nameColour control element (EF007167)
Feature valueBlack
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameHousing colour (EF000136)
Feature valueGrey
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP00
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value169.5 mm
Feature nameHeight (EF000040)
Feature value170 mm
Feature nameDepth (EF000049)
Feature value82.5 mm
