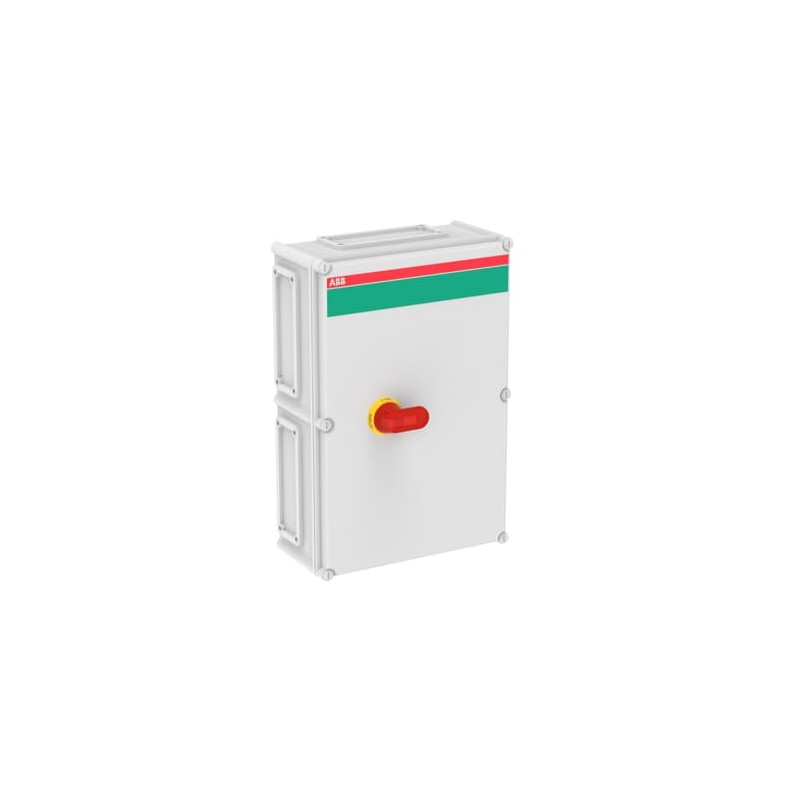

1SCA022834R0530 ABB Int. Disconnector in box OT200KFCC4BA
1SCA022834R0530
ABB
Int. Disconnector in box OT200KFCC4BA
Int. Box disconnector OT200KFCC4BA
OT200KFCC4BA Encl. Switch Disconnector
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d8770ec5-80e2-4c0c-ab31-fa2e7fe7c35b Finland |
| Simplified SCIP | 7022c475-7983-4298-a217-3577da435623 Germany |
| f4ec7728-05ec-4833-bfd9-18b95298a90b Bulgaria | |
| c3e6bc76-6855-4a62-bfb0-a3564eaf5b9c Italy | |
| 7fd13aa7-a7c1-4551-b31e-fb62be7f566b Sweden | |
| 5f56dda6-c89e-409b-baa0-4dd948a5478d France | |
| c76d133a-8738-4bf5-a375-2a135894e29a Netherlands | |
| efc3fa54-4503-46b5-a3dc-e344601193fa Poland | |
| 25927316-62ad-442a-8942-4a405971419d Greece | |
| b733d7e6-cfab-444a-9e09-48e12b5851a4 Portugal | |
| 466e5aa5-fec8-482f-a99e-1f669b473413 Poland | |
| 6be64838-5567-40d3-b563-553b8f91cf87 Norway | |
| b4a3cddf-ee53-4d91-afc2-69ca0e9fb83e Belgium | |
| 0e61d83a-f8e7-4f5b-976c-773c52e5b801 Poland | |
| 47f17994-31b2-44cb-9c8c-bf509fbeacae Estonia | |
| e8495c40-2a08-4ab2-8894-70b4acf9bf47 Sweden | |
| fde1e6a9-507a-4b2c-b1e5-d36086950cfb Germany | |
| 114e1ea1-bb19-4eac-8084-ef5820997ed1 Germany | |
| 47835845-63b1-4222-a54d-30c8d6682226 France | |
| 357e6cff-7266-4fbd-b808-39c7cecb3a57 Germany | |
| 559ba8f6-d42b-447b-aec1-bbb8ead64bbe Denmark | |
| bb84e9fc-d2f9-4bae-ac3c-8b082563144f Germany | |
| 394a9edf-f870-4504-8d94-cd8c65bd37e2 Czech Republic | |
| 81fb5932-175e-4515-80ce-b895421937bf Croatia | |
| 6886b646-c67a-4937-a983-eb07d16488e7 Hungary | |
| b3483518-b400-4c11-8c09-d2a28f3104a0 Belgium | |
| 81a7db2a-effc-4ff9-b05f-2485b8654194 Hungary | |
| 4eb68c7c-a31d-4fc8-8f3a-6a50725deae0 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Mechanical Drawings | OTPK563818PII.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 380 mm |
| Product Net Height | 560 mm |
| Product Net Depth / Length | 180 mm |
| Product Net Weight | 7.066 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 9 kg |
| Package Level 1 EAN | 6417019289427 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 22 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340025D2704 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
