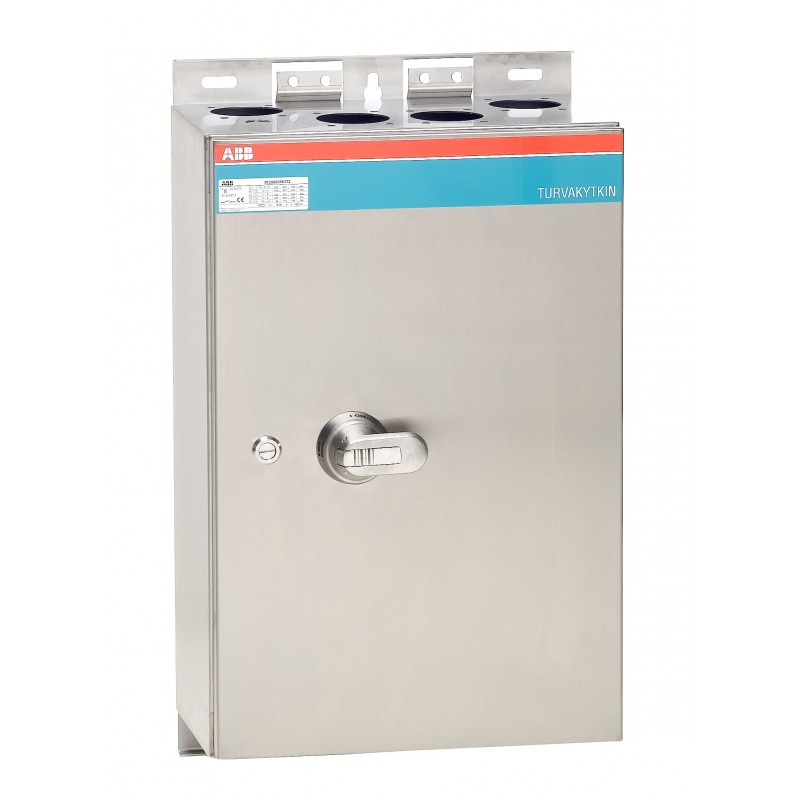

1SCA101252R1001 ABB OT200ERRR3TZ Safety switch

Reference: 1SCA101252R1001

Manufacturer: ABB

Description:

OT200ERRR3TZ Safety switch
Int. Box Disconnector OT200ERRR3TZ

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 2.674,09 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP617a60ce-66ea-4ca9-997b-d2228abba26b Finland
Simplified SCIP12b04be3-f938-4456-8830-889cbfe28a09 Germany
6cc98610-4264-4684-9982-08167ec2463f Germany
c2af56fc-c792-4e9b-bb5d-039cdbdd8ab7 Belgium
ce96478d-1917-48a8-b4df-42f8212c64dc Denmark
cb57aa43-c581-42f3-bc18-c1cd7f2fd23e Greece
8f3a4c86-3a29-460b-ae76-cc2bb5117533 Estonia
119a5b18-b713-40f1-b5f8-d9357742846c Portugal
46adf659-df09-4590-ac85-5b44af498ed8 Norway
e5c9d256-7d54-4e92-a789-5a73da8a799d Netherlands
be3ce850-c8c0-407b-bf40-c9ade906b2c8 Poland
27e57982-1fe8-44a0-9b81-5e7ce055bdda France
392e7b78-72e5-48ba-af7f-977470165367 Spain
7a8241bc-0aa4-47ee-b118-7d5da5d1d540 Croatia
ee664beb-a861-4057-986e-f078aa30cad0 Germany
06416fce-27db-422e-b401-fd3649148c89 Hungary
01a3bcde-d6f7-42c8-9225-c55283aa2768 Germany
e1ffe064-99b8-4538-91a5-230211ecd463 Sweden
b2a0dc90-690f-4fc2-85a7-61e1a74fcd6b France
96be7e33-0de4-4486-9b9a-cecd30cf007d Czech Republic
104e3ac9-96b0-492a-8958-115ff140f538 Poland
294d82b7-8828-4c4a-95ef-3d6625a33a5d Germany
c42b3a5b-2bcf-45f2-bb67-9a72174a5f85 Hungary
b386ab16-61ef-4caf-b2f6-2c8fcece1351 Italy
d3ffaf29-efa8-43fd-bf26-c1e038aed2f1 Belgium
f9bf7ae3-aab9-4aa7-bfec-8633dc6d85cd Poland
c0df7431-0460-426f-85da-c1bc996f6733 Sweden
48a58e6e-b8e2-4730-a71a-806e151a3888 Bulgaria
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC340008M0004
Mechanical DrawingsOTRK604023P4R25.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP65
Pollution Degree3
Ordering
Minimum Order Quantity1 piece
Customs Tariff Number85363090
Country or Territory of OriginFinland
Dimensions
Product Net Width400 mm
Product Net Height600 mm
Product Net Depth / Length230 mm
Product Net Weight23.31 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width415 mm
Package Level 1 Depth / Length710 mm
Package Level 1 Height325 mm
Package Level 1 Gross Weight25 kg
Package Level 1 EAN6417019362014
Technical
Cable Entry PositionTop/Bottom
Cable Outlets Per Side4xring-flange+ø25.5mm / 4xring-flange+ø25.5mm
ColorStainless
Connecting Capacity Main CircuitHole Diameter 8 mm
Screw Clamp / PE Terminal 2pc,10 ... 70 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 200 A
Degree of Protectionacc. to IEC 60529 IP65
Enclosure MaterialStainless steel
Handle ColorStainless Steel
Handle TypePistol handle
Impact Resistance RatingHousing IK09
Maximum Mounted Auxiliary Contacts2 NO, 2 NC
Mounted Auxiliary Contacts2 NO, 1 NC
Number of Auxiliary Contacts NC1
Number of Auxiliary Contacts NO2
Number of Poles3P
Pollution Degree3
Power Lossat Rated Operating Conditions per Pole 4 W
Rated Conditional Short-Circuit Current (Inc)40.5 kA
Rated Insulation Voltage (Ui)750 V
Rated Operational Current AC-22A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Current AC-23A (Ie)(380 ... 415 V) 200 A
(500 V) 200 A
(690 V) 200 A
Rated Operational Power AC-23A (Pe)(380 ... 415 V) 110 kW
(500 V) 132 kW
(690 V) 160 kW
Rated Operational VoltageMain Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)(1000 V AC) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)for 1 s 8 kA
Recommended Screw DriverMain Circuit M8
Special FunctionsEMC
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 22 N·m
Technical UL/CSA
Recommended Screw DriverMain Circuit M8
Tightening TorqueMain Circuit 22 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC340025D2704
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category4. Large Equipment (Any External Dimension More Than 50 cm)
E-Number (Finland)3642107
E-Number (Sweden)3135023

ETIM for 1SCA101252R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameMax. rated operation voltage Ue AC (EF007355)
Feature value1000 V
Feature nameRated operating voltage (EF001435)
Feature value750 V
Feature nameRated permanent current Iu (EF001389)
Feature value200 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value200 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value200 A
Feature nameRated short-time withstand current lcw (EF007050)
Feature value8 kA
Feature nameRated operation power at AC-23, 400 V (EF007027)
Feature value110 kW
Feature nameSwitching power at 400 V (EF009166)
Feature value110 kW
Feature nameNumber of poles (EF001391)
Feature value3
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value1
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value2
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueGrey
Feature nameType of control element (EF006976)
Feature valueLong turning handle
Feature nameInterlockable (EF006281)
Feature valueYes
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueBolt connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP65
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value400 mm
Feature nameHeight (EF000040)
Feature value600 mm
Feature nameDepth (EF000049)
Feature value230 mm
