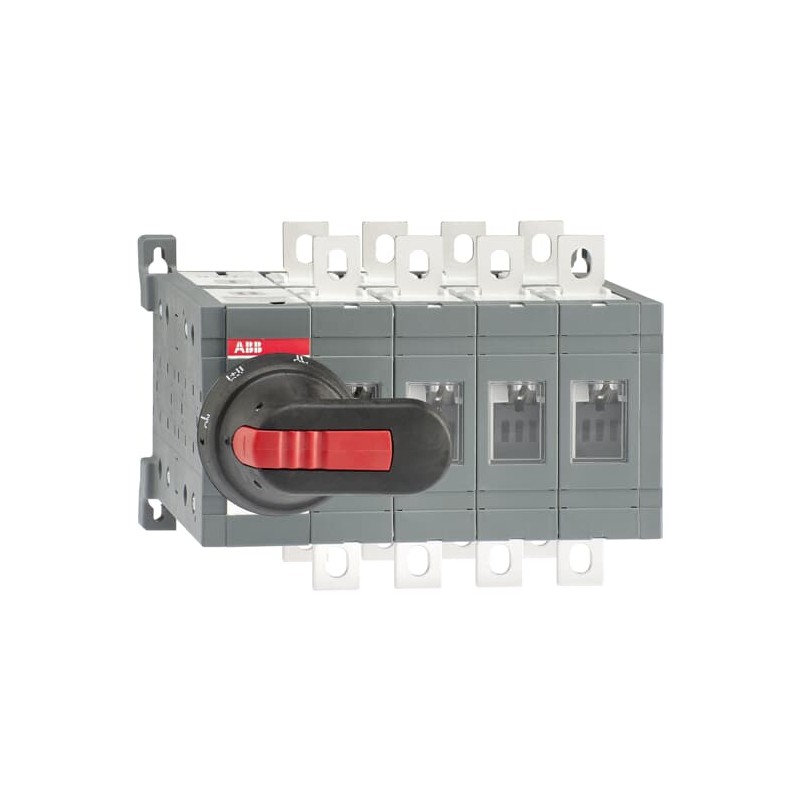

ABB 1SCA108530R1001 1SCA108530R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

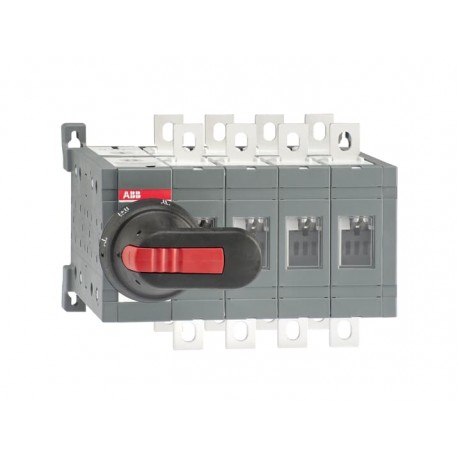

1SCA108530R1001 ABB Switch switch I-II OT200E04CLP

Reference: 1SCA108530R1001

Manufacturer: ABB

Description:

Switch switch I-II OT200E04CLP

I-II OT200E04CLP Switch

OT200E04CLP CHANGE-OVER SWITCH

Categories:

Low-voltage industrial components > Switch disconnector
ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

More Info
ETIM
Reviews

Guarantee, repair and return.

Unit Price: 533,56 €

This price is per unit and is the net value (not including taxes if applicable).

Special discounts for registered customers.Login or register and prices will be updated.

Calculate price by quantity

Quantity	Price

Standard lead time: 25 days.

These delivery times are an estimate any may vary when the item order has been processed.
You will be notified of any change to delivery times once the order has been processed.
To this delivery time you have to add the time of transport from our logistics centre to your company.

LAST VIEWED

MORE INFO

ABB EcoSolutions
End Of Life Disassembling Instructions	1SCC303050M0201
Environmental Information	1SCC303050D0201
Environmental Product Declaration - EPD	1SCC303082D0201
Material Compliance
Conflict Minerals Reporting Template (CMRT)	9AKK108467A5658
REACH Declaration	1SCC011021D0201
RoHS Declaration	1SCC011020D0201
RoHS Information	Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP	0445d5fa-6568-4374-bb04-626759926afa Finland
Simplified SCIP	56a158bc-ec00-4588-a365-35c2f0be3e5c Germany
	b52ef02e-1185-4a33-8d58-072d383d8583 Germany
	e4c16318-bb0f-4a76-ad26-89de81fe8d64 Belgium
	ac5c14fe-ec57-4289-b753-c25940be5e54 Germany
	782281aa-2762-45be-a5b6-c1f0a1c8092e Sweden
	090e79ae-4758-44fd-813d-c387c0266b70 France
	b195b4ba-c466-4249-a74b-0775b559fbf0 Germany
	271dcc9d-0a18-4fc4-8f36-2cfb308bd19c Portugal
	a04e0320-6ba7-4367-96ed-08ed55091af5 Greece
	ee05c218-5ca9-4587-8c52-e18e47979d54 Estonia
	2a107922-babc-49df-a93b-b5fa7462c81d Poland
	d0b1e72c-71a9-45e8-b9a6-b87c4562699f Hungary
	510aa703-85a7-491a-8e05-00280ae1899a Sweden
	3e347c5c-bf51-4b26-b96f-30aa7f6ed5c3 Belgium
	9558c0c2-1613-454c-b8a9-378762903ede Norway
	2f03b5ef-0f34-45e5-996b-b71fc2588a16 Poland
	f58b3c83-ba99-4ec7-ba6f-24bd3e35767a Czech Republic
	62be0a46-bfdd-4a1d-8b26-50f982001e4c Croatia
	c05d68f1-0422-4d71-9293-54ab91f831f6 Hungary
	cc12e916-6b11-4745-9b61-740b56e42165 Spain
	3ddf5534-ce62-4179-8685-cf638a495a7a Bulgaria
	26a08106-e0aa-4523-b8e7-7c5d550215ab France
	06399510-317b-401a-a3b6-624df932a464 Germany
	ec30983d-2c40-4d49-be4c-caf51cc07f0d Denmark
	20357779-fdd3-4ff0-9c0c-c8d1c470fffd Poland
	94df5b50-4ca7-4731-8c4f-58a20af61801 Italy
	2c7b2fc0-2c1b-4ea7-9514-cb7a3bbaaf0f Netherlands
Popular Downloads
Data Sheet, Technical Information	1SCC303003C0201
Instructions and Manuals	1SCC303008M0208
Environmental Product Declaration - EPD	1SCC303082D0201
Environmental
Degree of Protection	Front IP20
Environmental Information	1SCC303050D0201
Pollution Degree	3
Ordering
Minimum Order Quantity	1 piece
Customs Tariff Number	85365080
Country or Territory of Origin	Finland
Dimensions
Product Net Width	205 mm
	8.07 in
Product Net Height	150 mm
	5.91 in
Product Net Depth / Length	160 mm
	6.3 in
Product Net Weight	3.8 kg
	8.38 lb
Container Information
Package Level 1 Units	box 1 box
Package Level 1 Width	170 mm
	6.69 in
Package Level 1 Depth / Length	270 mm
	10.63 in
Package Level 1 Height	185 mm
	7.28 in
Package Level 1 Gross Weight	4.1 kg
	9.04 lb
Package Level 1 EAN	6417019399485
Technical
Conventional Free-air Thermal Current (I_th)	Θ = 40 °C 200 A
Conventional Thermal Current (I_the)	Fully Enclosed 200 A
Degree of Protection	Front IP20
Distance Between Phases	Standard
Fourth Pole Position	Right Side
Fourth Pole Type	Switched - Simultaneous Function
Handle Color	Black
Handle Type	Handle and shaft included
Mounting Type	Base mounting
Number of Poles	4P
Operating Mode	Front
Pollution Degree	3
Position of Line Terminals	Top In - Bottom Out, Bottom In - Top Out
Power Loss	at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (U_imp)	12 kV
Rated Insulation Voltage (U_i)	1000 V
Rated Operational Current AC-21A (I_e)	(380 ... 415 V) 200 A
	(500 V) 200 A
	(690 V) 200 A
Rated Operational Current AC-22A (I_e)	(380 ... 415 V) 200 A
	(500 V) 200 A
	(690 V) 200 A
Rated Operational Current AC-23A (I_e)	(380 ... 415 V) 200 A
	(500 V) 200 A
	(690 V) 200 A
Rated Operational Current AC-31B (I_e)	(380 ... 415 V) 200 A
Rated Operational Current AC-33B (I_e)	(380 ... 415 V) 200 A
Rated Operational Power AC-23A (P_e)	(380 ... 415 V) 110 kW
	(500 V) 132 kW
	(690 V) 200 kW
Rated Operational Voltage	Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (I_cw)	for 1 s 8 kiloampere rms
Switches Operating Mechanism	Mechanism at the End of the Switch
	04 (Left Side)
Terminal Type	Screw Terminals
Tightening Torque	acc. IEC 60947-1 15 ... 22 N·m
Transition Type	Closed
Technical UL/CSA
Tightening Torque	acc. IEC 60947-1 15 ... 22 N·m
Certificates and Declarations
Declaration of Conformity - CE	1SCC303045D2702
DNV Certificate	1SCC303138D0201
External Classifications and Standards
Object Classification Code	Q
ETIM 9	EC000216 - Switch disconnector (low voltage)
ETIM 10	EC000216 - Switch disconnector (AC)
UNSPSC	39122233
eClass	V11.1 : 27371403
WEEE Category	5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)	3641609

ETIM for 1SCA108530R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)

Feature valueYes

Feature nameVersion as maintenance-/service switch (EF006986)

Feature valueYes

Feature nameVersion as safety switch (EF006985)

Feature valueNo

Feature nameVersion as emergency stop installation (EF006959)

Feature valueNo

Feature nameVersion as reversing switch (EF009408)

Feature valueNo

Feature nameNumber of switches (EF005586)

Feature value1

Feature nameMax. rated operation voltage Ue AC (EF007355)

Feature value1000 V

Feature nameRated operating voltage (EF001435)

Feature value1000 V

Feature nameRated permanent current at AC-23, 400 V (EF011777)

Feature value200 A

Feature nameRated permanent current at AC-21, 400 V (EF009165)

Feature value200 A

Feature nameRated short-time withstand current lcw (EF007050)

Feature value8 kA

Feature nameRated operation power at AC-23, 400 V (EF007027)

Feature value110 kW

Feature nameSwitching power at 400 V (EF009166)

Feature value110 kW

Feature nameNumber of poles (EF001391)

Feature value4

Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)

Feature value0

Feature nameNumber of auxiliary contacts as normally open contact (EF001376)

Feature value0

Feature nameNumber of auxiliary contacts as change-over contact (EF003531)

Feature value0

Feature nameMotor drive optional (EF007386)

Feature valueNo

Feature nameMotor drive integrated (EF006697)

Feature valueNo

Feature nameVoltage release optional (EF007491)

Feature valueNo

Feature nameDevice construction (EF008240)

Feature valueBuilt-in device plug-in technique

Feature nameSuitable for front mounting 4-hole (EF007247)

Feature valueYes

Feature nameSuitable for front mounting centre (EF007248)

Feature valueNo

Feature nameSuitable for distribution board installation (EF007262)

Feature valueYes

Feature nameSuitable for intermediate mounting (EF007264)

Feature valueNo

Feature nameColour control element (EF007167)

Feature valueBlack

Feature nameInterlockable (EF006281)

Feature valueYes

Feature nameHousing colour (EF000136)

Feature valueGrey

Feature nameType of electrical connection of main circuit (EF006819)

Feature valueScrew connection

Feature nameDegree of protection (IP), front side (EF003118)

Feature valueIP20

Feature nameDegree of protection (NEMA) (EF011959)

Feature value1

Feature nameWidth (EF000008)

Feature value205 mm

Feature nameHeight (EF000040)

Feature value150 mm

Feature nameDepth (EF000049)

Feature value160 mm
