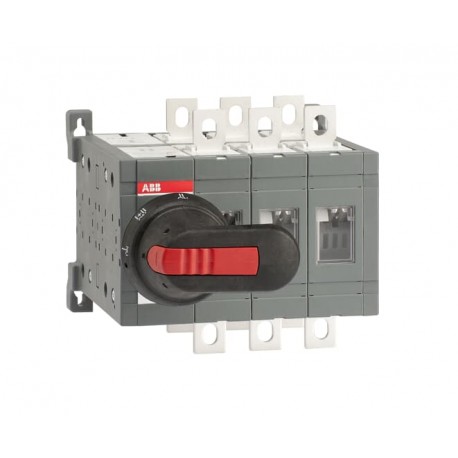

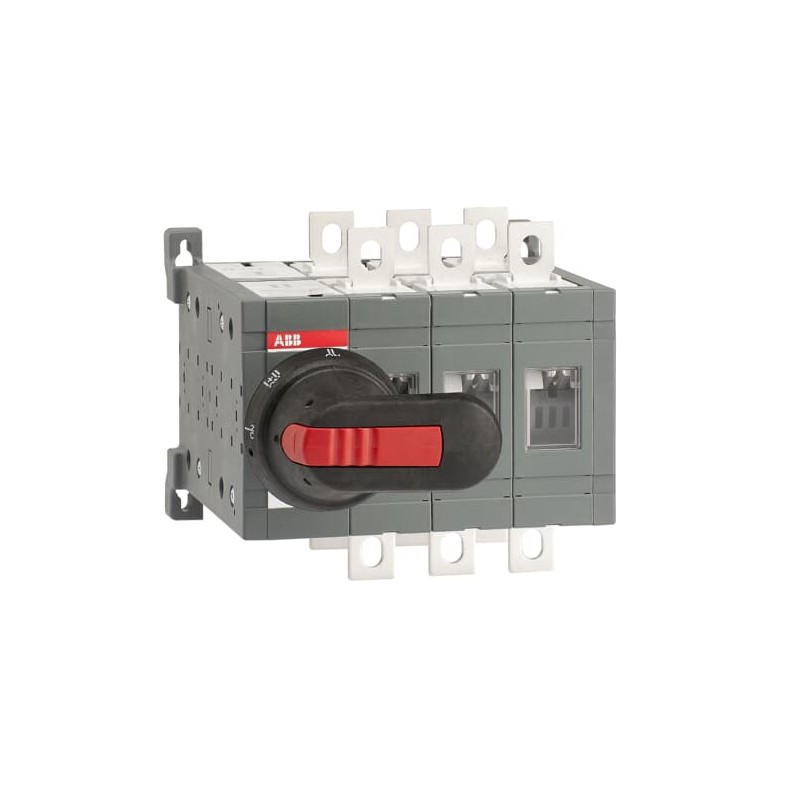

1SCA108522R1001 ABB Switch switch I-II OT200E03CLP
1SCA108522R1001
ABB
Switch switch I-II OT200E03CLP
I-II OT200E03CLP Switch
OT200E03CLP CHANGE-OVER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 71bd8cb9-dd9a-4524-8ef8-38c260df237a Finland |
| Simplified SCIP | 5cbb9209-e48c-4441-baa3-dbe9582e622d Germany |
| df820b7c-1e7f-436c-b92a-c500dcd05194 Portugal | |
| dad8fbc3-788e-405a-ac73-fdd9818447b5 Greece | |
| 8edbce29-88c9-4c18-b414-29d86cf07e56 Czech Republic | |
| ae36b616-9bad-4f43-90bf-577e23e513b7 Poland | |
| cb9ffce0-41b0-45ee-b79f-e47eca33c238 Croatia | |
| 53392f96-e47e-4789-aacf-61f486f1231c Estonia | |
| 2af7e1ad-c678-4210-994b-c3ff08689eda Hungary | |
| 4d10a04c-3203-40a2-af02-85f15abe95cb Belgium | |
| 80b8c483-a5fc-468d-b761-43b334168fc4 Spain | |
| 6a506717-0b01-4c4b-91d6-92666e46d56f Poland | |
| 7ce4f98f-755d-4b02-9f53-e9e70b857f97 Sweden | |
| 1ac7106d-fcf0-44c9-95a8-1f30196015ca Bulgaria | |
| 6ce35cbf-3fc2-441d-beda-b69175d8d92a France | |
| 629775bc-29ff-44ef-9128-b0957d78304b Sweden | |
| fcfd5658-c21b-4991-af94-e4dcab983ce2 Hungary | |
| 05e82715-f8da-4929-8e12-cecac809f190 France | |
| 46f5bea9-fd2c-4f18-855b-0c932d473246 Germany | |
| 4546ed73-e628-462d-9afe-280765e0539f Germany | |
| ef5358dc-6d8d-4154-a99a-b3d71fce7ed7 Denmark | |
| 8136e8a2-d231-4f24-96b7-d57cd8f90462 Poland | |
| 72979d92-11f3-49e1-a342-41409b51a0f2 Norway | |
| cc8ff171-efce-4cf4-ae5b-1b0c386ddedc Belgium | |
| 3d0d4078-8693-4503-b1de-8b9ce76d54f6 Italy | |
| 40ece189-c710-4e8e-81bf-bd0c4ff57625 Netherlands | |
| 03bb8225-5fdc-4de6-aed1-7edadb128b59 Germany | |
| 4707e653-5b22-4646-b77c-32bcb208ec9d Germany | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 170 mm |
| 6.69 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.1 kg |
| 6.83 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length | 245 mm |
| 9.65 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 3.3 kg |
| 7.28 lb | |
| Package Level 1 EAN | 6417019399539 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 200 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 110 kW |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303045D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641606 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 200 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 200 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 110 kW |
| Switching power at 400 V (EF009166) | 110 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
