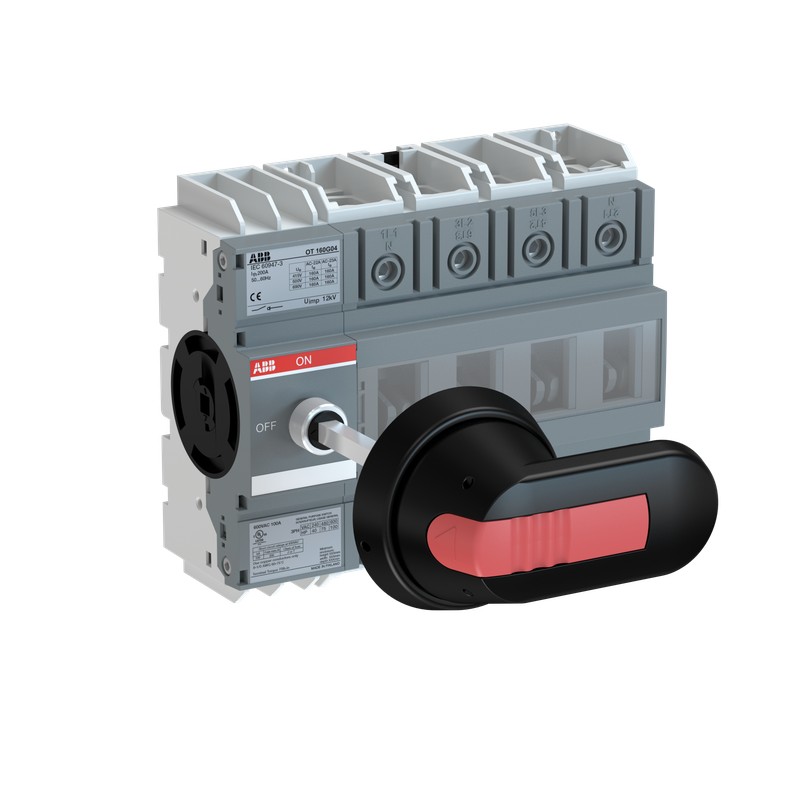

1SCA135140R1001 ABB Switch disconnector OT160G04P
1SCA135140R1001
ABB
Switch disconnector OT160G04P
OT160G04P disconnect switch
OT160G04P SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301116M0201 |
| Environmental Information | 1SCC301267D0201 |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0f3f7427-49c7-4e78-bb73-a737862f1a86 Finland |
| Simplified SCIP | 8cfe2808-3813-47ee-9599-ad61a92a7550 Germany |
| 4f8185e0-8761-43ac-8ccc-84b38a1d3eda Germany | |
| 592c285a-97df-4fdb-8c52-24551695f425 Sweden | |
| 048e0e3a-0597-43c8-bab4-a73ba1fe67cc France | |
| 63b3f780-5dca-431b-84a1-1d63a9a537f2 Poland | |
| 043838fc-1484-4534-983b-25e1ab3f8936 Czech Republic | |
| 5e232ec1-e4b2-43c4-860a-a5c5158da80d Poland | |
| f5401db0-3789-4b8e-a9b0-05fbdd50d59a Netherlands | |
| f319acc9-99bd-431e-a92a-fa770fe3ff0b Sweden | |
| 60b7513f-cb39-4575-a721-df650ff983d1 Bulgaria | |
| 6b437b08-9ef2-4b76-aeef-21732d5b995c Greece | |
| f0046096-4968-4bed-b78a-174de38aabe5 Croatia | |
| dfae7374-f73c-4764-ab36-63b144cc9e33 Portugal | |
| e64c79d4-e1a4-4506-95dd-2a1e7a0813c3 Estonia | |
| 88a1b7e0-0a83-4696-8a2a-eac899d341bb Hungary | |
| f7dfdce6-faca-495d-9969-256f4ef0fd67 Germany | |
| bad1792b-0f12-40b1-8d58-6eb849a5dbe3 Germany | |
| f976b8e5-30cf-47db-a890-2d4768259a26 France | |
| d28d95c6-8215-4a74-8e0f-4223e91c046b Poland | |
| f02cf994-264f-41c9-8548-f881fbc78872 Italy | |
| 0f70f750-7dd6-43e8-a755-b22664d29d85 Germany | |
| 422732c1-3b5e-4341-814d-723fc58bf1a7 Denmark | |
| f0b9c38b-1996-4345-b7f9-995c5fbab166 Norway | |
| 61d8de7f-f593-4f75-b1b7-e38d1279c7dc Belgium | |
| 618592db-06c9-4248-b219-98433bdfc52b Hungary | |
| 053e969a-98d4-4ef7-abff-948e70911e1e Spain | |
| f27a448f-f059-492b-8222-9a4df698a392 Belgium | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301089M0204 |
| Mechanical Drawings | OT160G4_model.igs |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301267D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 150 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 1.2 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length | 244 mm |
| 9.6 in | |
| Package Level 1 Height | 96 mm |
| 3.8 in | |
| Package Level 1 Gross Weight | 1.3 kg |
| 2.8 lb | |
| Package Level 1 EAN | 6417019638713 |
| Technical | |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - Simultaneous Function |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front and Side |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA |
| (200 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 ... 415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 04 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp |
| (440 ... 480 V AC) Single Phase 30 Hp | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | 53 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301336D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301210D2701 |
| DNV GL Certificate | 1SCC301174D0204 |
| UL Certificate | cULus certificate OT160G |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638770 |
| E-Number (Norway) | 4372125 |
| E-Number (Sweden) | 3171061 |
