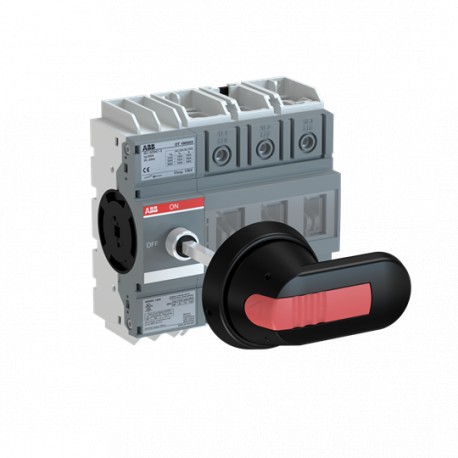

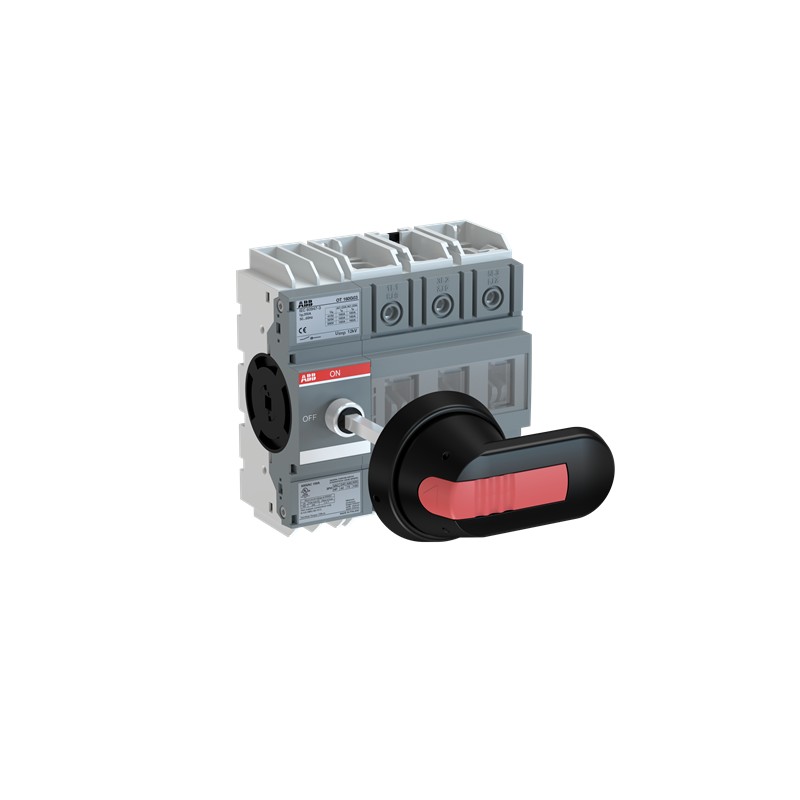

1SCA135139R1001 ABB Switch disconnector OT160G03P
1SCA135139R1001
ABB
Switch disconnector OT160G03P
OT160G03P disconnect switch
OT160G03P SWITCH-DISCONNECTOR
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC301116M0201 |
| Environmental Information | 1SCC301267D0201 |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6f064110-8ade-4356-9916-63b327acc3b7 Finland |
| Simplified SCIP | 9695ceac-9a5e-47a3-9d10-913be99f61f2 Germany |
| 8765d64a-1254-4740-b28b-ffd01ce6515e Sweden | |
| 3681be30-0ecc-4559-922c-3b97a79d0da4 Poland | |
| b55c5251-02d9-435f-90e2-96ddfb56b519 Poland | |
| 092dd1c4-c806-46a2-bd5d-4041c5776f1e France | |
| e4ad0e9c-310a-4370-b58a-e9061e6a7bc7 Estonia | |
| 12544bfd-5174-4e17-a112-be5ff151b3e8 Bulgaria | |
| b2d74db4-ac58-4226-97f5-54e578e3be08 Greece | |
| d6258643-2026-405c-a2d4-f58707d1ac46 Croatia | |
| f6ed35dc-cfbc-4783-a265-c5cf8d8cd88b Portugal | |
| 0d3525da-aa66-47e6-9cd9-cc463adeb861 Sweden | |
| 32dc2de6-cd6e-400c-88f3-7907ffe5f316 Hungary | |
| 00a80986-0c31-4117-879b-c97b5019ae7b Czech Republic | |
| 5ba42181-654d-465d-ad59-eef68bc47e09 Netherlands | |
| 1bde6823-5682-419b-a3ff-cd201dea689d Germany | |
| 798c0614-8d5c-4122-82af-01d963ea7f64 Germany | |
| ce70bfa1-b9e0-4ae5-9535-37b4eaf61b49 Belgium | |
| 825bde5b-85ec-4c5d-8cf5-5abe0b98f0fa Norway | |
| 7d786ffd-c696-4ea2-9940-de8c6b33c784 Germany | |
| df72ae17-3e35-4c10-8169-240c0fae359d Poland | |
| e6f961a8-7c4e-4a38-91d9-7da31e97aeab Denmark | |
| 17fa4b90-0c59-4330-8af1-2fecb845eab4 Germany | |
| ad47b5c2-dead-418f-97d2-d1004114861f Italy | |
| 7a3eb990-9440-4f07-a1ff-711db106a55c Spain | |
| b8605eb2-93cc-4a46-8a90-f39401d925eb Belgium | |
| 6be34c1d-5dd5-49ea-8e37-e833145c84af France | |
| e328478e-18e3-4cda-b415-18eaef621254 Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC301020C0201 |
| Instructions and Manuals | 1SCC301089M0204 |
| Mechanical Drawings | OT160G3_model.igs |
| Environmental Product Declaration - EPD | 1SCC301281D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC301267D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 123 mm |
| Product Net Height | 130 mm |
| Product Net Depth / Length | 73 mm |
| Product Net Weight | 0.9 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 160 mm |
| 6.3 in | |
| Package Level 1 Depth / Length | 244 mm |
| 9.6 in | |
| Package Level 1 Height | 96 mm |
| 3.8 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.3 lb | |
| Package Level 1 EAN | 6417019638706 |
| Technical | |
| Cable Cross-Section | Cu 10 ... 70 mm² |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mechanical Durability | 20000 |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front and Side |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Conditional Short-Circuit Current (Inc) | (200 A fuse, 500 V) 100 kA |
| (200 A fuse, 690 V) 50 kA | |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 45 kW |
| (400 ... 415 V) 75 kW | |
| (500 V) 90 kW | |
| (690 V) 132 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (690 V) 12 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 4 kA |
| Special Functions | No |
| Standards | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | 600 V |
| Ampere Rating | 125 A |
| Horsepower Rating UL/CSA | (240 V AC) Single Phase 20 Hp |
| (440 ... 480 V AC) Single Phase 30 Hp | |
| Tightening Torque | acc. IEC 60947-1 6 N·m |
| Tightening Torque UL/CSA | 53 in·lb |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC301336D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC301210D2701 |
| DNV GL Certificate | 1SCC301174D0204 |
| UL Certificate | cULus certificate OT160G |
| VDE Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3638769 |
| E-Number (Norway) | 4372122 |
| E-Number (Sweden) | 3171058 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 4 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 75 kW |
| Switching power at 400 V (EF009166) | 75 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 50 kA |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | Other |
