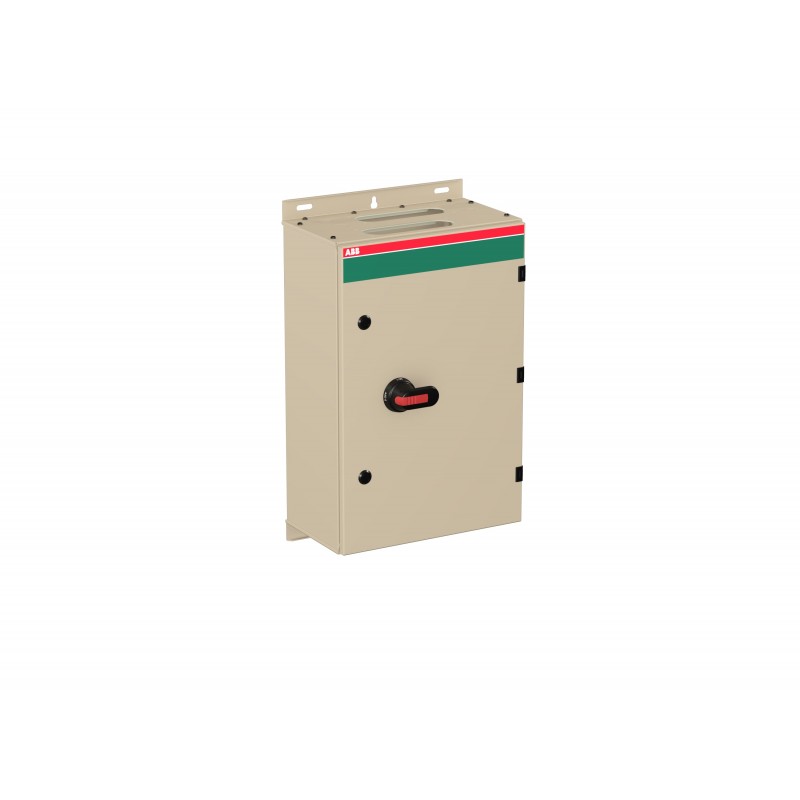

1SCA148591R1001 ABB OT160EVLCC3TZ Safety switch
1SCA148591R1001
ABB
OT160EVLCC3TZ Safety switch
Int. Box Disconnector OT160EVLCC3TZ
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 894e78e2-d56b-4af2-95a2-610038086199 Finland |
| Simplified SCIP | 2242d8ea-4e80-4dd3-abcc-630e1fc2a5ad Germany |
| 04e2d849-a640-4cdd-b95e-1f60b15f38b7 Spain | |
| d5656b04-414d-4fa3-a7bd-103caf86d0e2 Poland | |
| 8b0ab932-9187-4441-a11f-2facfba5b92d Portugal | |
| db924aa4-c30b-4fc3-b9ca-6ef5e5861fa7 Estonia | |
| ceefde06-2cca-4aa6-8c9c-0ac971c5ec17 Hungary | |
| 7817958b-c25c-4b7b-93a1-3e5c6efa5ff6 Greece | |
| 7358cc05-12b9-416d-82b7-c6e2173cd6b7 Netherlands | |
| 9cbd22a2-84ba-4f4c-8c34-af729ee50bdd Poland | |
| 60741482-0ba4-4e43-b1fe-1b74e4c640eb France | |
| c607b8ec-55ed-43b6-b732-9ee5df02ffe6 Denmark | |
| c24eb3e7-9dc3-43f1-8958-1b937bb7c114 Belgium | |
| 502bad7e-42a6-4279-90b8-0c6aa69ef1f4 Germany | |
| 99c3d4e8-0d2c-4c3d-81ba-fa6a06a2d869 Germany | |
| 65717cde-ee09-4edc-af23-6bceac321b3b Hungary | |
| 1cc74750-38ec-47e7-a4ec-3e2c239c26a2 Bulgaria | |
| 9c3091ca-5498-4c87-836b-1e211b948ff3 Sweden | |
| d02e0074-ddf2-45a4-bbe5-6117798f16df Sweden | |
| fe5eb400-052c-4a09-9c3a-3f9c89e317cf Germany | |
| c7785d4b-e6e2-40a7-824d-79a573be1536 Germany | |
| 4ba3ca20-5210-4026-9dc5-cb6b03b8b0ec Czech Republic | |
| bf717124-5a72-4ebc-94fd-26a1511bc7ea Croatia | |
| b4647f4e-defc-4b14-b98c-afc78d332db1 France | |
| 8b19de44-ed76-4d8e-8044-47af7c3892b5 Italy | |
| 240704ac-14f6-4a54-9587-7b5dfbfdce00 Norway | |
| a44e292f-36b0-469f-9d82-8dbd52db0147 Poland | |
| 01173efa-7d5f-4524-baa7-4570de4925f9 Belgium | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340005M0007 |
| Mechanical Drawings | OTKM604023P2C.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 400 mm |
| Product Net Height | 600 mm |
| Product Net Depth / Length | 230 mm |
| Product Net Weight | 19.41 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 415 mm |
| Package Level 1 Depth / Length | 710 mm |
| Package Level 1 Height | 325 mm |
| Package Level 1 Gross Weight | 21.1 kg |
| Package Level 1 EAN | 6417019781228 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xC-flange / 2xC-flange, Knock-outs: 10mm, 12.5mm, 20.5mm, 25.5mm, 32.5mm |
| Color | RAL7032 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Steel sheet |
| Enclosure Type | MSC |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK09 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Neutral Type | No Neutral Terminal |
| Number of Auxiliary Contacts NC | 1 |
| Number of Auxiliary Contacts NO | 2 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340002D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| E-Number (Finland) | 3640407 |
| E-Number (Sweden) | 3134567 |
