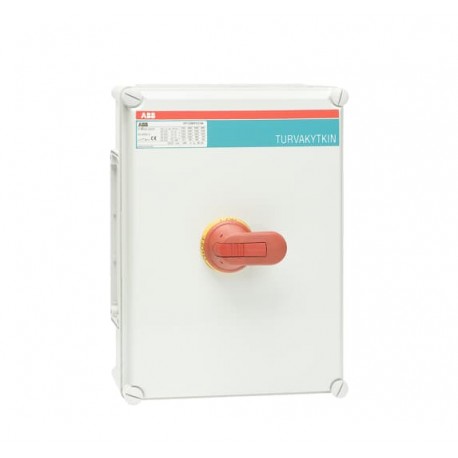

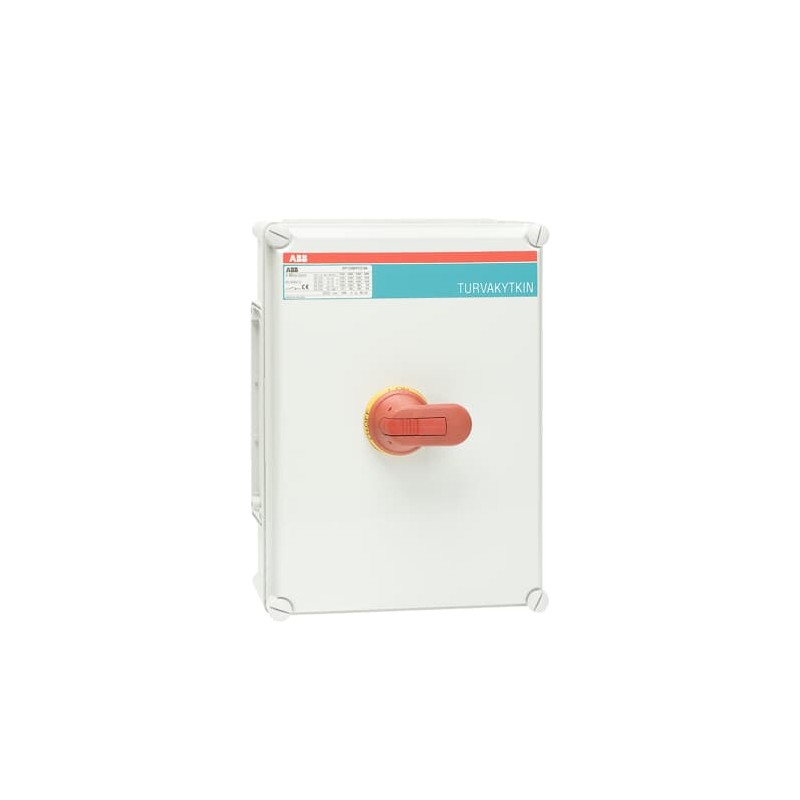

1SCA148618R1001 ABB OT160EVFCC4BA Enclosed Switch Disconnector
1SCA148618R1001
ABB
OT160EVFCC4BA Enclosed Switch Disconnector
Int. Box disconnector OT160EVFCC4BA
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 93c60c04-3b82-4664-aab9-099e89c375cb Finland |
| Simplified SCIP | 9ac9a203-f5dc-4b6c-a26d-a5f1ecc7e964 Germany |
| 3e7db927-c80d-477b-a8a1-5865dfd7cb52 Bulgaria | |
| ed9e2c1f-beae-4751-bcad-2991727f1459 Portugal | |
| 78fcfda7-ba94-4ed1-9da5-93b25f6fac24 Greece | |
| 1ac8a7a5-9b9b-48d6-95c1-c2bc31b4b473 Germany | |
| 007ac8b8-c982-4bf8-be5b-e128a179c1a4 Croatia | |
| ae08297c-93d3-4bc9-8e1a-5104a27b709f Belgium | |
| 267c1235-6bac-4bf9-8b05-7793834a1bd6 Czech Republic | |
| a62bee1a-06d7-4632-9923-d1b70656ac82 Germany | |
| 9d3f76e0-81bb-4913-8ba4-089aee9b2fe2 Germany | |
| 82baf134-c2ea-4a2c-b785-73e3e19d4cbd France | |
| 5a724cd4-04be-4840-83de-583ce80d5bd0 Hungary | |
| f46fbad1-442f-44cf-9ebe-d3cda64727c1 Belgium | |
| a9a85f54-5f9e-45bd-984e-40c371a1cb41 Germany | |
| 816a1718-8671-4761-a885-293a6f01eea8 Hungary | |
| 611bb337-225a-4720-af9e-ed4fe4da9765 Estonia | |
| a4574028-e1ac-4da2-b071-e6cb70a6425b Poland | |
| c400ee11-4bfd-40f3-b05d-179bfaf6c6b8 Sweden | |
| 755caace-982d-40e3-a4cd-0981f40daaae Italy | |
| d091fde7-be1f-4137-b745-cb2e72d9623b Netherlands | |
| 3a16fd57-fd09-44c4-8db4-31bd9b50c3db Denmark | |
| 053a0454-3354-4992-9435-042e6e8aeb8e Poland | |
| e8a65979-2eca-4e87-84f3-bc1151ccccde France | |
| c53785be-9fce-4114-bc6c-d59bb04b8010 Sweden | |
| 23395312-3655-493f-ae0d-fccb2adf338d Norway | |
| bd2cd1cf-2a88-4c58-9e3f-790004b52fb3 Spain | |
| dea5bd55-9bdf-4da9-b232-885c1c6620d9 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.4 kg |
| Package Level 1 EAN | 6417019781488 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Red / Yellow |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Switchable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current Iu (EF001389) | 160 A |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 88 kW |
| Switching power at 400 V (EF009166) | 88 kW |
| Number of poles (EF001391) | 4 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Colour control element (EF007167) | Red |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Degree of protection (IP), front side (EF003118) | IP65 |
| Degree of protection (NEMA) (EF011959) | Other |
