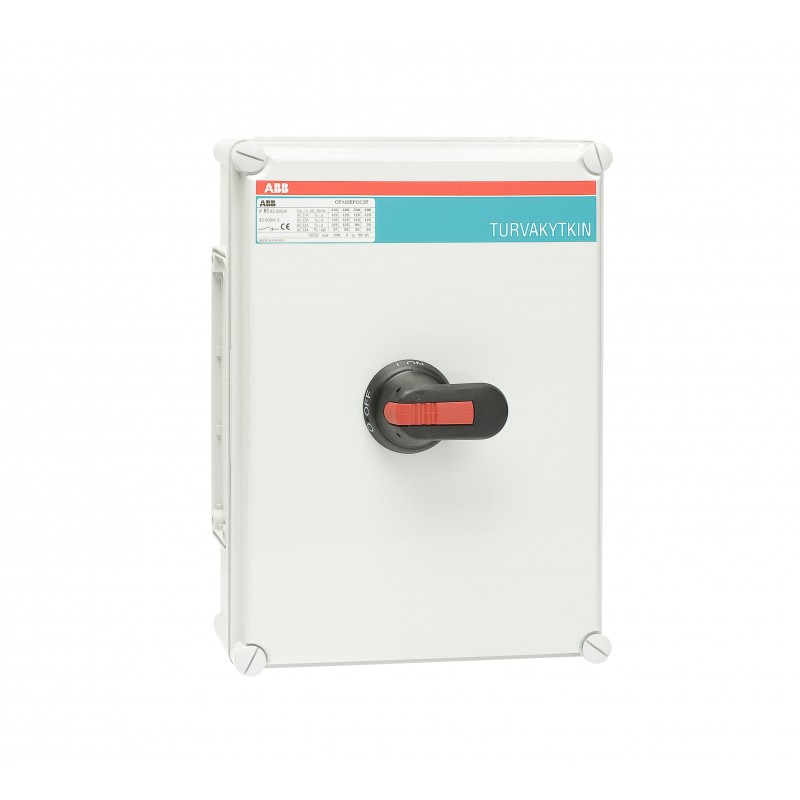

1SCA148615R1001 ABB OT160EVFCC3B Enclosed Switch Disconnector
1SCA148615R1001
ABB
OT160EVFCC3B Enclosed Switch Disconnector
Int. Box disconnector OT160EVFCC3B
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | ad9bca79-7291-4f29-909e-00c2f2053c23 Finland |
| Simplified SCIP | d1ffd826-24bf-4950-8ce1-de3ce8cf2eed Germany |
| d26f10d4-dc16-4900-91f4-077f19fc9bbf Greece | |
| 3b00b5b8-a796-4d29-a506-9281d31e7673 Portugal | |
| 2727ffb3-914c-4db8-91af-3e371fe66638 Czech Republic | |
| 7cce01dc-7b5c-492c-bb5e-b1704e4bc588 Germany | |
| cff6d282-df8f-4f7a-a841-70f727f83630 Germany | |
| b59fe68d-9cc3-4be5-92ff-ab2f886e75d8 France | |
| e3e1a329-8eb4-4f52-b424-6dd6ea183d9a Croatia | |
| 2c72c8ae-4eee-4ded-ad35-1d38dca80752 Germany | |
| d32040a1-9459-4393-9ba7-2362f8689471 Belgium | |
| 36ebfbe9-e1de-4870-9af8-43529aca09f8 Germany | |
| f43fea9d-20e9-4b54-a3f6-0bddafea0fad Estonia | |
| 1f7c331f-27ff-4aaa-81fa-42c0e12fde22 Belgium | |
| d58f4a69-72fa-4290-aa23-bb7640dcc775 Sweden | |
| b7ec78bc-72ee-484f-8f75-2e272fc492d4 Poland | |
| a19bdeae-597d-4098-a75b-85ba149ee011 Hungary | |
| 988dc48a-79cd-45e7-b242-8c1baa7d4c98 Italy | |
| a4f849c2-bff6-4d5f-9b3f-8abbfef5db42 Netherlands | |
| fce314c2-8c73-4023-983f-a0c1693cecfa Hungary | |
| 2adff9c4-3901-4f11-b8d6-2ce833c003eb Denmark | |
| ee700bb7-687f-4d04-b509-bf1c3c23bc05 Poland | |
| e3204b3e-570d-4890-9e07-0d98ca7dc6e5 Poland | |
| 6dbe76ab-9cf4-4f76-9d33-9b4e605f89f0 Sweden | |
| 277b045c-1584-4004-92f3-d397507353f3 France | |
| 2fd8aa60-8c62-41e1-9076-58aa6beb2c36 Bulgaria | |
| 3462d784-06cf-4764-bb9b-80a55b399baa Spain | |
| 77016c48-eda0-4c96-b1e3-b8def9507de1 Norway | |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.1 kg |
| Package Level 1 EAN | 6417019781457 |
| Technical | |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | II-flange / II-flange |
| Color | RAL7032..7035 |
| Connecting Capacity Main Circuit | Hole Diameter 8 mm |
| Screw Clamp / PE Terminal 2pc,10 ... 70 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Enclosure Type | Fibox |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Impact Resistance Rating | Housing IK08 |
| Maximum Mounted Auxiliary Contacts | 2 NO, 2 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Neutral Type | Detachable Neutral |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 3P |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out |
| Rated Conditional Short-Circuit Current (Inc) | 40.5 kA |
| Rated Insulation Voltage (Ui) | 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 88 kW |
| (500 V) 112 kW | |
| (690 V) 144 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm) | (1000 V AC) 30 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kA |
| Recommended Screw Driver | Main Circuit M8 |
| Standards | IEC 60947-1, -3 |
| Terminal Type | Bolt |
| Tightening Torque | Main Circuit 6 N·m |
| Technical UL/CSA | |
| Recommended Screw Driver | Main Circuit M8 |
| Tightening Torque | Main Circuit 6 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
