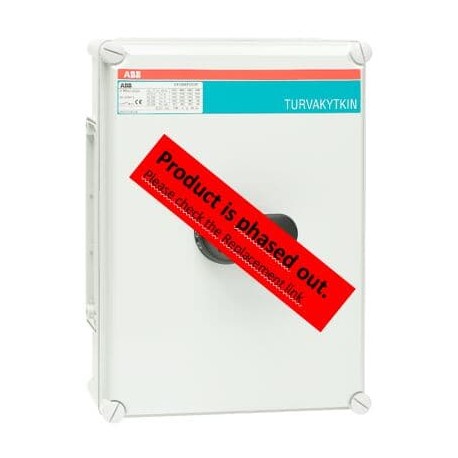

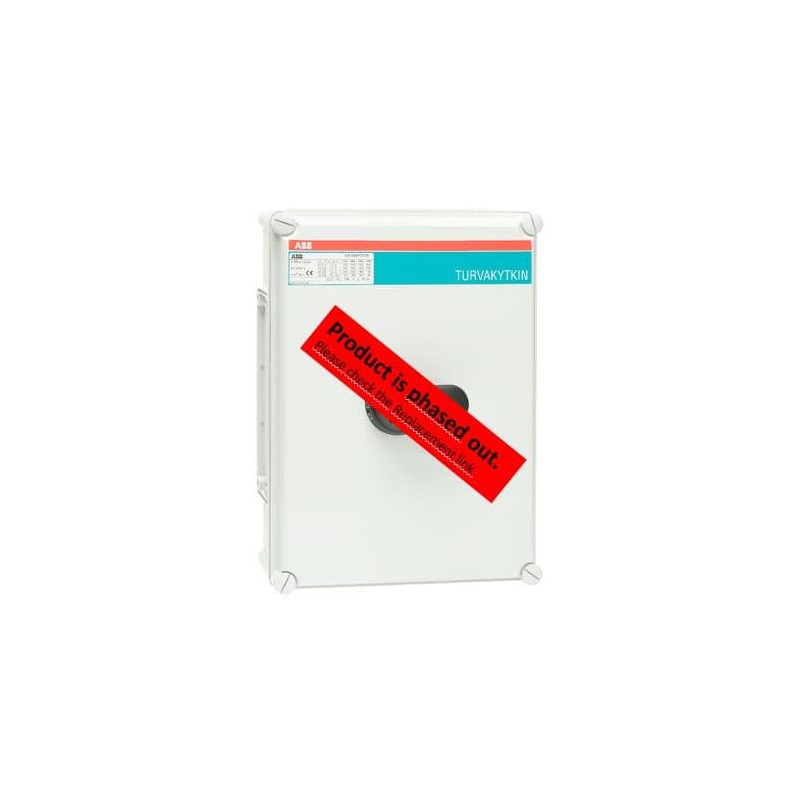

OT160EFCC4B 1SCA022548R6620 ABB Int. Disconnector in box OT160EFCC4B
OT160EFCC4B
1SCA022548R6620
ABB
Int. Disconnector in box OT160EFCC4B
OT160EFCC4B Enclosed Switch Disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| Material Compliance | |
| RoHS Declaration | 1SCC301148D0202 |
| RoHS Information | Following EU Directive 2011/65/EU |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC340015M0004 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85363090 |
| Replacement Product ID (NEW) | OT160EVFCC4B |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 280 mm |
| Product Net Height | 380 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 5.4 kg |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 295 mm |
| Package Level 1 Depth / Length | 510 mm |
| Package Level 1 Height | 265 mm |
| Package Level 1 Gross Weight | 5.6 kg |
| Package Level 1 EAN | 6417019173955 |
| Technical | |
| Cable Cross-Section | 120 mm² |
| Cable Entry Position | Up/Down |
| Cable Outlets Per Side | II-flange / II-flange |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | acc. to IEC 60529 IP65 |
| Enclosure Material | Plastic |
| Handle Color | Black |
| Handle Type | Pistol handle |
| Maximum Mounted Auxiliary Contacts | 2 NO, 1 NC |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Number of Poles | 4P |
| Pollution Degree | 3 |
| Power Loss | at Rated Operating Conditions per Pole 6.5 W |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 750 V |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 135 A |
| (690 V) 80 A | |
| Rated Operational Voltage | Main Circuit 750 V |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC340001D2703 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
