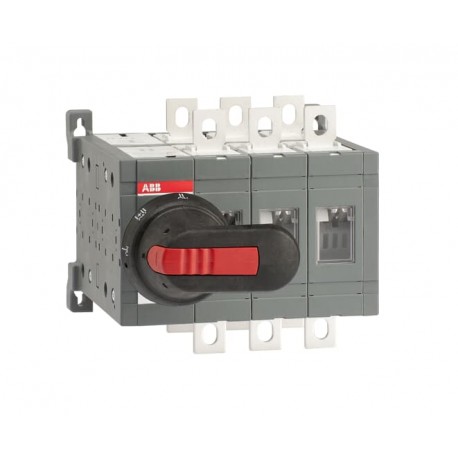

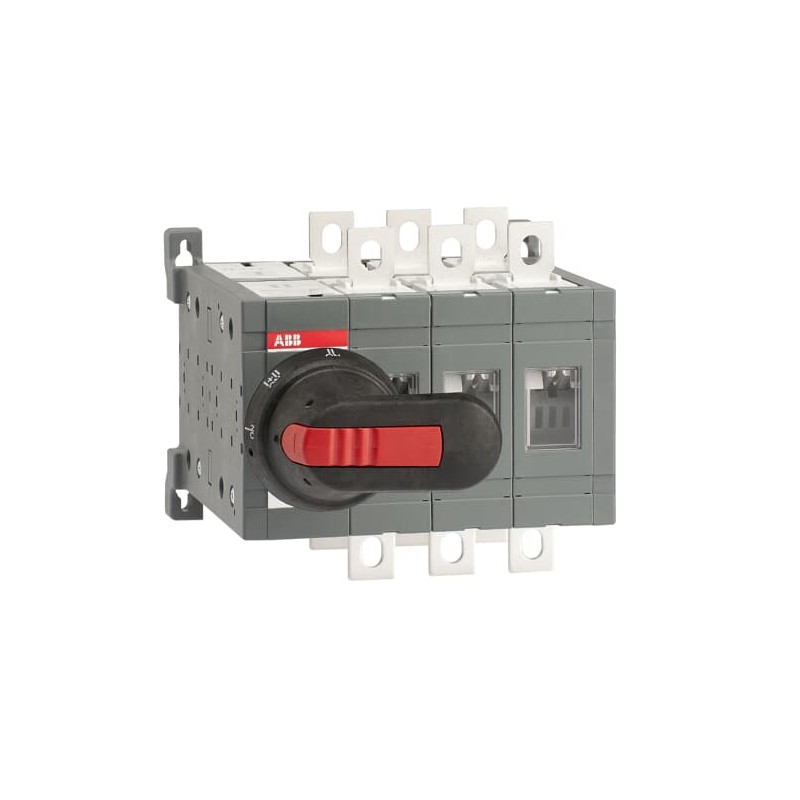

1SCA108468R1001 ABB Switch switch I-II OT160E03CLP
1SCA108468R1001
ABB
Switch switch I-II OT160E03CLP
I-II OT160E03CLP Switch
OT160E03CLP CHANGE-OVER SWITCH
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| End Of Life Disassembling Instructions | 1SCC303050M0201 |
| Environmental Information | 1SCC303050D0201 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 276e299c-1533-44e9-9403-900e98281533 Finland |
| Simplified SCIP | 249b2760-e3be-47fa-84e3-a829e72a9e18 Germany |
| 7c50d635-e36f-41ba-8eff-601d772e54b4 Norway | |
| 8a6ce3c1-a32e-4ceb-b335-f5b5ca665319 Belgium | |
| 484b0466-a977-4f35-9f91-17f6859572c9 Italy | |
| 651b0580-7d67-41f8-a21e-1b60f6c4b281 Sweden | |
| b4edb1e8-3d52-4d58-afb9-f5ea6f273997 Poland | |
| 452233ca-9d3a-4004-b3f3-f1c7ac55122d Bulgaria | |
| 661b0550-4d10-4a0b-87f3-4b89b40aecd9 Hungary | |
| 4bcfaf26-92a3-40b5-82b4-eda162e6ce1c Spain | |
| 0f622423-b402-4b7b-85fe-bc63bfd93bc9 Belgium | |
| c63109a1-e750-4ab2-8f6a-2bb84d23294f Hungary | |
| d81fd45d-c632-496b-9209-fde0f1771845 Greece | |
| 1bcb059b-09e0-4547-b557-76af480a52a5 Estonia | |
| 6ffba3d1-dd8d-45be-a418-eaea8532a489 Portugal | |
| d446bc31-7f78-439b-bc48-a6c092fcd47b Germany | |
| ecc30dd4-508b-436f-bbde-a58f13933c50 Sweden | |
| 148810d6-6db9-4035-bf4e-99b0807c653c France | |
| a3504bf4-e0e9-4f80-b975-dc6d374bea92 France | |
| 23121b52-de34-4a75-bdc5-2fb0bd2b9477 Germany | |
| 247c8dfc-cd2d-40af-b567-fe6461da4598 Denmark | |
| 664c3f72-c1a3-4c61-818b-2b4d90a882f2 Poland | |
| b23cea51-c8f9-49e6-b2ce-10f511a0ed42 Netherlands | |
| ab4d7271-3324-4285-a0a2-d6a3f3665176 Poland | |
| a646d1ea-0991-4827-8fec-397db30e4572 Czech Republic | |
| 272824cc-2b0c-4d06-b03c-d918a8ea5c1d Croatia | |
| 6c506c72-d027-4318-b1c1-14133060d181 Germany | |
| 41ff0bdc-4708-492d-b65e-7917e42ccde8 Germany | |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC303003C0201 |
| Instructions and Manuals | 1SCC303008M0208 |
| Environmental Product Declaration - EPD | 1SCC303082D0201 |
| Environmental | |
| Degree of Protection | Front IP20 |
| Environmental Information | 1SCC303050D0201 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 170 mm |
| 6.69 in | |
| Product Net Height | 150 mm |
| 5.91 in | |
| Product Net Depth / Length | 160 mm |
| 6.3 in | |
| Product Net Weight | 3.1 kg |
| 6.83 lb | |
| Container Information | |
| Package Level 1 Units | box 1 box |
| Package Level 1 Width | 186 mm |
| 7.32 in | |
| Package Level 1 Depth / Length | 300 mm |
| 11.81 in | |
| Package Level 1 Height | 185 mm |
| 7.28 in | |
| Package Level 1 Gross Weight | 3.4 kg |
| 7.5 lb | |
| Package Level 1 EAN | 6417019399546 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 160 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 160 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle Color | Black |
| Handle Type | Handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 2.4 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 160 A |
| (500 V) 160 A | |
| (690 V) 160 A | |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 160 A |
| Rated Operational Power AC-23A (Pe) | (380 ... 415 V) 90 kW |
| (500 V) 110 kW | |
| (690 V) 160 kW | |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| 03 (Left Side) | |
| Terminal Type | Screw Terminals |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Transition Type | Closed |
| Technical UL/CSA | |
| Tightening Torque | acc. IEC 60947-1 15 ... 22 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC303045D2702 |
| DNV Certificate | 1SCC303138D0201 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5290 >> Disconnect switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3641600 |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated operating voltage (EF001435) | 1000 V |
| Rated permanent current at AC-23, 400 V (EF011777) | 160 A |
| Rated permanent current at AC-21, 400 V (EF009165) | 160 A |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Rated operation power at AC-23, 400 V (EF007027) | 90 kW |
| Switching power at 400 V (EF009166) | 90 kW |
| Number of poles (EF001391) | 3 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Built-in device plug-in technique |
| Suitable for front mounting 4-hole (EF007247) | Yes |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Suitable for intermediate mounting (EF007264) | No |
| Colour control element (EF007167) | Black |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | Yes |
| Type of electrical connection of main circuit (EF006819) | Other |
| Degree of protection (IP), front side (EF003118) | IP20 |
| Degree of protection (NEMA) (EF011959) | 1 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG TRANSFER SWITCHES 2023 EN.pdf | 42 Mbytes |
|
