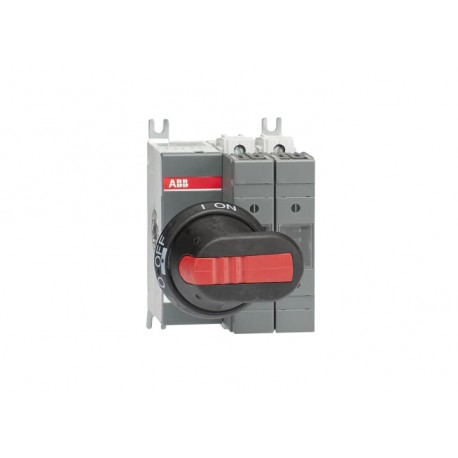

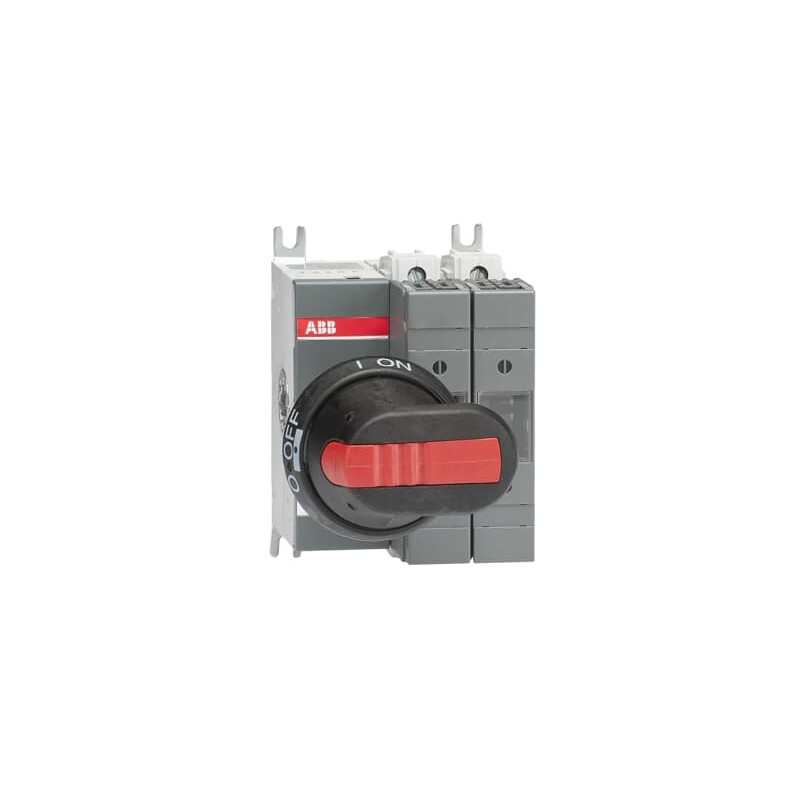

1SCA116715R1001 ABB Fuse switch OS63GD02P
1SCA116715R1001
ABB
Fuse switch OS63GD02P
OS63GD02P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 008a8873-967b-4f0c-af24-a3c242b46594 Finland |
| Simplified SCIP | 11c0a3d9-be84-4b72-b111-8be567cf7b5a Germany |
| 3ea2d577-3d37-498e-ba17-04ec8b497a96 Estonia | |
| f8b6cf52-d51d-497a-b1bf-85a5064be01b Portugal | |
| 8db044de-4b8e-42e0-87f2-2323834fcaee Greece | |
| cfc6da0f-de24-4d50-ad97-02ac3defdba9 Belgium | |
| 09a2bb68-ae81-4583-baf1-d38930ca219f Italy | |
| 597a1711-6079-42e2-a5a7-ca9bcd0f52dd Bulgaria | |
| 15efd227-7c33-4125-905b-4efab6d58b81 Poland | |
| 3d092957-43ee-4b0f-bcf3-2c755d78b964 Croatia | |
| c21a491e-5269-4fae-955a-e8e18f477aa8 Belgium | |
| 62616ed7-e3ad-4c16-9b53-c74bb851adb0 Spain | |
| 3003477b-8d14-418e-a3b2-d6fb07a53ea1 Sweden | |
| 5e0c9741-4a00-4f5c-90a8-639a78f0a759 Poland | |
| 557c764b-a096-439f-99d0-fa3b4937f13a Germany | |
| b896d985-e30b-424b-9947-95d62753701e Czech Republic | |
| be4b0b58-c567-4e6f-ae01-b19cc7f11b9d Hungary | |
| 2c375dd6-4b94-4c16-9823-a70416ca0f09 Denmark | |
| fa4b861e-85dc-4f77-8d45-fae8d5ad07b5 Germany | |
| dc433641-d729-45e3-9ede-6ea572ee7b73 Germany | |
| 4c719ce4-a15a-464c-a671-3e55b5e6fd46 Germany | |
| a9fcb3ee-3aa4-46af-9385-2187197d8d69 Norway | |
| 1cd1222e-657b-49b7-bcc5-11054e450318 Hungary | |
| d3f98985-2a68-4841-8e06-355b5d477384 Netherlands | |
| c23cc9aa-b2cd-4bc5-b71b-e0089872aab5 Poland | |
| c6d04c66-c06f-464a-8cac-65ce0a5fe6aa France | |
| 49f1143f-4ab7-4314-a717-e757baa84872 France | |
| f57689a3-27cd-4235-89b8-789b5994affc Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD02.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 88 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.915 kg |
| 2.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.2 lb | |
| Package Level 1 EAN | 6417019488028 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 63 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 63 A |
| (690 V) 63 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 02 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 63 A |
| Rated operation power at AC-23, 400 V (EF007027) | 55 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | NH000 |
| Number of poles (EF001391) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
