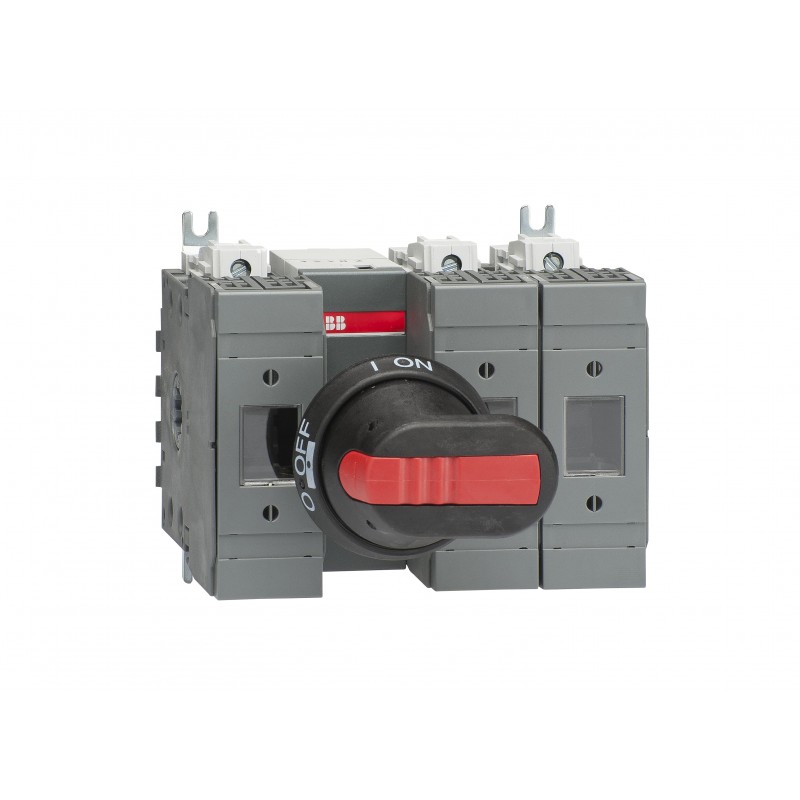

1SCA115449R1001 ABB Fuse switch OS60GJ12P
1SCA115449R1001
ABB
Fuse switch OS60GJ12P
OS60GJ12P FUSIBLE DISCONNECT SWITCH
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 0cbee854-ca99-48f3-b24d-c01c47fe8f68 Finland |
| Simplified SCIP | a81da884-4da0-4f0c-a8a9-d22aa8fa77e9 Germany |
| 2024e516-c852-48fe-8ec6-57d256c62b24 Greece | |
| 010061d3-a98a-4879-a291-30256a905859 Bulgaria | |
| e2b1aa6b-ea4e-408b-b443-d6408d4ef11b Norway | |
| 778b13f7-20e5-44ee-8a35-283f64dfa248 Belgium | |
| 4fdb41d8-8806-41af-9993-a4814f0cad25 Poland | |
| dc35cc78-f5ab-453b-b706-ebca289cdf40 Sweden | |
| eb01543c-7170-4169-9768-d5e745295a0b Poland | |
| 5f220204-b33d-4a45-a896-a853aacccc5c Spain | |
| f190fef8-2332-4e61-8648-ed32c6c9df28 Belgium | |
| 9412812c-56ab-4173-a98b-c6b5adf783f1 Portugal | |
| 93c5760e-63d8-4a23-b1ec-a4c357aa1fc5 Germany | |
| 21509c6f-50d7-4985-ac8f-905af10afc8d Estonia | |
| 82671fb5-1393-4af1-ac0f-3b0f69ab6436 Germany | |
| 5a08171e-3be9-4fb2-a55f-865e7fe33fca Sweden | |
| d1415918-fcc8-49c1-891c-ced11f2706c9 France | |
| 4016c4d8-5304-4fea-b6b8-2cdbabc39d44 Czech Republic | |
| 049b21a1-a5c6-45e0-9f53-784de08308d0 Hungary | |
| ff1ac8d3-31ce-4320-9ea6-a94170516b27 Denmark | |
| 13d37914-a414-4b0b-9b1a-f48400b4b9e3 Croatia | |
| 50d61ddc-919e-4859-aca1-e3f77f8dcb2d Germany | |
| 3b2ce002-ee9d-4d12-9bb2-14f05b41453f Germany | |
| c10b1492-84d2-4d1f-98ec-cf61397eb6f4 Poland | |
| 0a512428-2f75-44cd-98c0-b2fbcc2097c2 Italy | |
| 7f42dde2-7b68-432f-a167-42c82814547b Netherlands | |
| 8d9be28a-fd35-4535-99d2-a3cf576e4de9 Hungary | |
| 73fe878e-a4dd-44f6-80c2-28c1803c0d3d France | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS60GJ12.stp |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 145 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 118 mm |
| Product Net Weight | 1.3 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 220 mm |
| 8.7 in | |
| Package Level 1 Height | 150 mm |
| 5.9 in | |
| Package Level 1 Gross Weight | 1.45 kg |
| 3.2 lb | |
| Package Level 1 EAN | 6417019478074 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 63 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 63 A |
| Fuse Size | 60 A |
| Fuse System | Class J |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 2 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 60 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 60 A |
| (690 V) 60 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 60 A |
| (690 V) 60 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 60 A |
| (690 V) 60 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 18.5 kW |
| (400 V) 30 kW | |
| (415 V) 30 kW | |
| (500 V) 37 kW | |
| (690 V) 55 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Ampere Rating | 60 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 15 Hp |
| (acc. to UL 480 V) 30 Hp | |
| (acc. to UL 600 V) 50 Hp | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Tightening Torque UL/CSA | Wire-Clamp 30 in·lb |
| Wire-Clamp 35 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | cULus certificate OS60GJ_ |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| E-Number (Finland) | 3601579 |
