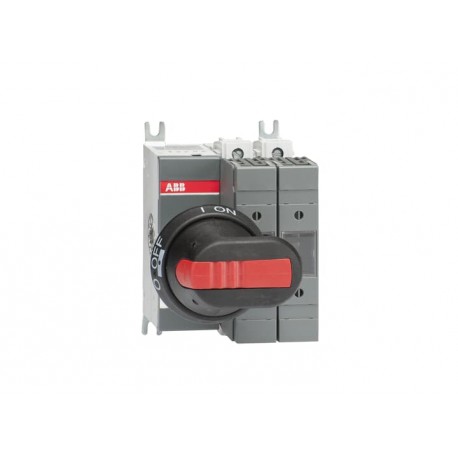

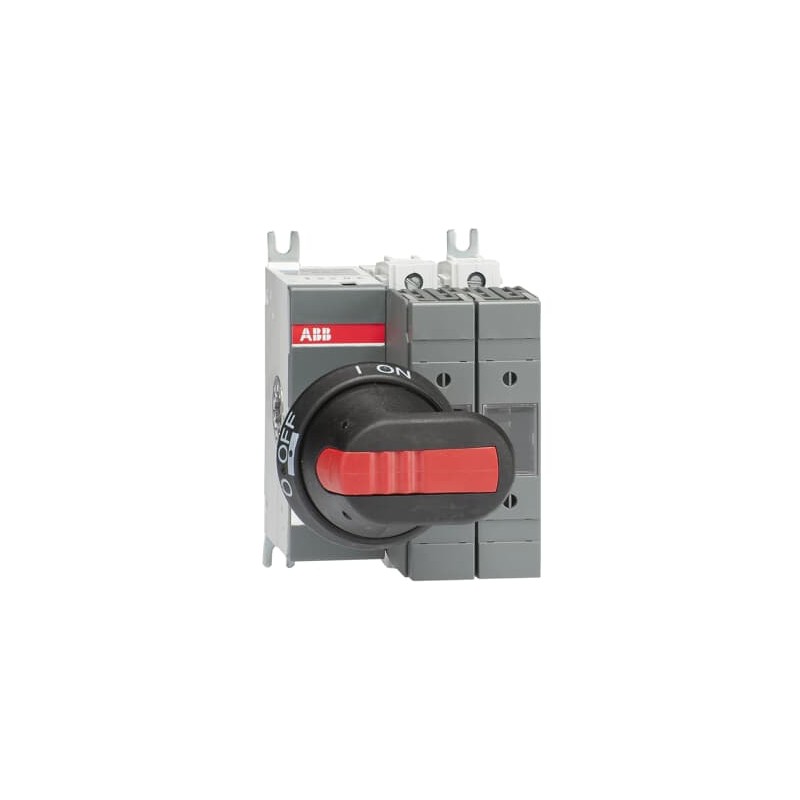

1SCA116714R1001 ABB Fuse switch OS32GD02P
1SCA116714R1001
ABB
Fuse switch OS32GD02P
OS32GD02P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311048M0201 |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 23dd64f8-ac93-48e6-98fb-a5aa3d1a5fd7 Finland |
| Simplified SCIP | 89edb638-df58-4683-8d0d-a26c86758b7e Germany |
| 8819087e-318c-4570-8292-4de4259a2f27 Poland | |
| 7b970b99-202d-40d5-9b20-e4caa1e5df67 Italy | |
| 2c733014-f7d2-44fa-b607-23bcc3c58837 Norway | |
| f9eb0029-178e-4999-a590-918d80aa347a Belgium | |
| aafbf552-7ae8-45ea-a02d-2f6128a66789 Germany | |
| b382755d-a39f-4cfb-b248-7a43299e879f Germany | |
| 441425f0-02b1-4e58-9c66-e9b7f142e3ea Denmark | |
| e95c2b13-d981-4800-88d9-4b8c05bfb865 Sweden | |
| 56f64634-3305-42f6-9c1a-bdd6a82a1c58 Czech Republic | |
| d8410fe6-b98f-4591-97d7-31095d95064a France | |
| c3f0c05e-d00b-4b29-99e2-bd19c2c44d4c Poland | |
| 1219d353-bbb3-483c-bc2a-539cf76b6fd5 Netherlands | |
| 308a3764-2a4b-4995-a0c1-1afcefce72b9 Greece | |
| 5a4f3268-e174-4401-9de0-e6c5690364a7 Poland | |
| ce74b7dd-d0f6-44b0-be19-df4013d9a07b Portugal | |
| 01b83774-d6f5-45e6-92c0-f35a8f32217c Croatia | |
| bff93269-ffef-4957-b271-27508b93bc3c Sweden | |
| 2c6da76e-90a1-4112-b9ab-8127c020b541 Bulgaria | |
| 3e8cdeb0-65e5-4e58-b41f-a67b38c3aa23 Hungary | |
| 2523dcd1-8d9f-4de4-a831-0eaeb0ad618b Estonia | |
| cec0fc69-f7c3-4d08-a620-f68ae696c601 Germany | |
| 065fed97-5ff6-415c-87cd-9cb1587eb462 Germany | |
| 69f4589f-5a2e-4b57-9aef-cea76c5cd720 France | |
| eb7c1c4a-545d-4971-bf77-cd4d60f6f203 Hungary | |
| 3f105a76-002a-4378-b0b0-eb923b1fe520 Belgium | |
| d3e7d1db-2710-453e-a96c-97303c965ce5 Spain | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311036M0212 |
| Mechanical Drawings | OS63GD02.igs |
| Environmental Product Declaration - EPD | 1SCC311195D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 88 mm |
| Product Net Height | 112 mm |
| Product Net Depth / Length | 121 mm |
| Product Net Weight | 0.915 kg |
| 2.02 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 170 mm |
| 6.7 in | |
| Package Level 1 Depth / Length | 190 mm |
| 7.5 in | |
| Package Level 1 Height | 145 mm |
| 5.7 in | |
| Package Level 1 Gross Weight | 1 kg |
| 2.2 lb | |
| Package Level 1 EAN | 6417019488011 |
| Technical | |
| Cable Cross-Section | 2.5 ... 25 mm² |
| Connecting Capacity | Stranded 2.5 … 25 mm² |
| Flexible 2.5 … 25 mm² | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 32 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 32 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH000 |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 2P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 1 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 32 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 32 A |
| (690 V) 32 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 7.5 kW |
| (400 V) 15 kW | |
| (415 V) 15 kW | |
| (500 V) 18.5 kW | |
| (690 V) 22 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 2.5 kiloampere rms |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 02 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Technical UL/CSA | |
| Wire Stripping Length | Main Circuit 12 mm |
| Main Circuit 0.47 in | |
| Recommended Screw Driver | Main Circuit Hexagon 4 |
| Tightening Torque | 3 N·m |
| 4 N·m | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311208D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS32-63G_ 2016.pdf |
| Declaration of Conformity - CE | 1SCC311136D2703 |
| DNV GL Certificate | 1SCC311125D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 32 A |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 2.5 kA |
| Suitable for fuses (EF006692) | NH000 |
| Number of poles (EF001391) | 2 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
