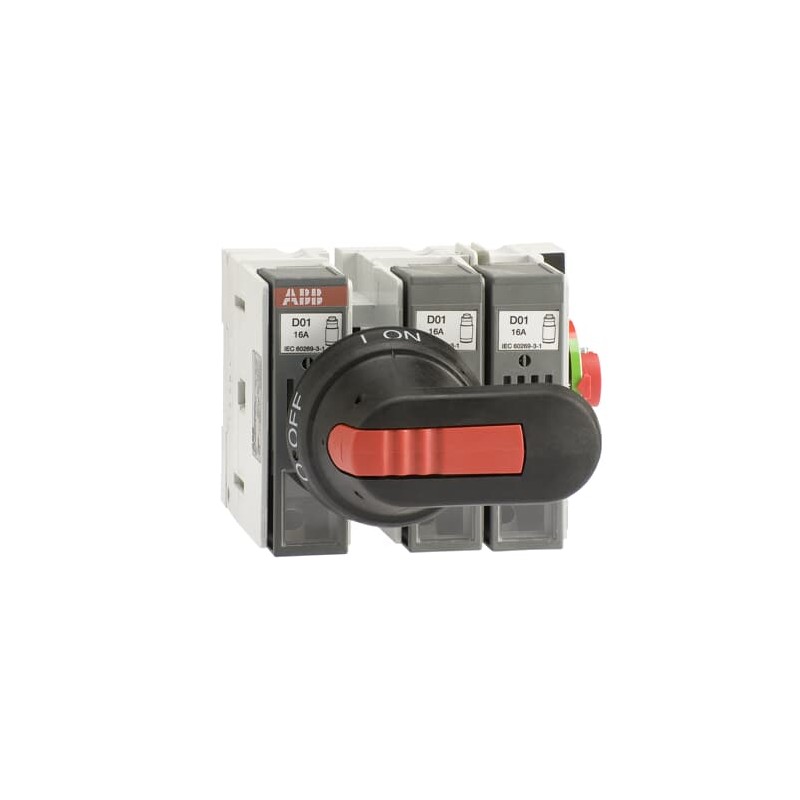

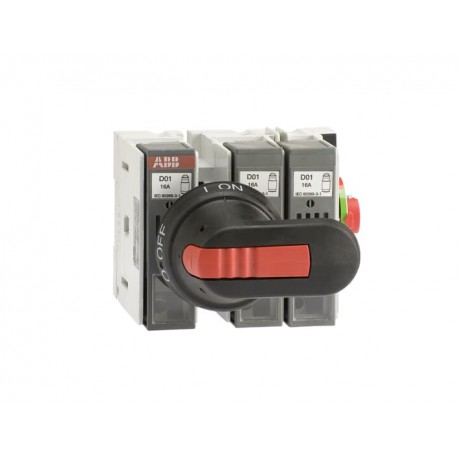

1SCA108639R1001 ABB Fuse switch OS25FFS3010
1SCA108639R1001
ABB
Fuse switch OS25FFS3010
OS25FFS3010 SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Circular Value | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Information | 1SCC011020D0201 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country of Origin | Lithuania (LT) |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311030M0202 |
| Dimensions | |
| Product Net Width | 129 mm |
| Product Net Height | 97 mm |
| Product Net Depth / Length | 120 mm |
| Product Net Weight | 0.7 kg |
| Technical | |
| Rated Operational Current AC-21A (Ie) | (500 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Current AC-22A (Ie) | (500 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Current AC-23A (Ie) | (500 V) 25 A |
| (690 V) 25 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 5.5 kW |
| (400 V) 11 kW | |
| (415 V) 11 kW | |
| (500 V) 15 kW | |
| (690 V) 22 kW | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 25 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 25 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 1 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Power Loss | at Rated Operating Conditions per Pole 1.3 W |
| Pollution Degree | 3 |
| Handle Type | Handle and shaft included |
| Switches Operating Mechanism | 30 (Right Side) |
| Position of Line Terminals | Top In - Bottom Out |
| Bottom In - Top Out | |
| Fuse Size | 10x38 |
| Fuse System | NFC |
| Operating Mode | Side Operated |
| Standards | IEC 60947-3 |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Cable Cross-Section | 0.75 ... 10 mm² |
| Terminal Type | Screw Terminals |
| Tightening Torque | 2 N·m |
| Rated Current (In) | Main Circuit 25 A |
| Technical UL/CSA | |
| Tightening Torque | 2 N·m |
| Environmental | |
| RoHS Status | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC311129D2702 |
| DNV GL Certificate | 1SCC311125D0203 |
| REACH Declaration | 1SCC011021D0201 |
| UL Certificate | No certification needed |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 240 mm |
| Package Level 1 Depth / Length | 108 mm |
| Package Level 1 Height | 130 mm |
| Package Level 1 Gross Weight | 0.7 kg |
| Package Level 1 EAN | 6417019419039 |
| Classifications | |
| Object Classification Code | Q |
| ETIM 7 | EC001040 - Fuse switch disconnector |
| ETIM 8 | EC001040 - Fuse switch disconnector |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 25 A |
| Rated operation power at AC-23, 400 V (EF007027) | 22 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 1 kA |
| Suitable for fuses (EF006692) | 10x38 mm |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Screw connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Right |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
