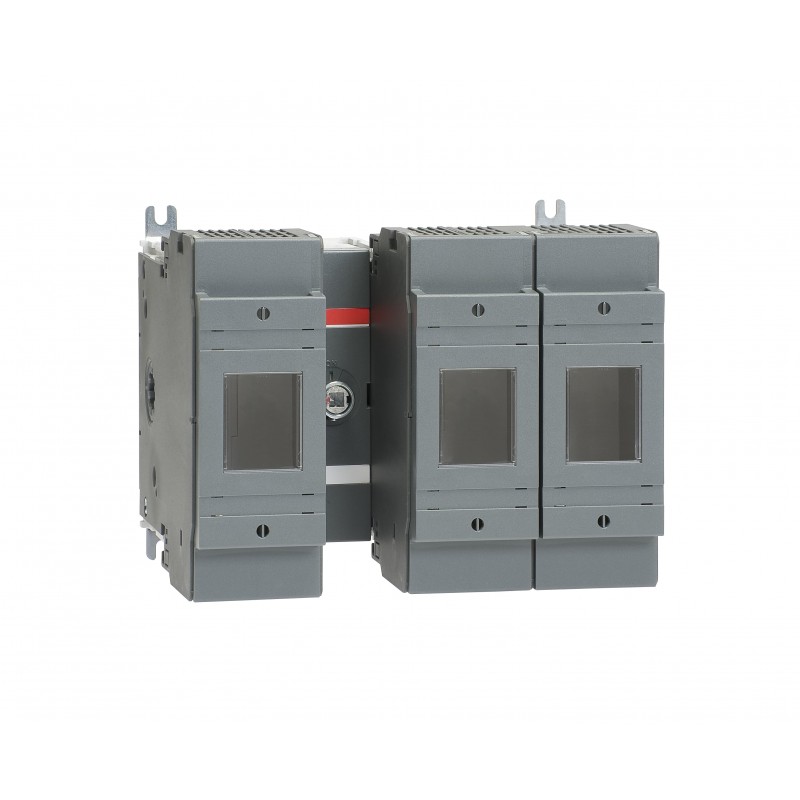

1SCA102207R1001 ABB Fuse switch OS250D12BBP
1SCA102207R1001
ABB
Fuse switch OS250D12BBP
OS250D12BBP SPECIAL CONNECTED SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d8cd68ef-e59b-4e30-91c3-a0b30c3d89e8 Finland |
| Simplified SCIP | e648dc20-620f-4f55-8824-ff2476bf6251 Germany |
| e525ce42-3f18-4cd0-a5d4-227b02d27205 Portugal | |
| 0c5ff59f-b7f3-4790-8c83-1eb90316e9cc Greece | |
| fa9a79fc-44cf-446e-87a0-bcba1f289c14 Belgium | |
| b39a0df6-2655-491b-9fe0-72ab07318dae Norway | |
| dec00cff-e96e-4c58-9480-ca12d04828d7 Bulgaria | |
| 431e470d-4a32-4825-9f4e-2996e3f94836 Sweden | |
| 7144e06d-21e4-417e-9519-a0ba6f1f3a39 Croatia | |
| cb63a121-377c-4fea-a2c9-d0b5b0ed7ffc Czech Republic | |
| a9e4dfd9-0a5b-40a0-a429-5ea5636c042d Poland | |
| 594e7467-62b5-4f3f-9892-0bf788210944 Hungary | |
| 412d97b4-6860-4ae7-b6ca-7321c2456c12 Spain | |
| 146f6854-5657-42c8-b464-468f4eae91ca Belgium | |
| a3b3dced-bec6-44a3-bcab-d557fef2e748 Estonia | |
| 29e6cb1e-1f64-4798-b3f3-250fbe9bfb22 Poland | |
| 56345428-dc83-4122-baf1-26523b5e8aa4 Hungary | |
| 757683e3-04ee-4552-8d80-b9a97611ac77 Sweden | |
| ceba450f-7698-4891-b5e9-ef2a55beb8f8 Germany | |
| d1597232-05ef-47cd-8ac3-6ea184e24bdd France | |
| 41ed7efd-3a73-4683-9fd4-b340a34a8a29 Germany | |
| 98a3028c-eff7-43c1-8095-94ddb4378e09 France | |
| be248206-fe87-4311-a328-7ac0c95a5358 Denmark | |
| 081caeaa-3642-4e6d-8751-ce1cb396ddd9 Germany | |
| 435cbd80-4ae4-46cb-b436-ed5cf994e125 Italy | |
| 96f79181-1535-4459-985a-a6d26412bb16 Netherlands | |
| debbc91b-bb73-4695-abc9-73b59f9a7fac Poland | |
| db4d100f-6c48-4a71-ad98-9b511671393f Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os250d12bbp.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 208 mm |
| Product Net Height | 149 mm |
| Product Net Depth / Length | 203 mm |
| Product Net Weight | 3.0 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 204 mm |
| Package Level 1 Depth / Length | 275 mm |
| Package Level 1 Height | 167 mm |
| Package Level 1 Gross Weight | 3.0 kg |
| Package Level 1 EAN | 6417019369877 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | NH0 |
| NH1 | |
| Fuse System | DIN |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Back In - Back Out |
| Power Loss | at Rated Operating Conditions per Pole 13 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 ... 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| Declaration of Conformity - CE | 1SCC311120D2702 |
| DNV GL Certificate | 1SCC311132D0201 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
