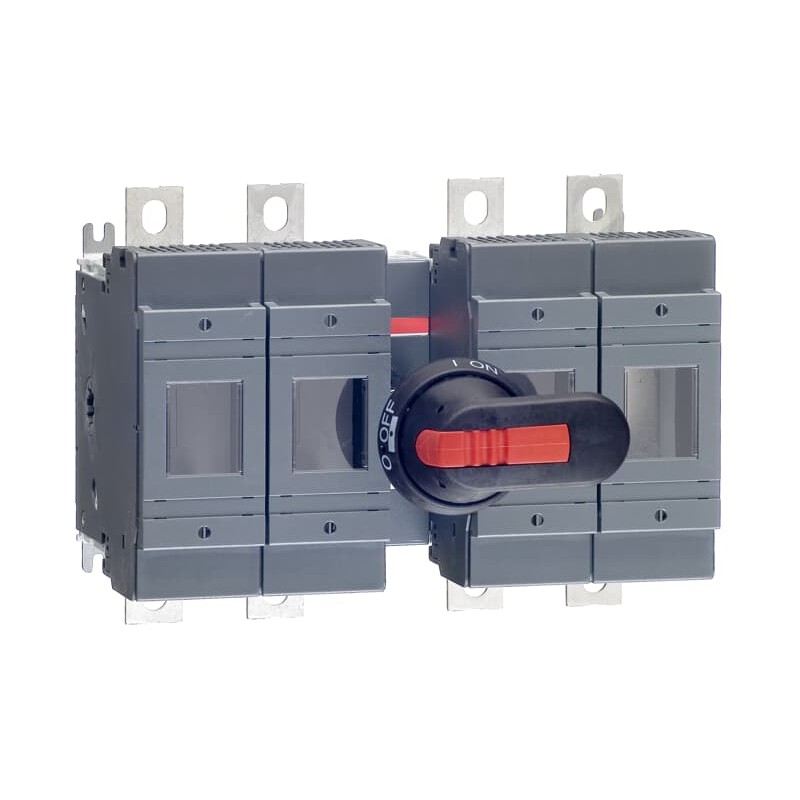

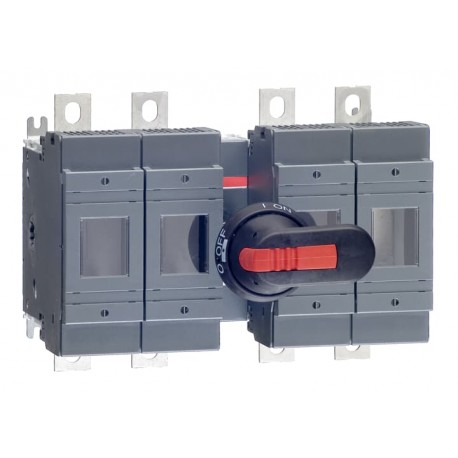

1SCA022778R9940 ABB Fuse switch OS250B22N2P
1SCA022778R9940
ABB
Fuse switch OS250B22N2P
OS250B22N2P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d55b420c-b553-476d-a7ce-63964ca41194 Finland |
| Simplified SCIP | d4085d99-5775-4f62-82f2-f4ea73b22e51 Germany |
| 19f70deb-3f82-4d15-8847-2e22e0ec568e Hungary | |
| 167a0adc-8c9f-4fa4-9486-df7789d3f05b Estonia | |
| cc2ceeae-0a17-4a65-86df-c125e2c7d9c5 Greece | |
| 31f8adc6-7fca-4f40-ba29-7d8239acebe1 Norway | |
| 17097258-01ce-47b5-ac9c-77e1d0be6579 Italy | |
| a2cc0628-b22a-463a-b0bf-9f8f2e1910e7 Bulgaria | |
| 58835f13-efca-475a-85bb-308f20ad0323 Czech Republic | |
| fa37a918-59b3-4330-b39c-827dcaeee3da Poland | |
| 63b1b1a6-9335-4c05-b78a-26377192c3a2 Croatia | |
| 87e1541a-dae3-4533-8ae7-d951e2433014 Sweden | |
| 14969bd2-b74e-4f2f-a20a-a2d6d0d72786 Poland | |
| 1fda02d9-09b1-45c9-8186-cdc2ba1d6432 France | |
| d91607e8-09aa-4164-ab68-535e9b7fc47f Sweden | |
| edbffd1e-1fbd-4073-9d11-1e373799f75e Poland | |
| 0ad36c1e-cb93-459b-a06b-05e48e531a46 Portugal | |
| a6962a01-31c7-4c75-8d07-5c8e7c7f6e09 Hungary | |
| 4baf93e5-3f8f-44cd-b0c7-fc8fb9dbb0e9 France | |
| 267b6279-f7d5-48d0-b17b-3e42be87ab09 Denmark | |
| 7846767a-efb6-4fc0-9743-f6cc2c876166 Germany | |
| 93f87615-2c32-4ebe-aab1-362bbff22382 Germany | |
| 1c0d98ac-fe9a-4758-bbdd-578725cb3da4 Belgium | |
| 51c9140d-2fdb-4a36-8674-312f86e5b27f Germany | |
| da5b0409-2c60-4be4-9fb0-2e90e515dd03 Netherlands | |
| 787f9194-ece7-474a-b582-02bd46c54442 Belgium | |
| b88f6be6-24d9-4b99-94b8-6a7a16e504b8 Spain | |
| fc7fe4a0-4532-4126-94d7-6979946bea8b Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os250b22.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 262 mm |
| Product Net Height | 193 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 4.8 kg |
| 10.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 270 mm |
| 10.6 in | |
| Package Level 1 Depth / Length | 310 mm |
| 12.2 in | |
| Package Level 1 Height | 200 mm |
| 7.9 in | |
| Package Level 1 Gross Weight | 5.1 kg |
| 11.3 lb | |
| Package Level 1 EAN | 6417019253565 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | B1-B3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 ... 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311095D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
