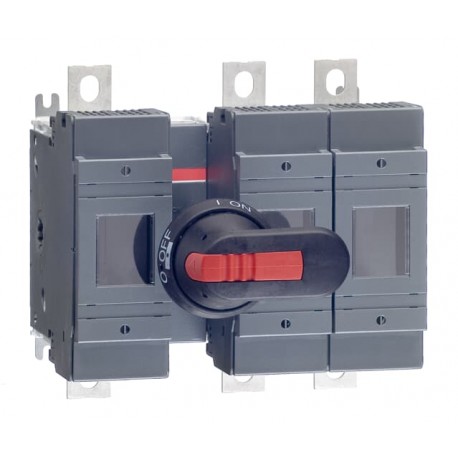

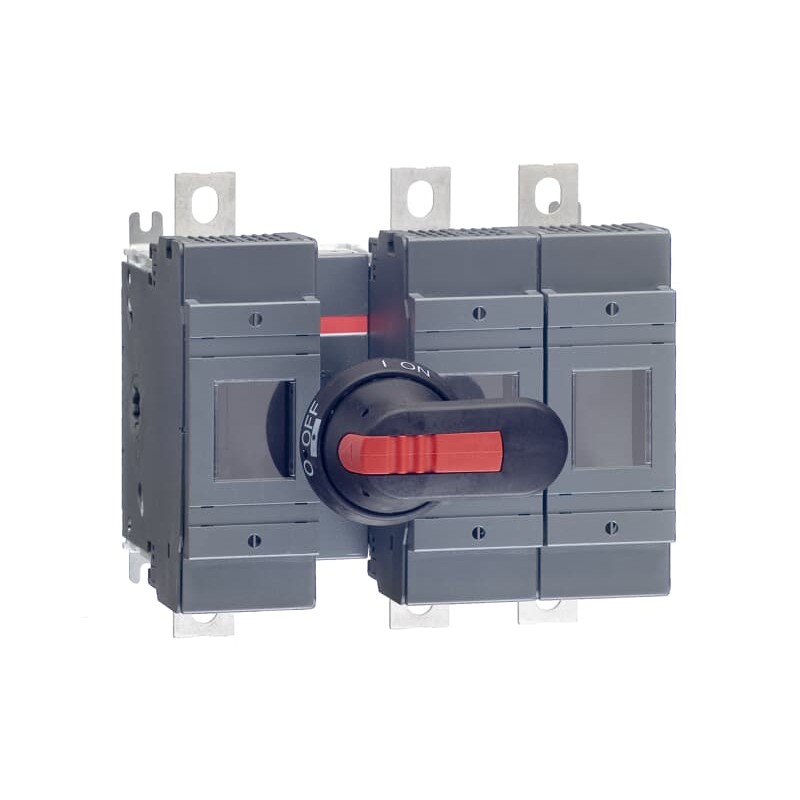

1SCA022778R9860 ABB Fuse switch OS250B12P
1SCA022778R9860
ABB
Fuse switch OS250B12P
OS250B12P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 1fe30687-ed6a-457c-ab6e-d906c0afeff6 Finland |
| Simplified SCIP | 01a71a3a-1ca6-4074-a8fb-713aea6ffcbf Germany |
| 393f7a1c-0099-48ca-8516-e59481b2781b Belgium | |
| 49e3d2e7-372c-4227-9574-ae51309db567 Netherlands | |
| 273dfbf4-6ef5-4a89-a751-e723f31cabc2 Germany | |
| 8d3a744a-f417-4264-8b55-855ac00397b2 Spain | |
| 9a1ae041-9b28-498c-9077-288325426aaa Belgium | |
| 5a0cad91-d64c-4f1b-a95d-51f703b8d9ed Sweden | |
| 3eb5d171-3e64-480a-8cfa-8ce747ef1280 Estonia | |
| da8ff484-6ba1-4306-99d8-c6e83486603c Hungary | |
| 904fca88-041a-46fc-b076-ab8eb0a7466e Greece | |
| 6540f877-b5cb-489b-8164-6fe3b0f973de Norway | |
| a9a41499-6e8c-474b-a5f8-8f6eead2969a Italy | |
| 787346f3-5482-449c-9773-bb8beabb003e Bulgaria | |
| 15c07f5b-b760-4c71-a826-4c2cda649b24 Czech Republic | |
| 1da4bdd2-ccbb-4180-983d-8b786300aa24 Croatia | |
| 4c2aa6fd-33d0-47de-90ce-8ea25199e5c0 Sweden | |
| 78fefd16-966a-4aa0-ac01-3d0fc4dace0a Poland | |
| 6a1d4623-7af8-4d1a-b72f-86f408a09e29 France | |
| 86615d1e-e9aa-402c-990c-13ab1611d8d0 Poland | |
| 0672aa35-24f5-46d4-b22d-0a9c132072d1 Hungary | |
| f789fe87-309e-4eeb-8764-2dc7244a9a38 France | |
| c9cfc0d5-7f25-4392-9867-a061175d9f91 Portugal | |
| 52609eab-1f97-4976-bec5-9dcdd7daaa26 Germany | |
| 25f6bfbb-fe31-4f24-ab0f-73078619748d Denmark | |
| 3f088fa1-9623-44fd-9be1-95ea94b1f9a8 Germany | |
| 6e518be3-3b38-4e7a-aa3d-c8bb1c2ec710 Germany | |
| 0bbb4435-d158-4d61-81ec-c7548130c24d Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | OS250_D_B_12 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 208 mm |
| Product Net Height | 193 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 4.1 kg |
| 9 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.4 kg |
| 9.7 lb | |
| Package Level 1 EAN | 6417019253558 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Fuse Size | B1-B3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle and shaft included |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 ... 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311095D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated operation power at AC-23, 400 V (EF007027) | 250 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Suitable for fuses (EF006692) | Shape B1-B3 |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
