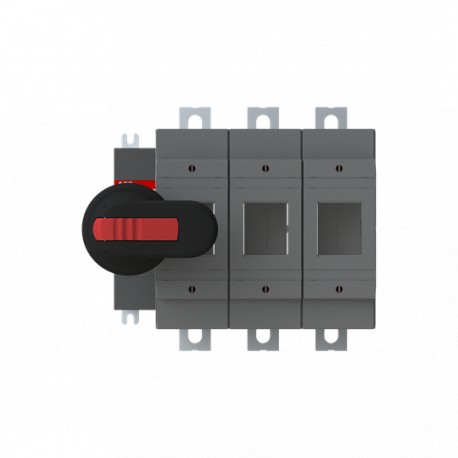

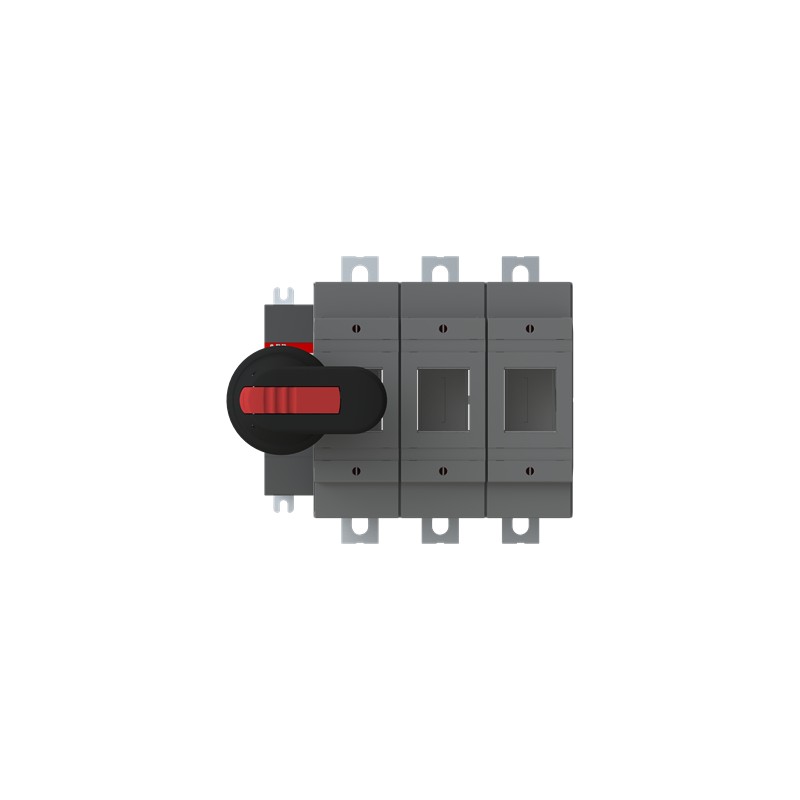

1SCA022750R6660 ABB Fuse switch OS250B03P
1SCA022750R6660
ABB
Fuse switch OS250B03P
OS250B03P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d2cae999-fd86-4895-8979-0fed50873488 Finland |
| Simplified SCIP | 95384450-4a4e-4110-9b48-5b937361bab2 Germany |
| fc3971e0-ece1-4879-bada-a9c1963aafb0 Portugal | |
| 8aab1c2a-c9f2-4a87-8919-53c8be7175a2 Greece | |
| f8d160c5-8296-44f3-93ca-0a661fda2ef5 Estonia | |
| 59521799-8598-4334-9313-e67b4a661a2f Poland | |
| 4dff16e9-47de-4cee-a3e0-e0a00e553628 Hungary | |
| a741ef2a-d23f-4895-8ea6-8cd70e6c812d Sweden | |
| d0a413d5-cff5-4562-acbc-81e39d735dce Norway | |
| a8252888-b810-4e6c-b7b9-7f61527efb3d Belgium | |
| 3e2d9096-a757-4333-9134-4d07ddd2d2e1 Poland | |
| 6632e7d3-fbf2-434a-b43b-0240c5eeb3b8 Czech Republic | |
| ac86de30-6796-49a8-a113-27b2c2a99ac1 Croatia | |
| 7e7596d2-218d-4c71-8134-a1c0b5a4ce2e Poland | |
| 45ee41cb-ff39-45be-9969-aca8d1f1ad50 Bulgaria | |
| fdefb50a-10a5-426b-a382-dfc17dd6ab8e Spain | |
| 1e38cb5e-51ae-493e-9cbc-04d6d8f2e4ed France | |
| d3cf517f-76a7-4292-af91-04ebc2a63144 France | |
| 2fc9af50-fd00-47fa-b657-c946bdbd3422 Hungary | |
| a604a26d-ecf8-4956-9953-cfd2deda71d5 Denmark | |
| c4577339-c171-4536-84b7-e17f93feb0b8 Germany | |
| a78b4690-2695-4402-b84d-a44c64065955 Italy | |
| 56da4bd1-0da9-4611-b96b-4c0a025edcf3 Netherlands | |
| ef36a463-7bb1-4c64-8831-89979427c180 Germany | |
| cd304c8c-4d1a-437a-a505-a0213ef8ee65 Belgium | |
| 9fb60684-c584-415f-9076-be2530ee864f Germany | |
| f784ee75-e079-41b0-abbf-e95088062f90 Sweden | |
| d1ad5396-7ac3-4bb7-8d5f-9ccbc1394b93 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | OS250D03.igs |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 208 mm |
| Product Net Height | 193 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 4.1 kg |
| 9 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.4 kg |
| 9.7 lb | |
| Package Level 1 EAN | 6417019243955 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | B1-B3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 ... 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311095D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated operation power at AC-23, 400 V (EF007027) | 250 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Suitable for fuses (EF006692) | Shape B1-B3 |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
