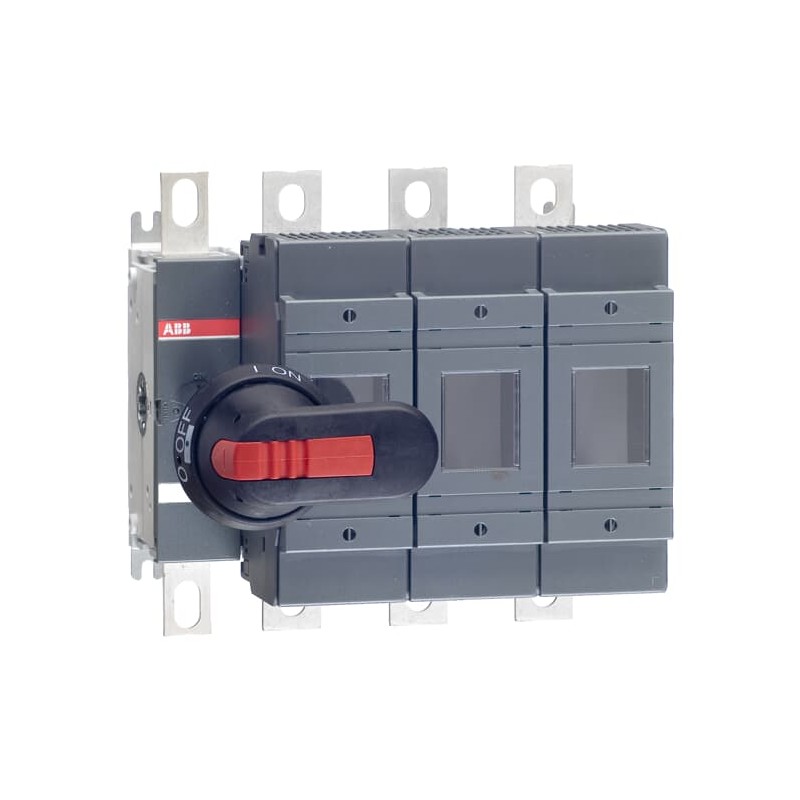

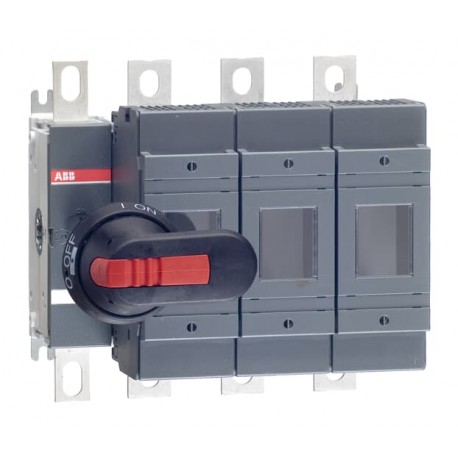

1SCA022750R8010 ABB Fuse switch OS250B03N3P
1SCA022750R8010
ABB
Fuse switch OS250B03N3P
OS250B03N3P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 6d6612cc-5dce-420e-8f2f-e2d4c1f1195e Finland |
| Simplified SCIP | 02cd077e-6bca-4748-b4e7-0d239be5a8f2 Germany |
| 5d4a1124-ee8a-4d5e-8f99-8f324cb1f1d7 Estonia | |
| 4579c1e2-d1ef-4b52-a676-abe3bdef949e Hungary | |
| b3d41431-849b-4ffc-bb24-6a359ae2b450 Greece | |
| f4f1aa0d-8c60-4d77-a27b-88646b4da0c4 Sweden | |
| b7389ac8-a354-4a67-a8c7-e90c1bbf092e Poland | |
| 6d9a68ea-f91a-4340-80d8-57786af238a5 Bulgaria | |
| d2b20239-6297-40d2-9a5e-57810d3eb938 Norway | |
| 57906d3a-f056-4963-b85e-75ef7203638c Czech Republic | |
| c4f14454-c57e-482e-8f40-9d29e01d99fa Croatia | |
| 17ec7593-f122-4a58-8496-2d4a5ba62c14 Spain | |
| 61d75881-eeed-4d2f-a7ac-bdc578f75852 France | |
| 7dc28e5d-a30e-4fe2-9768-86f34237e429 Sweden | |
| c37459f7-cbb1-4dc2-9925-c98aa5922062 Germany | |
| 8e7a0c3f-1793-4275-b730-c4de0400d5de France | |
| 5ccba679-f9ed-4702-9db9-de3ec25e8d0a Hungary | |
| a4fcfba6-e0a1-4383-a7f8-e8b8d8e97ede Portugal | |
| 0bd2665b-6e6b-47bf-a8c9-e198875d9802 Germany | |
| 7a1791c0-9188-431d-aaa9-12fa59a37f6f Denmark | |
| b553d163-5fc4-4302-9788-1f24a751a739 Germany | |
| f95a5d5c-dcc1-4d53-8c02-5ae541a6f614 Poland | |
| 557f0f17-fdcc-41b8-a977-87323982a254 Italy | |
| 797c7748-951a-4504-addf-2bb7fc80b4bd Belgium | |
| 312d7930-4a62-49a4-a4ff-9418fc1849a7 Poland | |
| d6a53ead-6926-4171-b1d9-914d7603fd8b Netherlands | |
| 90f3b022-ae6c-4451-805e-10c257bbee51 Belgium | |
| 81a8126b-40eb-4b60-a6d9-0f5fc0a1fc6a Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os250_b_d_03_n3.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 208 mm |
| Product Net Height | 193 mm |
| Product Net Depth / Length | 154 mm |
| Product Net Weight | 4.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 204 mm |
| Package Level 1 Depth / Length | 275 mm |
| Package Level 1 Height | 167 mm |
| Package Level 1 Gross Weight | 4.4 kg |
| Package Level 1 EAN | 6417019244099 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 250 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 250 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Type | Detachable Neutral Link Integrated Into the Mechanism |
| Fuse Size | B1-B3 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 17 W |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 100 kA |
| Rated Current (In) | Main Circuit 250 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 250 A |
| (690 V) 250 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 250 A |
| (500 V) 250 A | |
| (690 V) 250 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 75 kW |
| (400 V) 140 kW | |
| (415 V) 145 kW | |
| (500 V) 170 kW | |
| (690 V) 250 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Special Functions | Detachable Neutral |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening Torque | 30 ... 44 N·m |
| Technical UL/CSA | |
| Tightening Torque | 30 ... 44 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311095D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 250 A |
| Rated operation power at AC-23, 400 V (EF007027) | 250 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Suitable for fuses (EF006692) | Shape B1-B3 |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
