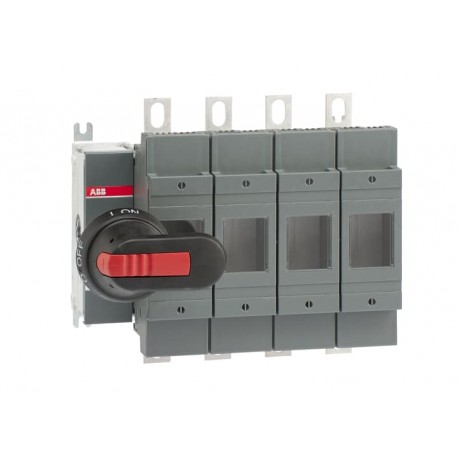

1SCA022758R9770 ABB OS200J04FP Fusible disconnect switch
1SCA022758R9770
ABB
OS200J04FP Fusible disconnect switch
Fuse switch OS200J04FP
OS200J04FP FUSIBLE DISCONNECT SWITCH
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 63ec3050-ad17-4639-88ea-8b7b62087c01 Finland |
| Simplified SCIP | 0ac48168-2054-4f35-b6df-e1daefdf32ac Germany |
| 77411b46-2943-4bc5-8118-375102525a73 Germany | |
| db90e7a3-5b9e-472f-965d-450ca88c22d3 Denmark | |
| 4cfcb4aa-821e-4425-9db0-b5e8e7609d4c Poland | |
| 2b78bc74-d6ed-4381-8ef9-baf1ec70d853 Italy | |
| 30b6ed5f-e7af-4f63-82ca-da2b26d4c823 Spain | |
| 183716c7-4615-47d9-8048-f15a07d90360 Belgium | |
| fde401a9-027c-47ca-8094-b6a03596464a Sweden | |
| 27bfcc03-2bb6-4486-b254-fcc6a4d78a8c Greece | |
| 655ea5cf-c36c-4f8c-8324-c4e708e4425e France | |
| adf29fcb-6d83-45d7-9115-82907357badd Poland | |
| 8724a90a-bed6-4ee2-8188-ac7b8f924a55 Sweden | |
| 3dc06891-a82d-4d2b-b9ed-0319864624b9 Bulgaria | |
| 34f8de42-b7f4-4ad6-95cd-403c40248fd9 Estonia | |
| 8dca6540-94b7-44c3-80b0-9039b500a751 Hungary | |
| 8cacab0f-e8fb-43eb-aac0-78fb3c50e0f1 Netherlands | |
| d45e7dd6-5e8b-4077-8bf5-c23062199872 Czech Republic | |
| 0c172ccd-3550-439b-9e9f-46fcf3d150d5 Croatia | |
| f99ede22-c38a-4f6a-b891-8ed979e39d23 Poland | |
| 19d48032-db1c-47f7-ab07-ea855ac26c06 Portugal | |
| 5268818c-aa53-47e3-800a-c814eb20ffce Germany | |
| a76e1aed-6341-4ffb-9d7d-727e7eca1307 Germany | |
| fd82b044-74ec-4b64-8ca9-51f9921099be Norway | |
| 3db427b8-0c74-4e97-83f0-27df8351edd6 Germany | |
| a5ec1328-5f82-49f9-8220-c420139cea54 Belgium | |
| 389cb8c2-cb0a-4232-81c0-b454d0ea3dec France | |
| 37d7d8a6-6a6e-43bd-9fee-c5854225abcb Hungary | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os200j04f.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 228 mm |
| Product Net Height | 218 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 4 kg |
| 8.8 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.3 kg |
| 9.4 lb | |
| Package Level 1 EAN | 6417019247274 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Type | Switched - Fusible Pole |
| Fuse Size | 200 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 60 Hp |
| (acc. to UL 480 V) 125 Hp | |
| (acc. to UL 600 V) 150 Hp | |
| Tightening Torque | 15 ... 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 200 in·lb |
| Cable Lug 72 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | cULus certificate OS200 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
