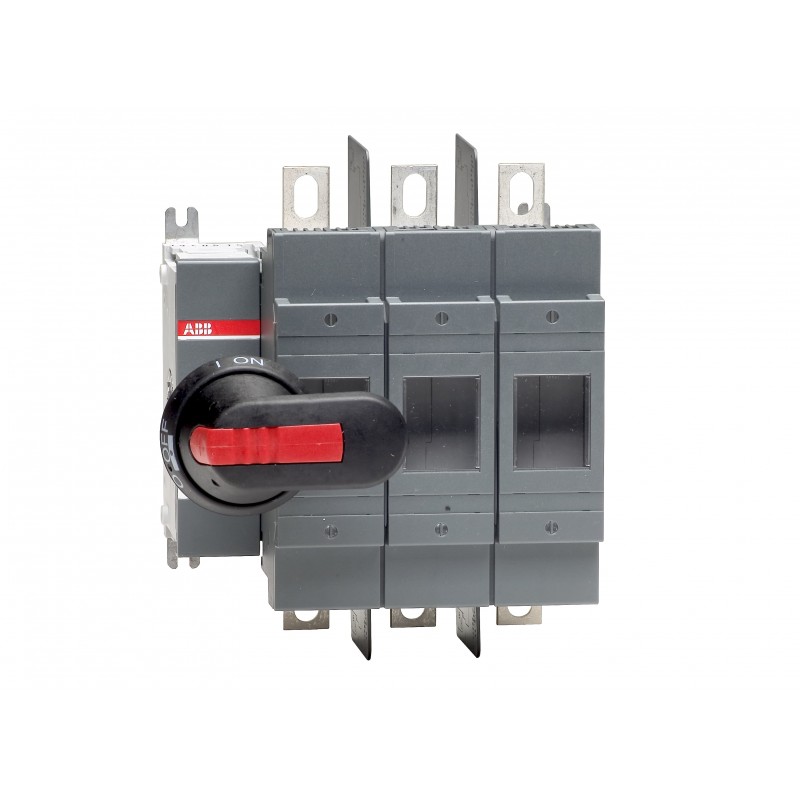

1SCA022709R9760 ABB Fuse switch OS200J03P
1SCA022709R9760
ABB
Fuse switch OS200J03P
OS200J03P FUSIBLE DISCONNECT SWITCH
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | d14ea8ae-a9de-4094-ab85-eb7230059569 Finland |
| Simplified SCIP | 68137a4d-9696-43a0-aebc-62217f5eb21d Germany |
| 2e3d1d39-dbf6-435e-99bf-ceba1f96d293 Portugal | |
| c237c8fb-4ade-4778-94f9-5711144132b7 Greece | |
| 10396e09-4d8b-4043-8f4c-82dbd5b27c47 Belgium | |
| e1b11ab3-4808-4b50-b31f-779752bd78dc Norway | |
| c6d8cdee-6bf8-44a5-a3c6-909dec2476c0 Bulgaria | |
| 05f3dc29-24ff-47d5-912b-3e6c7b8fe82f Sweden | |
| f2fef297-955b-423f-ba0b-c720ca53311c Croatia | |
| 1869a195-b93f-4415-a38b-29e5c63d7333 Czech Republic | |
| d4a19584-b5f4-4680-a9db-99acce8c0f52 Poland | |
| 9c4507ac-1327-454b-9788-24ff0b4ccdc0 Belgium | |
| 72ca3279-3760-4ee3-b4c3-2f5c0fb65834 Hungary | |
| eceb1e11-a39b-4204-b469-9141f4b07465 Spain | |
| 6ae2758b-c147-4166-bd0b-4f598682248d Poland | |
| 385bed5a-0b01-4049-bf04-4bcdac9a7e52 Hungary | |
| 103c3999-9b9f-40ce-8d7f-12e59fbdb8a2 Estonia | |
| 02820b53-5f55-4cf8-8458-72e0ba36b6d5 France | |
| 4cda5513-f6ae-4551-9344-692394166524 Sweden | |
| d5fe7dee-8865-41c2-9f2b-43609dbbfa35 Germany | |
| 7c7438b6-e640-4e5e-a456-53b4009c52c8 France | |
| ad829d76-ae4b-4489-94f4-853ac8318e3d Germany | |
| 0879c983-361d-40e5-b47f-0752f39a13a6 Denmark | |
| 8548e611-718a-4c30-acf9-99151f1f7e21 Italy | |
| 259c9e64-d2b2-4f26-93b0-e961f332b3ec Netherlands | |
| f0414065-cd9e-4722-9c43-5d4e0ecd777b Poland | |
| 8a19a1f7-3095-4abd-909b-fe3bc286f407 Germany | |
| 2abb4fcc-e55e-4c45-97de-81f276d41254 Germany | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | OS200J03.igs |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 182 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 3.1 kg |
| 6.7 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 3.3 kg |
| 7.4 lb | |
| Package Level 1 EAN | 6417019225906 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 200 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | UL98 |
| IEC 60947-3 | |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Main Circuit 250 V DC | |
| Ampere Rating | 200 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 60 Hp |
| (acc. to UL 480 V) 125 Hp | |
| (acc. to UL 600 V) 150 Hp | |
| Tightening Torque | 15 ... 22 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 200 in·lb |
| Cable Lug 72 in·lb | |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | cULus certificate OS200 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
