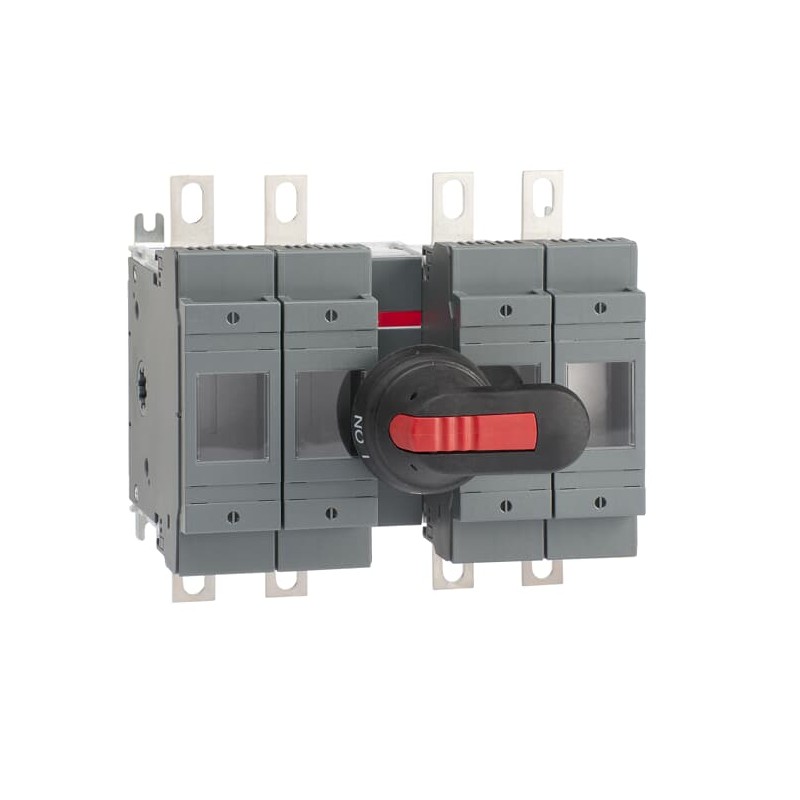

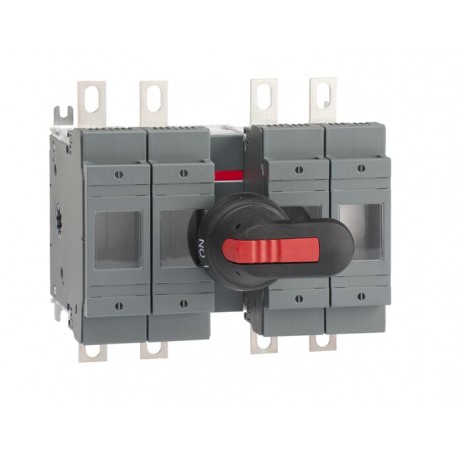

1SCA022721R3300 ABB Fuse switch OS200B22N2P
1SCA022721R3300
ABB
Fuse switch OS200B22N2P
OS200B22N2P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 04228536-bb7f-4357-b3e7-be3d78254964 Finland |
| Simplified SCIP | 735659c0-214d-41b8-bae5-956606e12528 Germany |
| 76bb75f5-a502-449b-81c3-a0564c7ecee6 Greece | |
| c306260c-2ecf-4ea8-849f-1e318eb55810 Portugal | |
| fdc18a87-32d1-4e09-abaa-5a8776cb524a Norway | |
| cc4330c9-4e30-4190-b20c-c0dad4539988 Italy | |
| 4c812512-6e95-4157-80a2-89f182a8053a Czech Republic | |
| 6b1ffa44-eec6-4d2d-b282-e17757857c93 Croatia | |
| 1a3d54de-0731-4f9a-bb89-536e26196ef1 Poland | |
| 5577079e-7774-49ce-901e-d821f967ad67 Bulgaria | |
| 06227954-7d42-43f7-8eb8-dc1cd518c00b Sweden | |
| 45073b32-70ec-44cd-864b-3cb6aff37149 Estonia | |
| 58a1856e-6ae7-4e74-b1d9-99352bf64caa Germany | |
| c443cff0-fcb5-49e0-bfe2-4c0986f10194 Hungary | |
| b6ccc19c-7023-4a81-84bd-674941083017 France | |
| a662e076-278f-493c-b11e-44a3f23989c9 Spain | |
| dd3a70e7-64d7-4935-bb5c-a6bcf0f7c97e Belgium | |
| c2d4b1d0-7f20-46b4-a473-fe9d2c3f4dfe Hungary | |
| 66826caa-7355-4060-aca4-371c5ce4e9b4 France | |
| 8f59260c-7cf3-4112-8411-f60545d3405c Denmark | |
| 097d2d9e-9dd2-4277-83b3-056818d68b0f Germany | |
| c3a58718-73cf-4a7b-830e-7c0e703be2cd Germany | |
| 7f7c359b-74ef-458d-ab64-e791246eb616 Poland | |
| fad6e2fd-2194-418d-a470-4ac49ece4805 Germany | |
| 64eb15c1-1875-4343-a7f3-e525f129447e Belgium | |
| d2bfde37-a8f0-4a82-b7f4-dae38f64acb0 Poland | |
| dc3dddbe-1895-4e49-a388-36bcdd20c8f1 Netherlands | |
| 21fbf18b-49f3-408f-b826-562e0b993600 Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os200b22.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 220 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 3.9 kg |
| 8.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.2 kg |
| 9.2 lb | |
| Package Level 1 EAN | 6417019231730 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | B1-B2 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 22 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated operation power at AC-23, 400 V (EF007027) | 200 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Suitable for fuses (EF006692) | Shape B1-B3 |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Front |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
