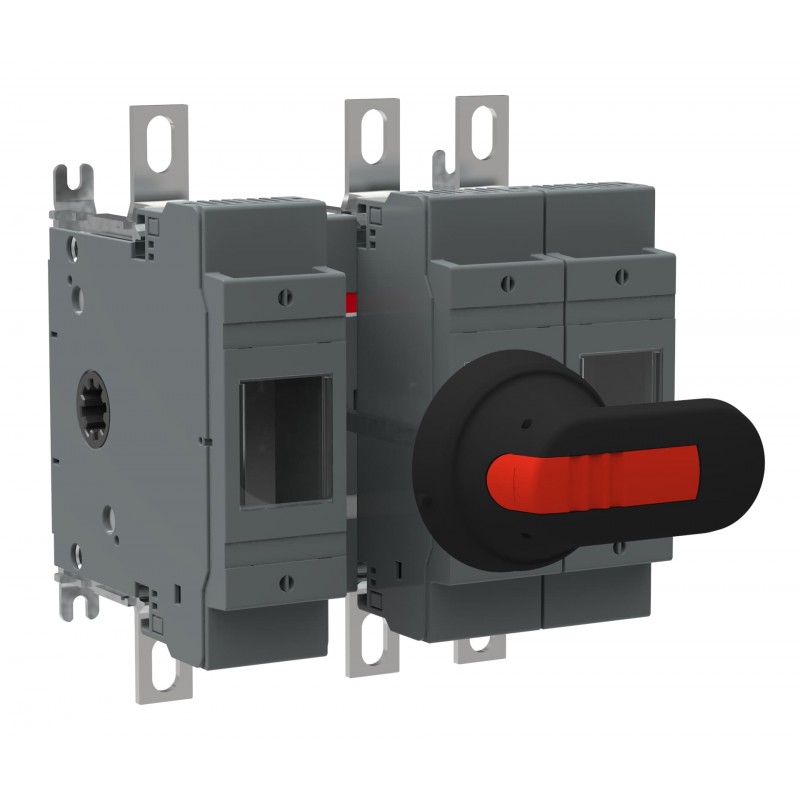

1SCA022721R3210 ABB Fuse switch OS200B12P
1SCA022721R3210
ABB
Fuse switch OS200B12P
OS200B12P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 09e23cbb-a792-40e2-9759-84b5c7b2411c Finland |
| Simplified SCIP | de7bed04-4cee-47cd-ba8a-c4315e29952c Germany |
| bce0cf71-5ece-43f2-a4e4-04be52c56a6b Germany | |
| 0b1a1f9e-d4f2-4d67-b468-bc1bff66c59d Belgium | |
| e5995084-e92b-43c8-8f7d-11fcb4f51e70 Germany | |
| 78e9515c-587c-41a5-9e41-338b29e7e553 Bulgaria | |
| 820f61ab-f9cc-4dfb-85b2-4d49ad2bcfd6 Poland | |
| 686ccd63-9420-45e2-9297-1987cd1b3130 Sweden | |
| b2aba1b8-8646-47ac-8557-0a30b833c279 Greece | |
| c6b5508a-9ca8-406a-b43f-5acdead9596a Hungary | |
| ce82285d-9064-4269-bf0c-f357fe8963f3 Estonia | |
| 15ee79c9-6db6-4a19-83bd-4b8313f361c2 Norway | |
| d5649b73-20bf-4515-921b-c712edf47531 Belgium | |
| efaea273-c12c-4e3f-9596-82170770317a Czech Republic | |
| 683971cd-8240-4583-80b3-83b0ed52e47a Croatia | |
| 3e450e6e-0b0c-48a7-ad30-2a0393ce2574 Spain | |
| d3586327-f489-40b9-92da-b54f6a22f41c Sweden | |
| 758b5f41-2bd6-48f4-b37b-876bdd6fa1a4 France | |
| dc8ef154-e6a5-4afd-af53-a1273a38bad6 Germany | |
| 0b9cc3c1-d9c3-4941-a8c1-4124e91b27a2 France | |
| daca23f6-c8d3-44b1-a53d-7ac1ad3bf739 Hungary | |
| ba18c0b2-b058-4092-92af-a4a645e57381 Portugal | |
| 060607d9-3058-43e3-bb2a-b631732a3062 Denmark | |
| 2110703a-52ba-48fa-9406-d6fcb50ce71f Germany | |
| c4dbcacc-5541-43a3-8173-4ad174072a43 Poland | |
| d3011f56-7a7a-4fd1-8e38-95d127d10d7b Italy | |
| e36886aa-a515-4471-8a09-6ef903466756 Netherlands | |
| cca3f273-f055-4e36-b8cb-a863b56ea579 Poland | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os200b12.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 177 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.8 kg |
| 6.3 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 3.1 kg |
| 6.9 lb | |
| Package Level 1 EAN | 6417019231723 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | B1-B2 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
