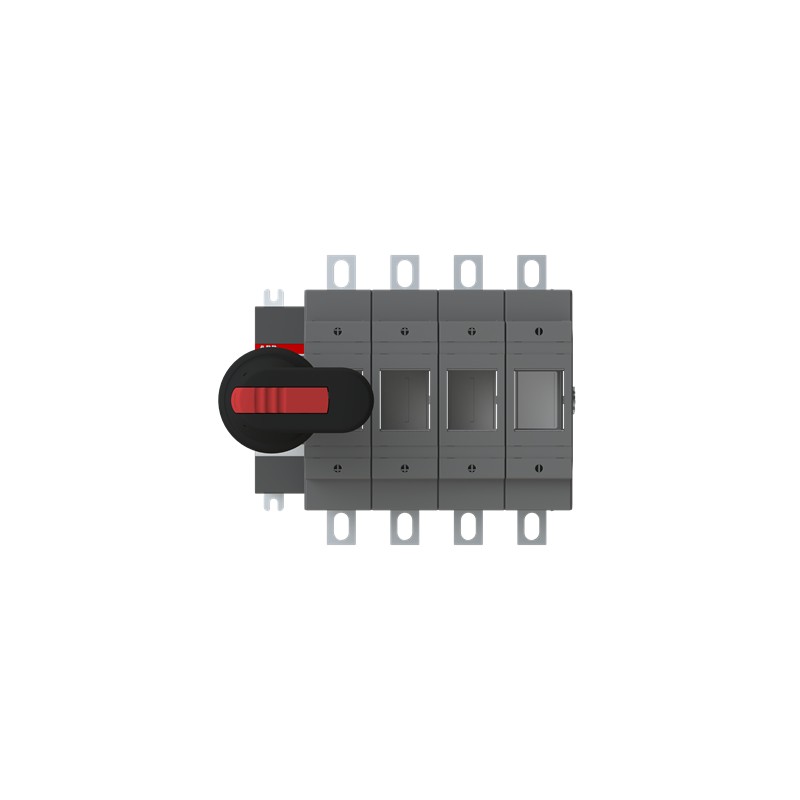

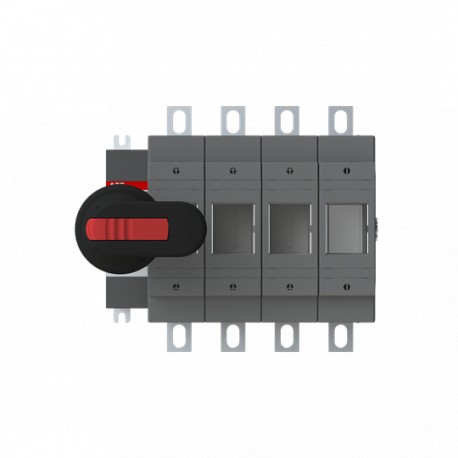

1SCA022709R9410 ABB Fuse switch OS200B04N2P
1SCA022709R9410
ABB
Fuse switch OS200B04N2P
OS200B04N2P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | 37f6fc0b-5eab-4023-886d-6df2b81a1b9d Finland |
| Simplified SCIP | 248dec04-d53c-40b4-84f6-7427793b3de8 Germany |
| d51e828d-9de5-439c-ad42-7b4575851129 Poland | |
| cbc58892-82f0-4eb3-95ac-feb4b9e57bbd Sweden | |
| 04506a2f-f81f-4871-b2d6-e934a5518f6f Norway | |
| 5226a125-8130-4397-8eaf-483112f34efa Bulgaria | |
| 1fb68640-8bfa-40f0-a065-79d1ea267e3d Sweden | |
| 79ae375b-a89e-4e3e-aa4c-db0c772a2462 Czech Republic | |
| 430f2812-03a4-483c-a105-76b8fafed8c5 Poland | |
| 9252a271-9575-4094-823f-d130d6195830 Croatia | |
| 1d48ec1a-7d3f-41f6-9780-66a849ce597d Poland | |
| 11bcad91-b3b5-4b86-8ed9-18c82a5c1bdf Estonia | |
| 8e2e8c27-8869-4c6b-97f1-ef82ced0a5b8 Germany | |
| b8b2d922-72c8-42d6-b04f-2f59e3ff507b Hungary | |
| fe4d3c1a-c95e-43c2-b45e-2d58594bb863 Greece | |
| abd87831-ed3f-4f14-bd46-2e7610258eeb Portugal | |
| 2b8daaf1-d9d6-4f84-aa0e-50dcfe89f865 France | |
| aff82014-31af-465b-86c1-20b6e3c6f928 France | |
| 0f01bbe3-908d-428c-ab31-13735debba75 Hungary | |
| ebb795c3-24f8-44ba-a651-7b63558f232c Belgium | |
| eeae7f5a-6ae0-4bec-b471-3f8d061ee078 Spain | |
| 9c095b94-2e07-40a1-9099-c3d82e4ad1b3 Germany | |
| b67f7f5f-b757-4357-8cc7-0c0a34dd6118 Denmark | |
| 8b580cbe-f940-44db-b0db-f905a303179f Germany | |
| 7c2bfaea-f68b-485b-a0ae-26a1adaf56b6 Germany | |
| 0732ae13-3f67-47d0-9e1c-dc477092ae66 Belgium | |
| 13c8aaa3-85be-408b-a651-1e06b76cbdb7 Italy | |
| 2d0f5da1-49e1-43e0-a19d-1ee9168baea1 Netherlands | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | OS200B04F.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 182 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 132 mm |
| Product Net Weight | 3.9 kg |
| 8.6 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 4.2 kg |
| 9.2 lb | |
| Package Level 1 EAN | 6417019225876 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Position | Right Side |
| Fourth Pole Type | Switched - With Solid Link |
| Fuse Size | B1-B2 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 4P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 04 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated operation power at AC-23, 400 V (EF007027) | 200 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Suitable for fuses (EF006692) | Shape B1-B3 |
| Number of poles (EF001391) | 4 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
