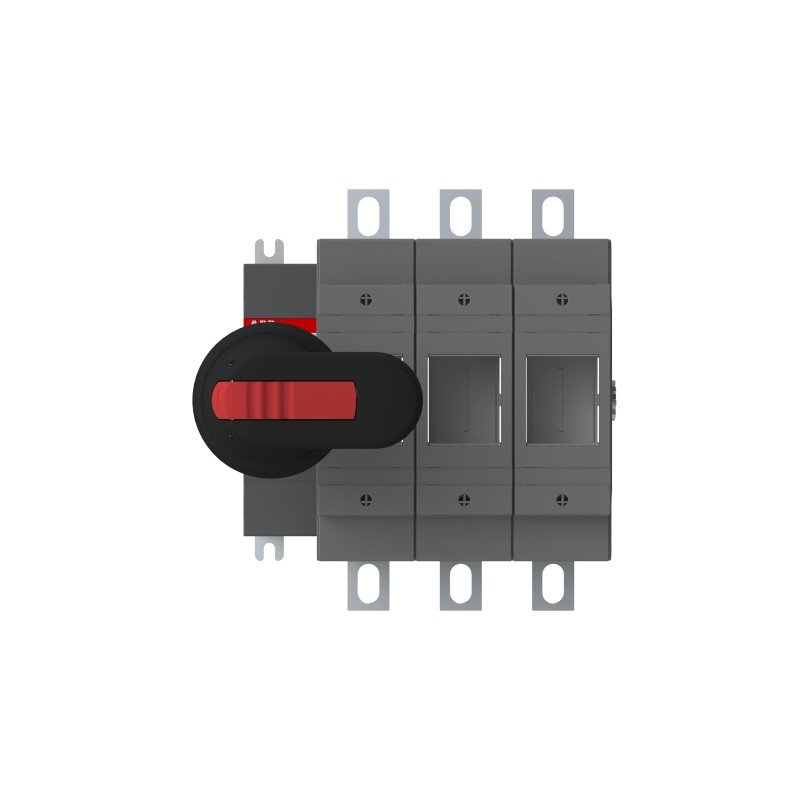

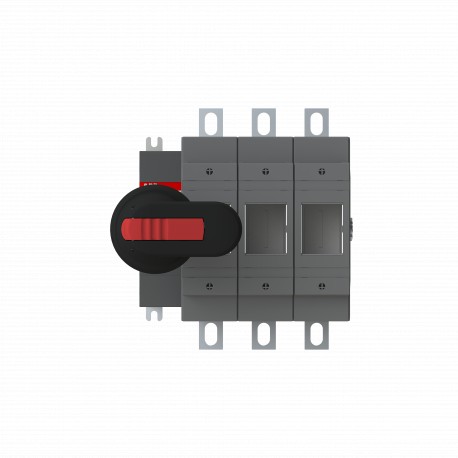

1SCA022709R9330 ABB FUSE switch OS200B03P
1SCA022709R9330
ABB
FUSE switch OS200B03P
OS200B03P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | c532d089-d578-4f61-ae8a-e7253d4456dc Finland |
| Simplified SCIP | afce7816-eff5-4e18-bea2-8dfc747f79e8 Germany |
| ffd290da-336c-4308-af1d-de405871dc7d Greece | |
| 69c37d72-f74c-451e-b688-c33907cef7a3 Hungary | |
| 0ffee270-9954-401e-bed8-3568dfca01c6 Estonia | |
| 1d13265c-59cf-4de4-8221-28f5964140d3 Norway | |
| ef461c17-81fe-4c47-81ba-52b671515c0a Italy | |
| eedb5984-4c10-4141-bb2b-fc4d9445d74c Bulgaria | |
| d0f9e4a7-2c68-45db-b9ed-d227c8bbf522 Czech Republic | |
| d817cc23-3893-4193-918e-cc8028451eb1 Croatia | |
| 87c6b2ee-eea4-49ee-9866-399c9430ec8c Poland | |
| 3e0f0284-81d0-45d3-8eda-9ec5c3423adf Sweden | |
| d195d743-2b09-4fe1-8fe5-1d2e9cb9afe8 France | |
| f4aa8a16-06ef-46c2-96a4-0bd2db68eb37 Poland | |
| e54ea6aa-e95b-40f1-8dd1-efcd43c51e02 France | |
| 5a8c6438-7efa-426b-9615-975ce6e97dee Hungary | |
| 67e4263a-54bd-4d25-b3a2-229472a4bd62 Portugal | |
| a4160384-83ca-4424-9696-738730aa89f5 Germany | |
| bb96cf8f-75d9-44f7-bd4f-3ac0cf8b23be Denmark | |
| e7640737-59e0-4960-91a7-6cd53a189b3d Germany | |
| 3a42571d-3904-4bda-9d31-a245613bf1cd Germany | |
| 99f21ad9-e237-4689-b55b-17e7696974d7 Poland | |
| 8ecc66af-d2b8-4cf6-9dbd-ea1a4da6b346 Belgium | |
| 822316f8-b140-49bb-9c18-0a609fa129bf Netherlands | |
| 96db816d-7c1d-4a0e-ad46-f33e0fd278e5 Spain | |
| fe44cb10-eaec-4681-bf05-9e4541051e79 Belgium | |
| 7bcc6267-85a0-4fdd-9ff6-70ef3889f3f6 Germany | |
| 0cdf7040-d150-48b9-a81a-86a750a0bb78 Sweden | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | stp-os200b03n3.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 177 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 130 mm |
| Product Net Weight | 2.8 kg |
| 6.3 lb | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 230 mm |
| 9.1 in | |
| Package Level 1 Depth / Length | 270 mm |
| 10.6 in | |
| Package Level 1 Height | 170 mm |
| 6.7 in | |
| Package Level 1 Gross Weight | 3.1 kg |
| 6.9 lb | |
| Package Level 1 EAN | 6417019225869 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | B1-B2 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
