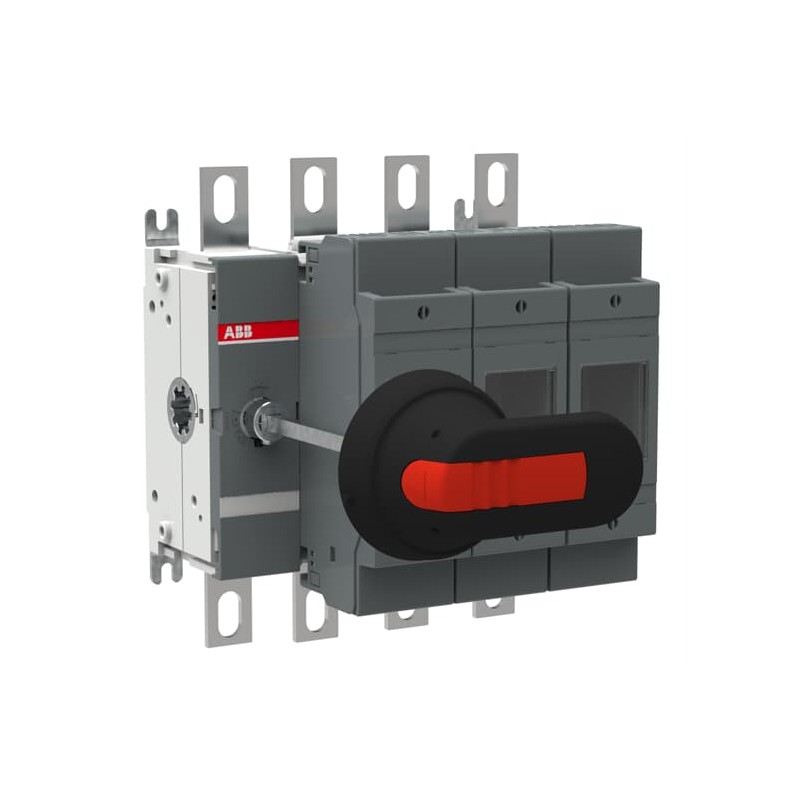

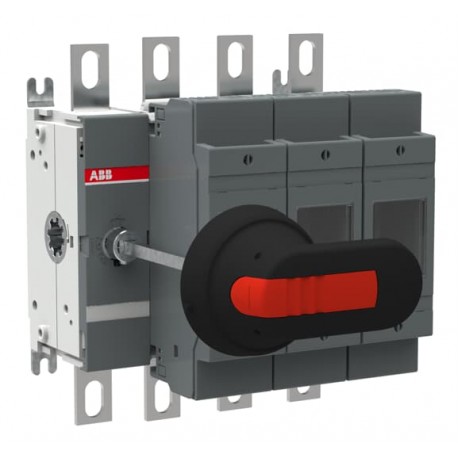

1SCA022750R0620 ABB Fuse switch OS200B03N3P
1SCA022750R0620
ABB
Fuse switch OS200B03N3P
OS200B03N3P SWITCH FUSE
Low-voltage industrial components > Fuse switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| ABB EcoSolutions | |
|---|---|
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311049M0201 |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC011021D0201 |
| RoHS Declaration | 1SCC011020D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| SCIP | fe619f9c-5eaf-4418-9bb7-56b89e562d13 Finland |
| Simplified SCIP | 9effec5c-2c12-4365-a29e-103bb23c3178 Germany |
| 2e2d7ee1-6ffe-479f-9bda-a8a97cb88879 Germany | |
| e98ece1c-28c0-4789-b597-c61b8aeee1aa Belgium | |
| c49c5194-c8a0-42a4-baff-6a24f24bfc20 Denmark | |
| d7ef85a6-22dd-4803-8916-a57df6a7672a Spain | |
| 3a72542a-ca9d-46f4-8bc5-6a23b1131d04 Belgium | |
| e41a41c3-b18b-47c6-a923-c595d74febcb Hungary | |
| 3af55d09-50a1-4159-b371-349ac4de253f France | |
| 758e2ceb-1c41-46bb-aad6-7ce948108e60 Norway | |
| e876b531-9e9a-4ceb-8b65-86e89be3f111 Germany | |
| 3243be7d-ddb0-4b53-bdef-5c8ceafcf136 Poland | |
| fc9f62ef-cfdf-45e1-9ff5-798c92730806 Sweden | |
| f7f6038c-ec19-4d90-977e-516f4da50672 Germany | |
| eeca8a66-2cf2-43fe-92bf-0f7452eb1b51 Estonia | |
| 11e7f0c4-7d47-46d8-9608-ec1c8e1c322b Netherlands | |
| cc800238-da80-4db9-8c44-4fe32e08f7c3 Poland | |
| 2ea947d8-7d4a-4ab2-b1e6-da607a006fa3 Greece | |
| 912d26e7-7004-4365-b45a-41230352fd16 Bulgaria | |
| ff977bb6-1ebd-49d0-9508-c5117f5ed35a Portugal | |
| be612bde-98cb-47e4-8b37-be63b078ddd1 Hungary | |
| a31c498f-27a2-4822-b4c8-87bf3c6027ba France | |
| 1bcfefdf-bcba-4020-91d5-0ab54e41753a Croatia | |
| 190c5d51-5ac7-492f-82e0-8d84305ce92e Czech Republic | |
| d9ec893e-dd87-4641-8dc9-3f7f239334fd Sweden | |
| 893c1568-6817-4e76-89fb-b8c125d0a959 Poland | |
| 15bb41ba-1b8e-4a1c-94ae-49498b0dab5d Germany | |
| 15ea2b4b-4f15-4c36-9ad2-d9a2a703c4f6 Italy | |
| Toxic Substances Control Act - TSCA | 1SCC011025D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC311013C0201 |
| Instructions and Manuals | 1SCC311012M0219 |
| Mechanical Drawings | os400ds04f.stp |
| Environmental Product Declaration - EPD | 1SCC311197D0201 |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Pollution Degree | 3 |
| Ordering | |
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85365080 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 177 mm |
| Product Net Height | 199 mm |
| Product Net Depth / Length | 167 mm |
| Product Net Weight | 3.4 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 210 mm |
| Package Level 1 Depth / Length | 236 mm |
| Package Level 1 Height | 163 mm |
| Package Level 1 Gross Weight | 3.4 kg |
| Package Level 1 EAN | 6417019243634 |
| Technical | |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 200 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 200 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fourth Pole Type | Detachable Neutral Link Integrated Into the Mechanism |
| Fuse Size | B1-B2 |
| Fuse System | British Standard |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating Mode | Front |
| Pollution Degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 8 W |
| Rated Conditional Short-Circuit Current (Inc) | (500 V) 100 kA |
| (690 V) 80 kA | |
| Rated Current (In) | Main Circuit 200 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 200 A |
| (690 V) 200 A | |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 200 A |
| (500 V) 200 A | |
| (690 V) 200 A | |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 60 kW |
| (400 V) 110 kW | |
| (415 V) 110 kW | |
| (500 V) 132 kW | |
| (690 V) 200 kW | |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 8 kiloampere rms |
| Special Functions | Detachable Neutral |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Lug terminals |
| Terminal Width | 20 mm |
| Tightening Torque | 15 ... 22 N·m |
| Technical UL/CSA | |
| Tightening Torque | 15 ... 22 N·m |
| Certificates and Declarations | |
| A2L Certificate – IEC | 1SCC311209D0201 |
| ATEX Certificate | No certification needed |
| CCC Certificate | CCC OS200-250 2016 |
| Declaration of Conformity - CE | 1SCC311091D2704 |
| DNV GL Certificate | 1SCC311123D0203 |
| UL Certificate | No certification needed |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC001040 - Fuse switch disconnector |
| ETIM 10 | EC001040 - Fuse switch disconnector |
| UNSPSC | 39122233 |
| IDEA Granular Category Code (IGCC) | 5291 >> Fuse switch disconnector |
| eClass | V11.1 : 27371401 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as safety switch (EF006985) | Yes |
| Max. rated operation voltage Ue AC (EF007355) | 1000 V |
| Rated permanent current Iu (EF001389) | 200 A |
| Rated operation power at AC-23, 400 V (EF007027) | 200 kW |
| Conditioned rated short-circuit current Iq (EF001444) | 80 kA |
| Rated short-time withstand current lcw (EF007050) | 8 kA |
| Suitable for fuses (EF006692) | Shape B1-B3 |
| Number of poles (EF001391) | 3 |
| Type of electrical connection of main circuit (EF006819) | Bolt connection |
| Cable entry (EF000537) | Other |
| Equipped with connectors (EF011696) | Yes |
| Suitable for floor mounting (EF007243) | No |
| Suitable for front mounting (EF007246) | No |
| Suitable for busbar mounting (EF007259) | Yes |
| Type of control element (EF006976) | Long turning handle |
| Position control element (EF009410) | Left |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Version as emergency stop installation (EF006959) | No |
