> ABB>Manual Switches>ONE20M3Y 1SCA135536R1001 - ABB - ONE20M3Y Enclosed Switch Disconnector
Previous Product Next Product

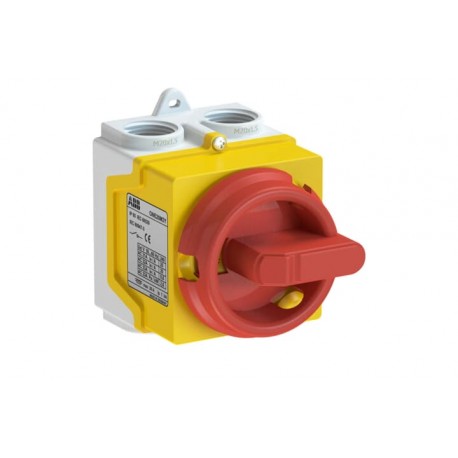

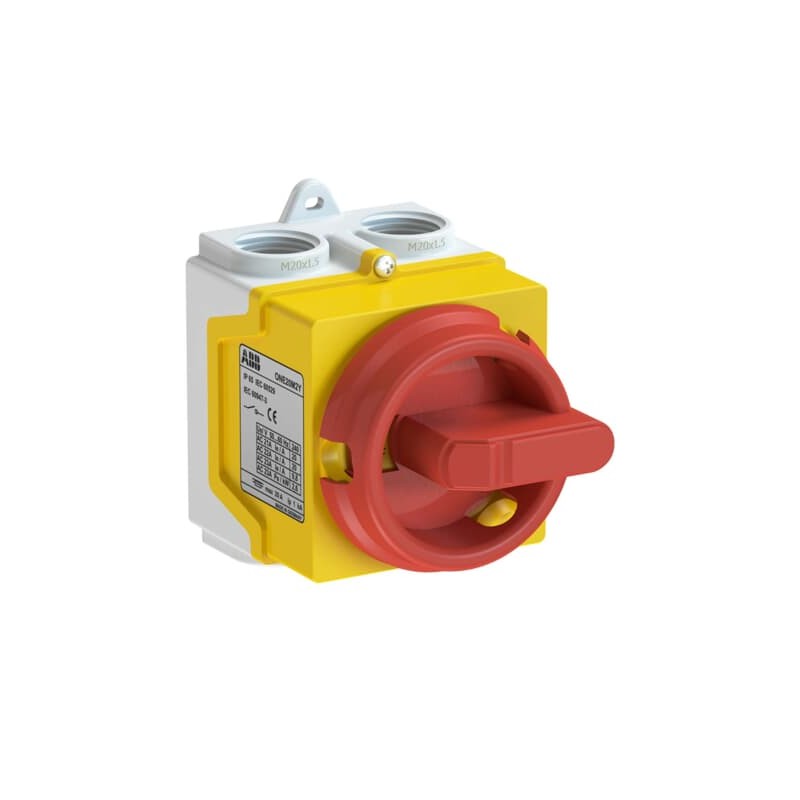

ONE20M3Y 1SCA135536R1001 - ABB - ONE20M3Y Enclosed Switch Disconnector View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

ONE20M3Y 1SCA135536R1001 - ABB - ONE20M3Y Enclosed Switch Disconnector

1SCA135536R1001

ABB

ONE20M3Y Enclosed Switch Disconnector

More details


Low-voltage industrial components > Switch disconnector

Manual Switches

* Brand new product in its original packaging covered by the warranties and certifications provided by ABB

Total price: $37.83
Unit price: $37.83

*This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Enclosed Switch Disconnector, 3-p. 400V AC22 20A, Plastic enclosure, Red Round handle.

Ordering

  • Minimum Order Quantity:
    10 piece
  • Customs Tariff Number:
    85365080

Popular Downloads

  • Data Sheet, Technical Information:
    1SCC340002B0201

Dimensions

  • Product Net Width:
    65mm
  • Product Net Height:
    92mm
  • Product Net Depth:
    84mm
  • Product Net Weight:
    0.12kg

Technical

  • Rated Operational Current AC-22A (Ie):
    (380 ... 415 V) 20 A
  • Rated Operational Current AC-23A (Ie):
    (380 ... 415 V) 15.2 A
  • Rated Operational Power AC-23A (Pe):
    (380 ... 415 V) 7.5 kW
  • Conventional Thermal Current (Ithe):
    Fully Enclosed 20 A
  • Rated Insulation Voltage (Ui):
    acc. to IEC/EN 60664-1 690 V
  • Power Loss:
    at Rated Operating Conditions per Pole 0 W
  • Handle Color:
    Red
  • Handle Type:
    Round handle
  • Number of Poles:
    3
  • Cable Cross-Section:
    4 mm²
  • Cable Entry Position:
    Up/Down
  • Cable Outlets Per Side:
    2xM20 / 2xM20
  • Degree of Protection:
    acc. to IEC 60529 IP67
  • Enclosure Material:
    Plastic

Environmental

  • RoHS Status:
    Following EU Directive 2011/65/EU

Certificates and Declarations (Document Number)

  • Declaration of Conformity - CE:
    1SCC343001D2702
  • Instructions and Manuals:
    1SCC390136M0204
  • RoHS Information:
    1SCC343002D0201

Container Information

  • Package Level 1 Units:
    1 piece
  • Package Level 1 Width:
    85 mm
  • Package Level 1 Length:
    66 mm
  • Package Level 1 Height:
    103 mm
  • Package Level 1 Gross Weight:
    0.16 kg
  • Package Level 1 EAN:
    6417019641263

Classifications

  • Object Classification Code:
    Q
  • ETIM 5:
    EC000216 - Switch disconnector
  • ETIM 6:
    EC000216 - Switch disconnector

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOG TRANSFER SWITCHES EN.pdf 23 Mbytes
