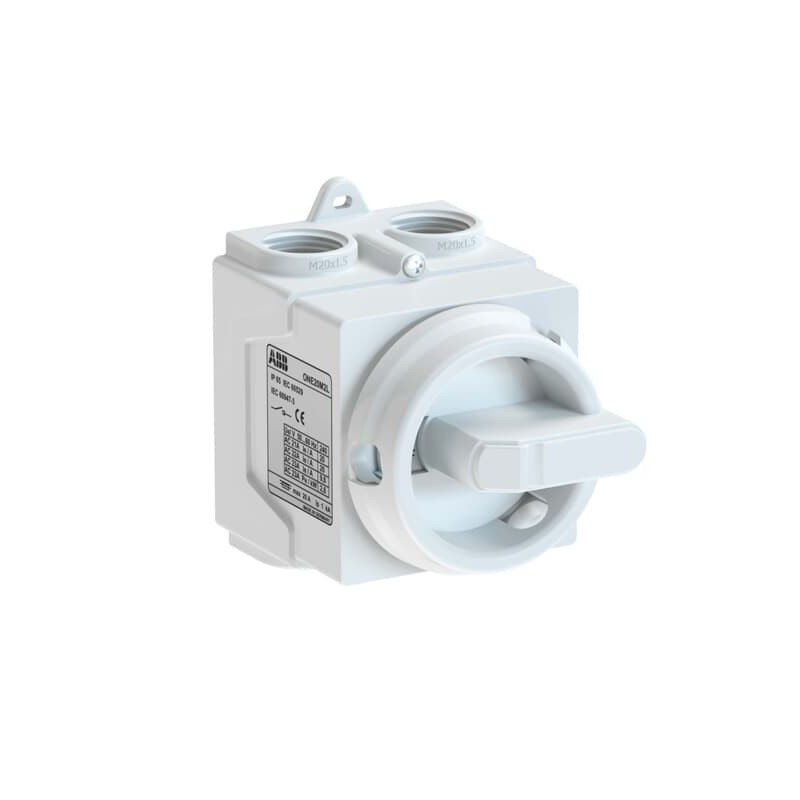

ABB 1SCA138456R1001 1SCA138456R1001 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

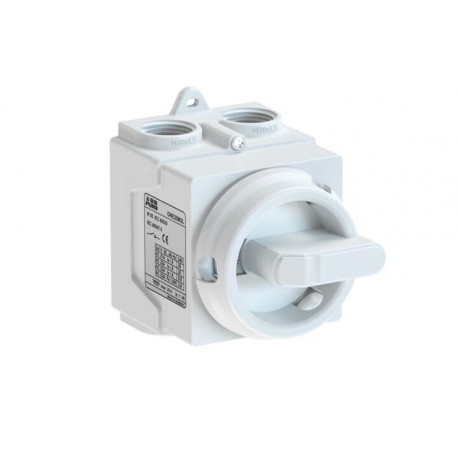

1SCA138456R1001 ABB ONE20M2W Enclosed Switch Disconnector

Reference: 1SCA138456R1001

Manufacturer: ABB

Description:

ONE20M2W Enclosed Switch Disconnector
IP67 ONE20M2W disconnect switch

Categories:

  • Low-voltage industrial components > Switch disconnector
  • ABB > Manual Switches

Brand new product in its original packaging covered by the warranties and certifications provided by ABB

  • More Info
  • ETIM
  • Reviews
Guarantee, repair and return.

Unit Price: 27,11 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Material Compliance
Conflict Minerals Reporting Template (CMRT)9AKK108467A5658
REACH Declaration1SCC340076D0201
RoHS Declaration1SCC340075D0201
RoHS InformationFollowing EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA1SCC340095D0201
Popular Downloads
Data Sheet, Technical Information1SCC340015C0201
Instructions and Manuals1SCC390135M0205
Mechanical DrawingsONE926584RM20.stp
Environmental
Degree of Protectionacc. to IEC 60529 IP67
Ordering
Minimum Order Quantity10 piece
Customs Tariff Number85363030
Country or Territory of OriginFinland
Dimensions
Product Net Width65 mm
Product Net Height92 mm
Product Net Depth / Length84 mm
Product Net Weight0.11 kg
Container Information
Package Level 1 Unitsbox 1 piece
Package Level 1 Width85 mm
Package Level 1 Depth / Length103 mm
Package Level 1 Height66 mm
Package Level 1 Gross Weight0.15 kg
Package Level 1 EAN6417019667560
Technical
Cable Cross-Section0.75 ... 4 mm²
Cable Entry PositionTop/Bottom
Cable Outlets Per Side2xM20 / 2xM20
ColorRAL9003 / RAL7035
Connecting Capacity Main CircuitScrew Clamp 0.75 ... 4 mm²
Screw Clamp / PE Terminal 1pc, 0.75 ... 4 mm²
Conventional Thermal Current (Ithe)Fully Enclosed 20 A
Degree of Protectionacc. to IEC 60529 IP67
Enclosure MaterialPlastic
Handle ColorWhite
Handle TypeRound handle
Impact Resistance RatingHousing IK09
Mounted Auxiliary Contacts0 NO, 0 NC
Number of Auxiliary Contacts NC0
Number of Auxiliary Contacts NO0
Number of Poles2P
Rated Impulse Withstand Voltage (Uimp)4 kV
Rated Insulation Voltage (Ui)acc. to IEC/EN 60664-1 690 V
Rated Operational Current AC-22A (Ie)(230 V) Single Phase 20 A
Rated Operational Current AC-23A (Ie)(230 V) Single Phase 15.2 A
Rated Operational Power AC-23A (Pe)(230 V) Single Phase 2.6 kW
Recommended Screw DriverMain Circuit Pozidriv 2
StandardsIEC 60947-1, -3
Tightening TorqueMain Circuit 1.1 N·m
Wire Stripping Length7 mm
Technical UL/CSA
Wire Stripping Length7 mm
Recommended Screw DriverMain Circuit Pozidriv 2
Tightening TorqueMain Circuit 1.1 N·m
Certificates and Declarations
Declaration of Conformity - CE1SCC343001D2702
External Classifications and Standards
Object Classification CodeQ
ETIM 9EC000216 - Switch disconnector (low voltage)
ETIM 10EC000216 - Switch disconnector (AC)
UNSPSC39122205
IDEA Granular Category Code (IGCC)5166 >> Safety switch
eClassV11.1 : 27371403
WEEE Category5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)3638750

ETIM for 1SCA138456R1001 Low-voltage industrial controls and switchgear (EC000216)

Feature nameVersion as main switch (EF006981)
Feature valueYes
Feature nameVersion as maintenance-/service switch (EF006986)
Feature valueYes
Feature nameVersion as safety switch (EF006985)
Feature valueYes
Feature nameVersion as emergency stop installation (EF006959)
Feature valueYes
Feature nameVersion as reversing switch (EF009408)
Feature valueNo
Feature nameNumber of switches (EF005586)
Feature value1
Feature nameRated operating voltage (EF001435)
Feature value690 V
Feature nameRated permanent current Iu (EF001389)
Feature value20 A
Feature nameRated permanent current at AC-23, 400 V (EF011777)
Feature value15.2 A
Feature nameRated permanent current at AC-21, 400 V (EF009165)
Feature value20 A
Feature nameNumber of poles (EF001391)
Feature value2
Feature nameNumber of auxiliary contacts as normally closed contact (EF001377)
Feature value0
Feature nameNumber of auxiliary contacts as normally open contact (EF001376)
Feature value0
Feature nameNumber of auxiliary contacts as change-over contact (EF003531)
Feature value0
Feature nameMotor drive optional (EF007386)
Feature valueNo
Feature nameMotor drive integrated (EF006697)
Feature valueNo
Feature nameVoltage release optional (EF007491)
Feature valueNo
Feature nameDevice construction (EF008240)
Feature valueComplete device in housing
Feature nameSuitable for floor mounting (EF025108)
Feature valueNo
Feature nameSuitable for front mounting 4-hole (EF007247)
Feature valueNo
Feature nameSuitable for front mounting centre (EF007248)
Feature valueNo
Feature nameSuitable for distribution board installation (EF007262)
Feature valueNo
Feature nameSuitable for intermediate mounting (EF007264)
Feature valueNo
Feature nameColour control element (EF007167)
Feature valueWhite
Feature nameType of control element (EF006976)
Feature valueRotating button
Feature nameInterlockable (EF006281)
Feature valueNo
Feature nameHousing colour (EF000136)
Feature valueOther
Feature nameType of electrical connection of main circuit (EF006819)
Feature valueScrew connection
Feature nameWith pre-assembled cabling (EF016444)
Feature valueNo
Feature nameDegree of protection (IP), front side (EF003118)
Feature valueIP67
Feature nameDegree of protection (NEMA) (EF011959)
Feature valueOther
Feature nameWidth (EF000008)
Feature value65 mm
Feature nameHeight (EF000040)
Feature value92 mm
Feature nameDepth (EF000049)
Feature value84 mm

DATASHEET - PDF
