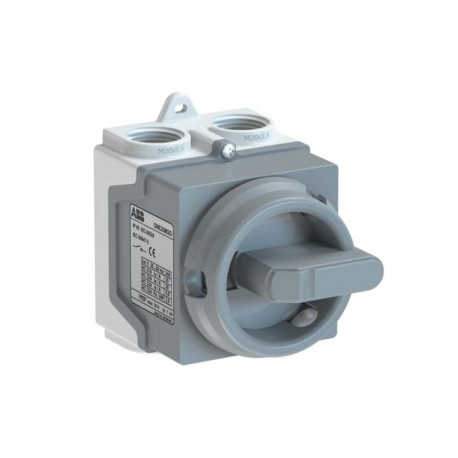

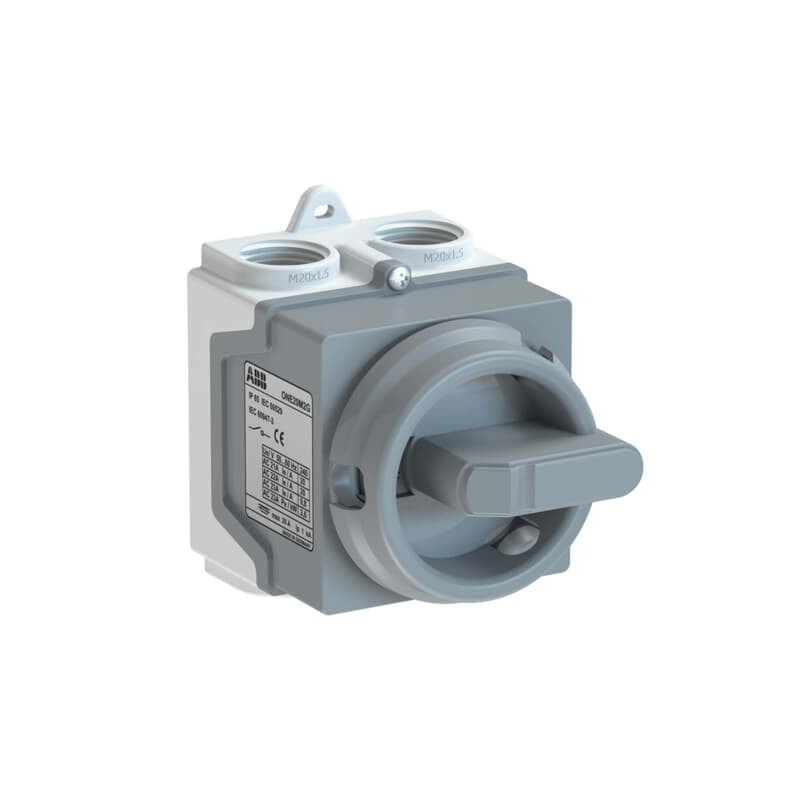

1SCA135532R1001 ABB ONE20M2G Enclosed Switch Disconnector
1SCA135532R1001
ABB
ONE20M2G Enclosed Switch Disconnector
IP67 ONE20M2G disconnect switch
Low-voltage industrial components > Switch disconnector
Manual Switches
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Material Compliance | |
|---|---|
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SCC340076D0201 |
| RoHS Declaration | 1SCC340075D0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 1SCC340095D0201 |
| Popular Downloads | |
| Data Sheet, Technical Information | 1SCC340015C0201 |
| Instructions and Manuals | 1SCC390135M0205 |
| Mechanical Drawings | ONE926584RM20.stp |
| Environmental | |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Ordering | |
| Minimum Order Quantity | 10 piece |
| Customs Tariff Number | 85363030 |
| Country or Territory of Origin | Finland |
| Dimensions | |
| Product Net Width | 65 mm |
| Product Net Height | 92 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.11 kg |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 85 mm |
| Package Level 1 Depth / Length | 103 mm |
| Package Level 1 Height | 66 mm |
| Package Level 1 Gross Weight | 0.15 kg |
| Package Level 1 EAN | 6417019641225 |
| Technical | |
| Cable Cross-Section | 0.75 ... 4 mm² |
| Cable Entry Position | Top/Bottom |
| Cable Outlets Per Side | 2xM20 / 2xM20 |
| Color | RAL7012 / RAL7035 |
| Connecting Capacity Main Circuit | Screw Clamp 0.75 ... 4 mm² |
| Screw Clamp / PE Terminal 1pc, 0.75 ... 4 mm² | |
| Conventional Thermal Current (Ithe) | Fully Enclosed 20 A |
| Degree of Protection | acc. to IEC 60529 IP67 |
| Enclosure Material | Plastic |
| Handle Color | Grey |
| Handle Type | Round handle |
| Impact Resistance Rating | Housing IK09 |
| Mounted Auxiliary Contacts | 0 NO, 0 NC |
| Number of Auxiliary Contacts NC | 0 |
| Number of Auxiliary Contacts NO | 0 |
| Number of Poles | 2P |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 690 V |
| Rated Operational Current AC-22A (Ie) | (230 V) Single Phase 20 A |
| Rated Operational Current AC-23A (Ie) | (230 V) Single Phase 15.2 A |
| (380 ... 415 V) 15.2 A | |
| Rated Operational Power AC-23A (Pe) | (230 V) Single Phase 2.6 kW |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Standards | IEC 60947-1, -3 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Wire Stripping Length | 7 mm |
| Technical UL/CSA | |
| Wire Stripping Length | 7 mm |
| Recommended Screw Driver | Main Circuit Pozidriv 2 |
| Tightening Torque | Main Circuit 1.1 N·m |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 1SCC343001D2702 |
| External Classifications and Standards | |
| Object Classification Code | Q |
| ETIM 9 | EC000216 - Switch disconnector (low voltage) |
| ETIM 10 | EC000216 - Switch disconnector (AC) |
| UNSPSC | 39122205 |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| eClass | V11.1 : 27371403 |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Feature Name | Feature Value |
|---|---|
| Version as main switch (EF006981) | Yes |
| Version as maintenance-/service switch (EF006986) | Yes |
| Version as safety switch (EF006985) | No |
| Version as emergency stop installation (EF006959) | No |
| Version as reversing switch (EF009408) | No |
| Number of switches (EF005586) | 1 |
| Rated operating voltage (EF001435) | 690 V |
| Rated permanent current Iu (EF001389) | 20 A |
| Number of poles (EF001391) | 2 |
| Number of auxiliary contacts as normally closed contact (EF001377) | 0 |
| Number of auxiliary contacts as normally open contact (EF001376) | 0 |
| Number of auxiliary contacts as change-over contact (EF003531) | 0 |
| Motor drive optional (EF007386) | No |
| Motor drive integrated (EF006697) | No |
| Voltage release optional (EF007491) | No |
| Device construction (EF008240) | Complete device in housing |
| Suitable for front mounting 4-hole (EF007247) | No |
| Suitable for front mounting centre (EF007248) | No |
| Suitable for distribution board installation (EF007262) | Yes |
| Colour control element (EF007167) | Grey |
| Type of control element (EF006976) | Long turning handle |
| Interlockable (EF006281) | No |
| Degree of protection (IP), front side (EF003118) | IP67 |
| Degree of protection (NEMA) (EF011959) | Other |
