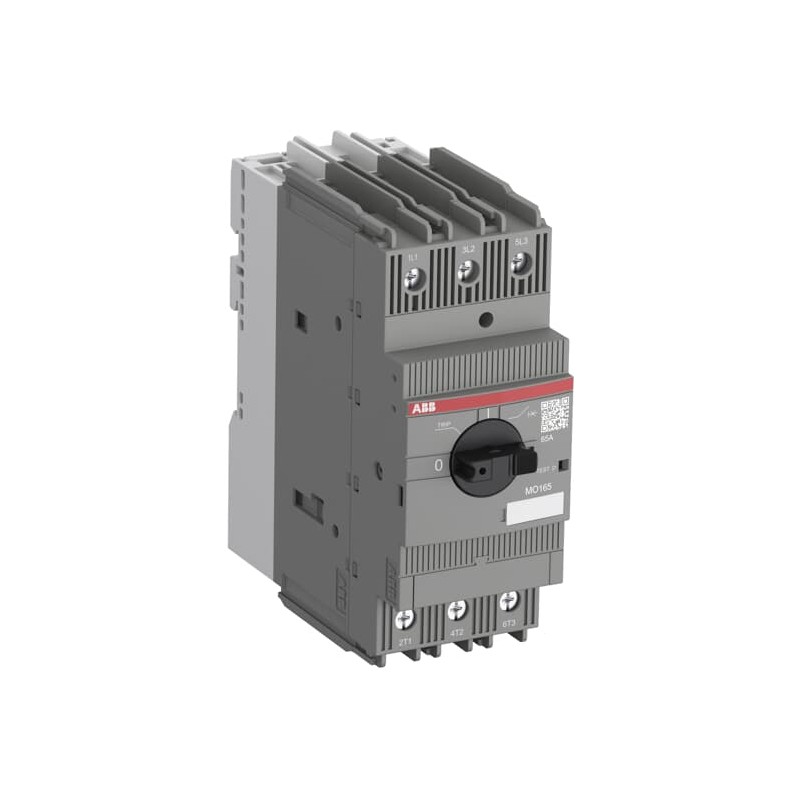

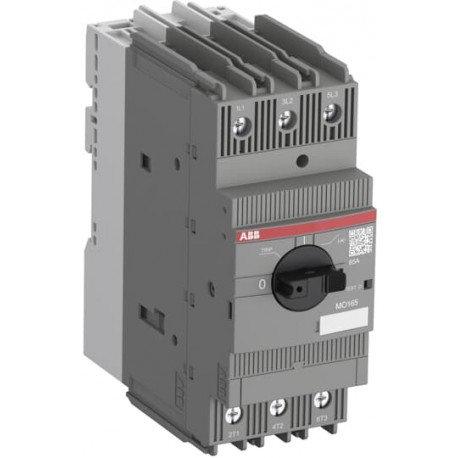

1SAM461000R1018 ABB MO165-73 Manual Motor Starter Magnetic Only
1SAM461000R1018
ABB
MO165-73 Manual Motor Starter Magnetic Only
MO165-73
Low-voltage industrial components > Motor protection circuit-breaker
Electronic motor protection relays
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 85362090 |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CDC131084D0201 |
| Instructions and Manuals | 2CDC131082M6801 |
| Instructions and Manuals (Part 2) | 2CDC131060M0202 |
| Time-Current Characteristic Curve | 1SAM400515F0008 |
| I²t Characteristic | 1SAM400506F0001 |
| Cut-off Current Characteristic | 1SAM400507F0001 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Dimension Diagram | 1SAM400402F0001 |
| Dimensions | |
| Product Net Width | 55 mm |
| Product Net Height | 142.65 mm |
| Product Net Depth / Length | 122 mm |
| Product Net Weight | 1 kg |
| Technical | |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 30 kA |
| (250 V DC) 3 Poles in Series 100 kA | |
| (400 V AC) 30 kA | |
| (440 V AC) 18 kA | |
| (500 V AC) 10 kA | |
| (690 V AC) 6 kA | |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (230 V AC) 30 kA |
| (250 V DC) 100 kA | |
| (400 V AC) 30 kA | |
| (440 V AC) 18 kA | |
| (500 V AC) 10 kA | |
| (690 V AC) 8 kA | |
| Rated Instantaneous Short-Circuit Current Setting (Ii) | 1022 A |
| Setting Range | None |
| Rated Operational Power AC-3 (Pe) | (400 V) Three Phase 37 kW |
| Rated Operational Power AC-3e (Pe) | (400 V) Three Phase 37 kW |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Main Circuit 250 V DC | |
| Rated Operational Current (Ie) | 73 A |
| Rated Operational Current AC-3 (Ie) | 73 A |
| Rated Operational Current AC-3e (Ie) | 73 A |
| Rated Operational Current DC-5 (Ie) | 73 A |
| Rated Frequency (f) | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Operating Frequency (fsw) | 0 ... 415 Hz |
| Rated Impulse Withstand Voltage (Uimp) | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Power Loss | at Rated Operating Conditions per Pole 5.22 W |
| Number of Poles | 3P |
| Conventional Free-air Thermal Current (Ith) | Main Circuit 73 A |
| Degree of Protection | Housing IP20 |
| Main Circuit Terminals IP10 | |
| Pollution Degree | 3 |
| Electrical Durability | 20000 cycle |
| Mechanical Durability | Nr. Operations 50000 cycle |
| Terminal Type | Screw Terminals |
| Connecting Capacity Main Circuit | Flexible with Ferrule 1/2x 1 ... 35 mm² |
| Flexible with Insulated Ferrule 1/2x 1 ... 35 mm² | |
| Flexible 1/2x 1 ... 35 mm² | |
| Rigid 1/2x 1 ... 4 mm² | |
| Solid 1/2x 1 ... 4 mm² | |
| Stranded 1/2x 1 ... 50 mm² | |
| Tightening Torque | Main Circuit 4 N·m |
| Wire Stripping Length | Main Circuit 16 mm |
| Recommended Screw Driver | Pozidriv 2 |
| Mounting Position | 1 ... 6 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Minimum Mounting Distance | Electrical Conductive Board, Horizontal - Up to 1000 V 1.5 mm |
| Electrical Conductive Board, Horizontal - Up to 400 V 0 mm | |
| Electrical Conductive Board, Horizontal - Up to 690 V 1.5 mm | |
| Electrical Conductive Board, Vertical 75 mm | |
| Other Device Same Type, Horizontal 0 mm | |
| Other Device Same Type, Vertical 150 mm | |
| Actuator Type | Rotary Handle |
| Contact Position Indication | ON / OFF / TRIP |
| Standards | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-2 | |
| IEC/EN 60947-4-1 | |
| UL 60947-4-1 | |
| Remarks | For overload protection of the motors, an appropriate thermal or electronic overload relays must be used |
| Technical UL/CSA | |
| Short-Circuit Current Rating (SCCR) | Any UL Listed Fuses or Circuit-Breakers, Group Installations (480 V AC) 50 kA |
| Any UL Listed Fuses or Circuit-Breakers, Group Installations (600 V AC) 10 kA | |
| Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (480 V AC) 50 kA | |
| Any UL Listed Fuses or Circuit-Breakers, Motor Disconnect (600 V AC) 10 kA | |
| Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (480Y / 277 V AC) 50 kA | |
| Any UL Listed Fuses or Circuit-Breakers, Tap Conductor Protection in Group Installations (600Y / 347 V AC) 10 kA | |
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Horsepower Rating UL/CSA | (200 V AC) Three Phase 20 Hp |
| (208 V AC) Three Phase 20 Hp | |
| (220 ... 240 V AC) Three Phase 25 Hp | |
| (440 ... 480 V AC) Three Phase 50 Hp | |
| (550 ... 600 V AC) Three Phase 60 Hp | |
| Full Load Amps Motor Use | (110 ... 120 V AC) Three Phase 56 A |
| (200 V AC) Three Phase 62.1 A | |
| (208 V AC) Three Phase 59.4 A | |
| (220 ... 240 V AC) Three Phase 68 A | |
| (440 ... 480 V AC) Three Phase 65 A | |
| (550 ... 600 V AC) Three Phase 62 A | |
| Locked Rotor Amps | (200 V AC) Three Phase 334 A |
| (208 V AC) Three Phase 321 A | |
| (220 ... 240 V AC) Three Phase 365 A | |
| (440 ... 480 V AC) Three Phase 363 A | |
| (550 ... 600 V AC) Three Phase 348 A | |
| General Use Rating UL/CSA | (600 V AC) 73 A |
| Connecting Capacity Main Circuit UL/CSA | Flexible 1/2x 16-0 AWG |
| Stranded 1/2x 16-0 AWG | |
| Tightening Torque UL/CSA | Main Circuit 35 in·lb |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... +60 °C |
| Operation Compensated -25 ... +60 °C | |
| Storage -50 ... +80 °C | |
| Ambient Air Temperature Compensation | No |
| Maximum Operating Altitude Permissible | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27 | 11 ms Pulse 25g |
| Resistance to Vibrations | Mounted on Mounting Plate: 5g 3 ... 150 Hz |
| Mounted on DIN-Rail: 4g 3 ... 150 Hz | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 1SAA963005-4502 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006539 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| ABB EcoSolutions | |
| End Of Life Disassembling Instructions | 1SAC200284H0001 |
| Environmental Product Declaration - EPD | 1SAC200253H0001 |
| Certificates and Declarations | |
| CB Certificate | 1SAA918002-2002 |
| CCC Certificate | 2024010307654703 |
| CQC Certificate | CQC2015010307760141 |
| Cut-off Current Characteristic | 1SAM400507F0001 |
| Declaration of Conformity - CCC | 2020980307003042 |
| Declaration of Conformity - CE | 1SAD101100-3409 |
| Declaration of Conformity - UKCA | 1SAD201100-3409 |
| EAC Certificate | 1SAA963000-2701 |
| IECEx Certificate | 1SAA918000-4001 |
| KC Certificate | 1SAA963001-1501 |
| UL Certificate | E137861-20150206 |
| E345003-20150206 | |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 64 mm |
| Package Level 1 Depth / Length | 177 mm |
| Package Level 1 Height | 140 mm |
| Package Level 1 Gross Weight | 1.1 kg |
| Package Level 1 EAN | 4013614536649 |
| Package Level 2 Units | carton 12 piece |
| Package Level 2 Width | 330 mm |
| Package Level 2 Depth / Length | 400 mm |
| Package Level 2 Height | 320 mm |
| Package Level 2 Gross Weight | 13 kg |
| Package Level 2 EAN | 4013614537837 |
| External Classifications and Standards | |
| Object Classification Code | F |
| ETIM 9 | EC000074 - Motor protection circuit-breaker |
| ETIM 10 | EC000074 - Motor protection circuit-breaker |
| eClass | V11.0 : 27370401 |
| UNSPSC | 39121521 |
| IDEA Granular Category Code (IGCC) | 4731 >> Manual Starters |
| E-Number (Finland) | 3708085 |
| E-Number (Norway) | 4364147 |
