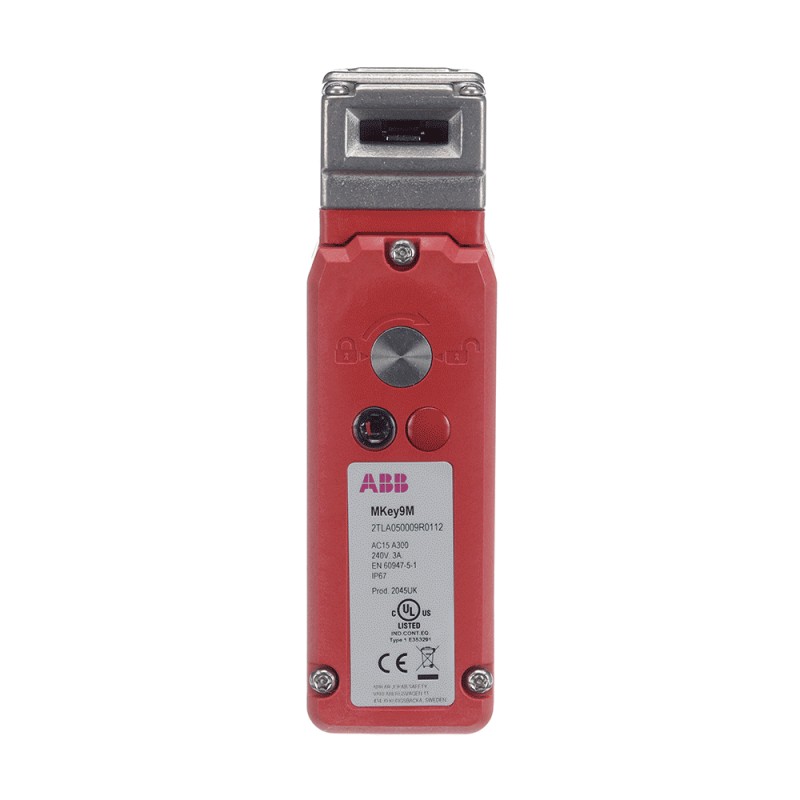

2TLA050009R0112 ABB MKey9M, Caps Lock.x Sole, M20, 24vdc, Act.Est
2TLA050009R0112
ABB
MKey9M, Caps Lock.x Sole, M20, 24vdc, Act.Est
MKey9M, Sole Block.x, M20, 24Vdc, Act.Est
MKey9M 24VDC Safety Sensors, Switches and Locks
Sensors > Position switch with guard locking
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8536500700 |
| Product Main Type | MKey |
| Product Name | Safety Sensors, Switches and Locks |
| Function | Safety mechanical switch for interlocking with locking (Process) |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172246M0201 |
| Wiring Diagram | 2TLC010025T0002 |
| Dimensions | |
| Product Net Depth / Length | 46 mm |
| Product Net Height | 160 mm |
| Product Net Width | 46 mm |
| Product Net Weight | 0.603 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 1 |
| 2 | |
| 3 | |
| B10d Value | Operations at 100 mA Load 2.5 million |
| Technical | |
| Number of Contacts NC | 1 |
| Number of Contacts NO | 3 |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -25 ... 40 °C |
| Degree of Protection | IP67 |
| Material | Plastic |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | None available |
| Declaration of Conformity - CE | 2TLC172101D0201 |
| Declaration of Conformity - UKCA | 2TLC010183D0201 |
| UL Certificate | 2TLC010020D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 60 mm |
| Package Level 1 Depth / Length | 200 mm |
| Package Level 1 Height | 65 mm |
| Package Level 1 Gross Weight | 0.69 kg |
| Package Level 1 EAN | 7350024466430 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270611 |
| ETIM 7 | EC002593 - Position switch with guard locking |
| ETIM 8 | EC002593 - Position switch with guard locking |
| ETIM 9 | EC002593 - Position switch with guard locking |
| IDEA Granular Category Code (IGCC) | 5166 >> Safety switch |
| UNSPSC | 39122205 |
| Object Classification Code | B |
| E-Number (Finland) | 2307350 |
| E-Number (Sweden) | 3860227 |
| Feature Name | Feature Value |
|---|---|
| With status indication (EF001602) | Yes |
| Suitable for safety functions (EF001597) | Yes |
| Guard locking force (EF007552) | 2000 N |
| With escape release (EF007172) | No |
| Type of guard locking (EF012608) | Quiescent current principle |
| With auxiliary release (EF011964) | No |
| Rated control supply voltage magnet drive DC (EF007070) | 24 V |
| Width sensor (EF007094) | 46 mm |
| Height of sensor (EF007283) | 160 mm |
| Length of sensor (EF007334) | 46 mm |
| Number of contacts as normally closed contact (EF008255) | 1 |
| Number of contacts as normally open contact (EF008256) | 3 |
| Type of switching contact (EF003591) | Slow-action switch |
| Rated operation current Ie at AC-15, 24 V (EF007084) | 3 A |
| Rated operation current Ie at AC-15, 125 V (EF007082) | 3 A |
| Rated operation current Ie at AC-15, 230 V (EF001385) | 3 A |
| Rated operation current Ie at DC-13, 24 V (EF007087) | 0.2 A |
| Construction type housing (EF004008) | Special construction |
| Housing material (EF001596) | Plastic |
| Coating housing (EF001601) | Uncoated |
| Type of interface (EF006977) | Other |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Other |
| Ambient temperature during operating (EF007515) | -25 °C |
| Degree of protection (IP) (EF005474) | IP67 |
| Degree of protection (NEMA) (EF011959) | 1 |
