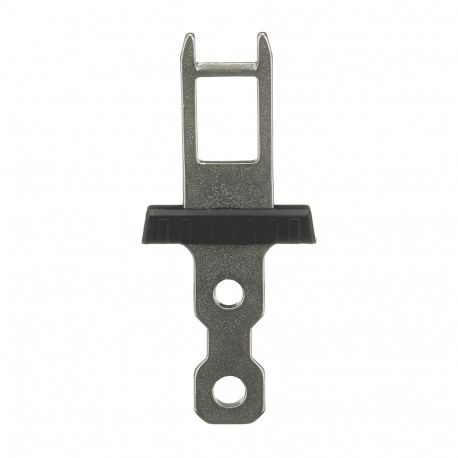

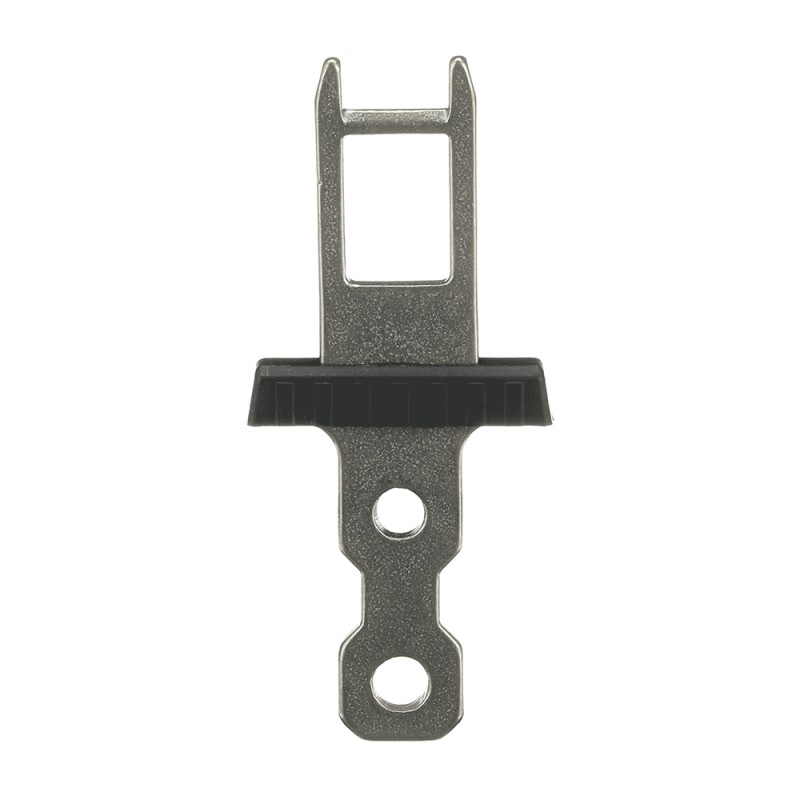

2TLA050040R0220 ABB MKey, Actuator Plane
2TLA050040R0220
ABB
MKey, Actuator Plane
MKey, Flat Actuator
MKey Key 3 Actuator
Sensors > Actuator for position switch with separate actuator
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8538909999 |
| Product Main Type | Key switch accessory |
| Product Name | Actuator |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010001C0202 |
| Data Sheet, Technical Information (Part 2) | 2TLC010120D0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Installation | |
| Instructions and Manuals | 2TLC172244M0201 |
| Dimensions | |
| Product Net Depth / Length | 8 mm |
| Product Net Height | 80 mm |
| Product Net Width | 36 mm |
| Product Net Weight | 0.036 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Technical | |
| Suitable For | MKey5 |
| MKey5+ | |
| MKey5 SSH | |
| MKey5+ SSH | |
| MKey5Z | |
| MKey5+Z | |
| MKey9M 24VDC | |
| MKey8M 24VDC | |
| MKey9 24VDC | |
| MKey9 24VDC No Key | |
| MKey8 24VDC | |
| MKey8ER 24VDC | |
| MKey8Z 24 VDC | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE Category | Product Not in WEEE Scope |
| Certificates and Declarations | |
| Declaration of Conformity - CCC | None available |
| Declaration of Conformity - CE | 2TLC172101D0201 |
| Declaration of Conformity - UKCA | 2TLC010183D0201 |
| Container Information | |
| Package Level 1 Units | bag 1 piece |
| Package Level 1 Width | 160 mm |
| Package Level 1 Depth / Length | 95 mm |
| Package Level 1 Height | 8 mm |
| Package Level 1 Gross Weight | 36 g |
| Package Level 1 EAN | 7350024478471 |
| External Classifications and Standards | |
| eClass | V11.0 : 27270605 |
| ETIM 7 | EC001487 - Actuator for position switch with separate actuator |
| ETIM 8 | EC001487 - Actuator for position switch with separate actuator |
| ETIM 9 | EC001487 - Actuator for position switch with separate actuator |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| Object Classification Code | R |
| Feature Name | Feature Value |
|---|---|
| Model (EF000010) | Standard actuator |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG SAFETY EN.pdf | 42 Mbytes |
|
| 2TLA050040R0220 2TLA050040R0220 EN_2TLA050040R0220.pdf | 70 Kbytes |
|
