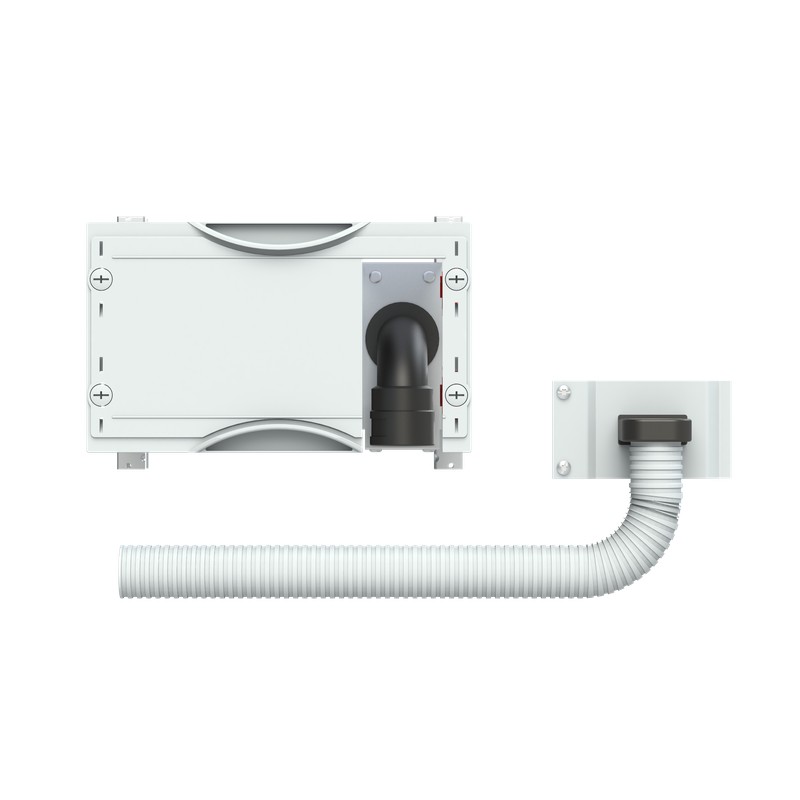

2CPX041817R9999 ABB MBV182 Set Door connection Module
2CPX041817R9999
ABB
MBV182 Set Door connection Module
MBV182 Door connection kit H150xA250
Cable connection module 150 mm x 250 mm x 225 mm , 0000 , 1
Energy distribution systems > Distributor assembly for device surface mounting
Boxes and cabinets
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Technical | |
|---|---|
| Enclosure Type | Interior fitting module |
| Enclosure Type of Height | 0000 |
| Meter Type | " |
| DIN Place Units | 12 |
| Meter Boards | 0 |
| Module Function | Cable connection module |
| Electrical | |
| Rated Operational Voltage | Maximum 400 V |
| Rated Insulation Voltage (Ui) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | 6 kV |
| Design | |
| RAL Number | RAL 7035 - Light Grey |
| Color | Light grey |
| Number of Modules | 12 |
| Material Compliance | |
| RoHS Declaration | 2CPC100019X0201 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Date | 20250916 |
| REACH Declaration | 2CPC100005X0201 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| REACH Date | 20240902 |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108468A3363 |
| WEEE Category | Product Not in WEEE Scope |
| Dimensions | |
| Product Net Width | 250 mm |
| Product Net Height | 150 mm |
| Product Net Depth / Length | 225 mm |
| Product Net Weight | 1.48 kg |
| Section Width | 1 |
| Built-In Depth (t2) | 225 mm |
| Engineering | |
| EPLAN Data | 9AAF623208_EPLAN |
| Ordering | |
| Package Level 1 Units | pack 1 piece |
| Package Level 1 Gross Weight | 1.48 kg |
| E-Number (Norway) | 2444456 |
| Certificates and Declarations | |
| Declaration of Conformity - CE | 2CPC100019X0201 |
| Installation | |
| Instructions and Manuals | 2CPC112290M5601 |
| Mounting Type | Fixed mounting |
| Popular Downloads | |
| Data Sheet, Technical Information | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| External Classifications and Standards | |
| ETIM 9 | EC001893 - Distributor assembly for device surface mounting |
| ETIM 10 | EC001893 - Distributor assembly for device surface mounting |
| eClass | V11.0 : 27400608 |
| Object Classification Code | U |
| Standards | DIN EN 61439-3 |
| DIN EN 61439-2 | |
| Feature Name | Feature Value |
|---|---|
| With mounting plate (EF000118) | No |
| With mounting rail (EF000252) | Yes |
| With cover (EF000361) | Yes |
| Built-in depth (EF000218) | 225 mm |
| Height (EF000040) | 150 mm |
| Width (EF000008) | 250 mm |
| Depth (EF000049) | 225 mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG ABB ELECTRICAL CONSUMER EN.pdf | 14 Mbytes |
|
