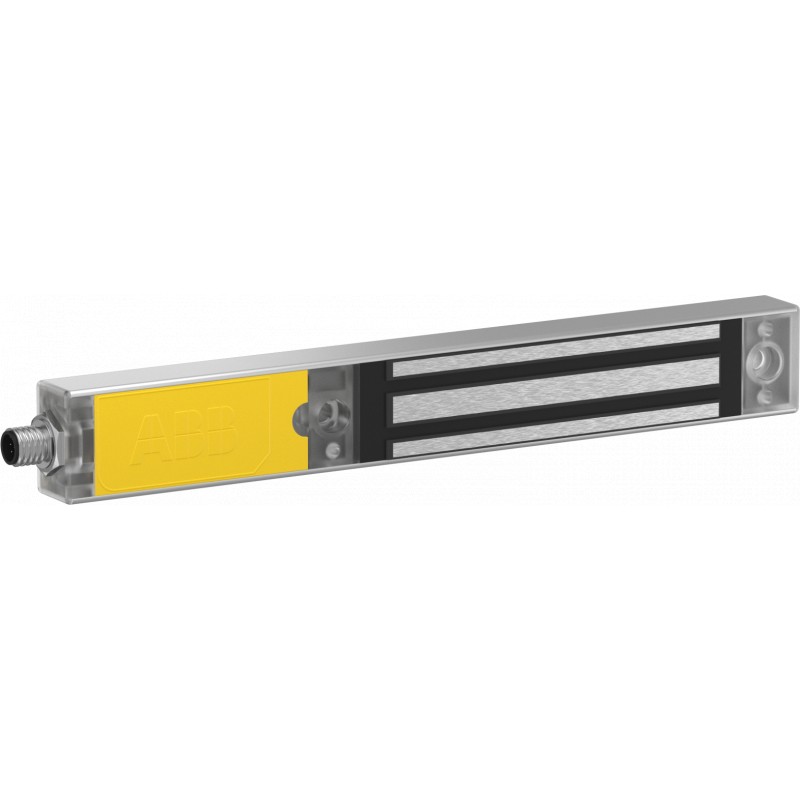

2TLA042022R4600 ABB Magne 4 OSSD-Info M12-8 connector
2TLA042022R4600
ABB
Magne 4 OSSD-Info M12-8 connector
Magne 4 OSSD-Info M12-8 poles
Magne 4 OSSD-Info Lock
Alarm installations, emergency call and signalling > Permanent magnet for door locking mechanism
Fences and rolling doors
Brand new product in its original packaging covered by the warranties and certifications provided by ABB
Best sellers
▲More info
▲| Ordering | |
|---|---|
| Minimum Order Quantity | 1 piece |
| Customs Tariff Number | 8505902999 |
| Product Main Type | Magne |
| Product Name | Lock |
| Function | Electromagnetic process lock - Anchor plate and Eva actuator to be ordered separately |
| Popular Downloads | |
| Data Sheet, Technical Information | 2TLC010045L0201 |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| EPLAN Data | 9AAC170165_EPLAN |
| Marketing Video | 2TLC010018N0201 |
| Installation | |
| Instructions and Manuals | 2TLC172315M0201 |
| Dimensions | |
| Product Net Depth / Length | 30 mm |
| Product Net Height | 274 mm |
| Product Net Width | 35 mm |
| Product Net Weight | 0.7 kg |
| CAD Dimensional Drawing | 2CDC001079B0201 |
| Safety Information | |
| Certification Agency | CE |
| TÜV Süd | |
| cULus | |
| Safety Category | 4 |
| Performance Level (PL) | Up to e |
| Safety Integrity Level (SIL) | 3 |
| Technical | |
| Communication Interface | OSSD |
| Connection Configuration | M12-8 male |
| Rated Control Supply Voltage (Us) | 24 V DC |
| Environmental | |
| Ambient Air Temperature | Operation -20 ... +50 °C |
| Degree of Protection | IP67 |
| Material | Housing: Anodized alunimum with some polycarbonate |
| Electromagnet: Iron with zinc-nickel coating | |
| Material Compliance | |
| Conflict Minerals Reporting Template (CMRT) | 9AKK108467A5658 |
| REACH Declaration | 2CMT2022-006480 |
| RoHS Declaration | 2CMT2022-006499 |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| Toxic Substances Control Act - TSCA | 2CMT2023-006522 |
| WEEE B2C / B2B | Business To Business |
| WEEE Category | 5. Small Equipment (No External Dimension More Than 50 cm) |
| Certificates and Declarations | |
| cUL Certificate | 2TLC010012D0201 |
| Declaration of Conformity - CE | 2TLC172262D0201 |
| Declaration of Conformity - UKCA | 2TLC010171D0201 |
| TÜV Certificate | 2TLC010013D0201 |
| Container Information | |
| Package Level 1 Units | box 1 piece |
| Package Level 1 Width | 26 mm |
| Package Level 1 Depth / Length | 290 mm |
| Package Level 1 Height | 73 mm |
| Package Level 1 Gross Weight | 1.075 kg |
| Package Level 1 EAN | 7350024481112 |
| External Classifications and Standards | |
| eClass | V11.0 : 27144124 |
| ETIM 7 | EC001769 - Permanent magnet for door locking mechanism |
| ETIM 8 | EC001769 - Permanent magnet for door locking mechanism |
| ETIM 9 | EC001769 - Holding magnet for door locking system |
| IDEA Granular Category Code (IGCC) | 5219 >> Switch part or accessory |
| UNSPSC | 39122221 |
| Object Classification Code | B |
| E-Number (Sweden) | 3831463 |
