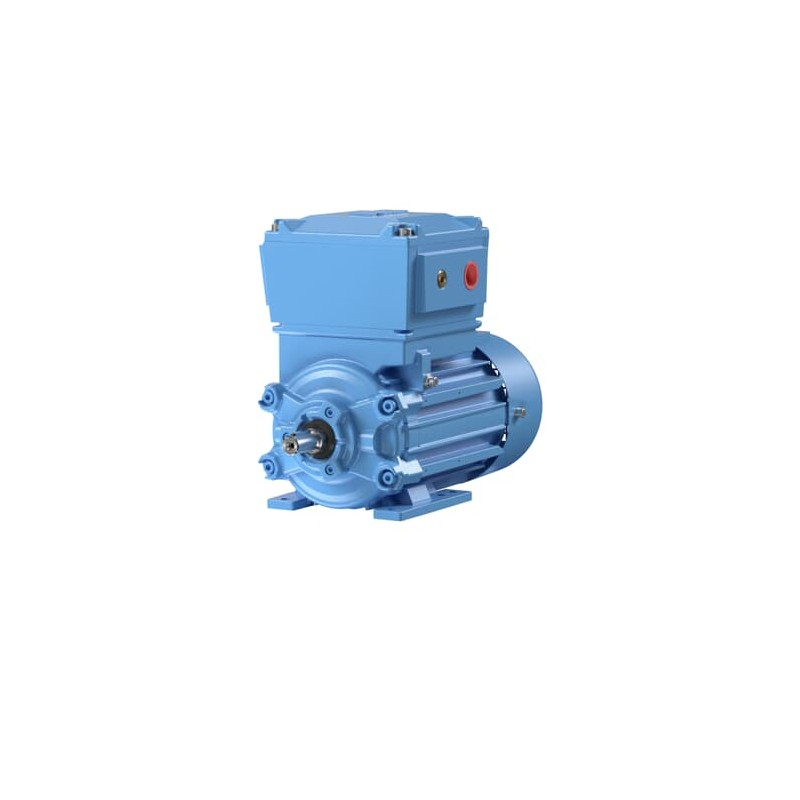

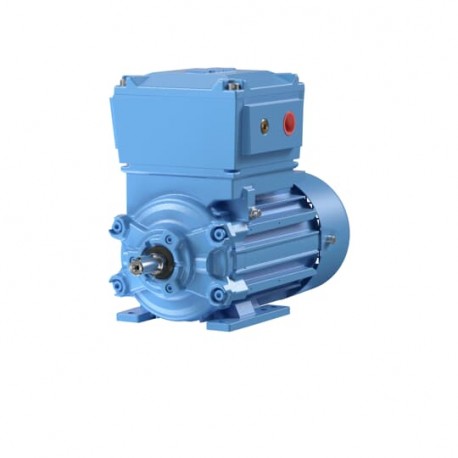

M3JP 80MD 4 3GJP082340-ADJ ABB Flameproof IE2 High Efficiency LV Motor

Additional Information

• ABB Type Designation:

  M3JP 80MD 4


• Altitude:

  1000 m


• Ambient Temperature:

  40 °C


• Bearing:

  6205-2Z/C3


• Bearing NDE:

  6204-2Z/C3


• Country of Origin:

  Finland (FI)


• Customs Tariff Number:

  85015100


• Direction of Rotation:

  Both sides


• Electrical Data:

  Conn	Temp Class	Freq	Voltage	Power	Speed	Current	Power Factor	Efficiency	Torque	IS/IN
  Y	T4	50 Hz	690 V	0.75 kW	1430 r/min	1.06 A	0.730	79.60 %	5.00 N·m	6.50
  D	T4	50 Hz	400 V	0.75 kW	1430 r/min	1.82 A	0.730	79.60 %	5.00 N·m	6.50
  D	T4	60 Hz	460 V	0.75 kW	1740 r/min	1.64 A	0.690	79.90 %	4.12 N·m	6.10

• EX-Protection:

  Exdb


• Frame Material:

  Cast Iron


• Frame Size:

  80


• Gas Group:

  IIB


• Gross Weight:

  43kg


• IC Class:

  IC411


• IE Class Data (50 Hz):

  IE Class IE2
  Full Load (100%) 79.6 %
  Partial Load (75%) 79.6 %
  Partial Load (50%) 76.6 %


• IE Class Data (60 Hz):

  IE Class IE2
  Full Load (100%) 79.9 %
  Partial Load (75%) 79.0 %
  Partial Load (50%) 75.3 %


• IM Class:

  IMB3 IM1001


• Insulation Class:

  ICLF


• Invoice Description:

  M3JP 80MD 4


• IP Class:

  IP55


• Made To Order:

  No


• Minimum Order Quantity:

  1 piece


• Number of Poles (High):

  4


• Order Multiple:

  1 piece


• Package Level 1 Units:

  0 carton


• Product Name:

  3-Phase squirrel cage motor


• Product Net Weight:

  40kg


• Product Type:

  3JP0__M3JP_IE2_Flameproof_Exd_motor


• Quote Only:

  No


• Replaced Product ID (OLD):

  3GJP082320-ADH


• SCIP:

  297e96db-dbee-43c1-ad2d-ddd583080bb8 Finland (FI)


• Selling Unit of Measure:

  piece


• Temperature Class Default:

  T4


• Terminator Box Location:

  D-End top


• Two Speed Motor:

  No


• Type of Duty:

  S1


• UNSPSC:

  26101100


• Voltage Code:

  D


• WEEE Category:

  5. Small Equipment (No External Dimension More Than 50 cm)
